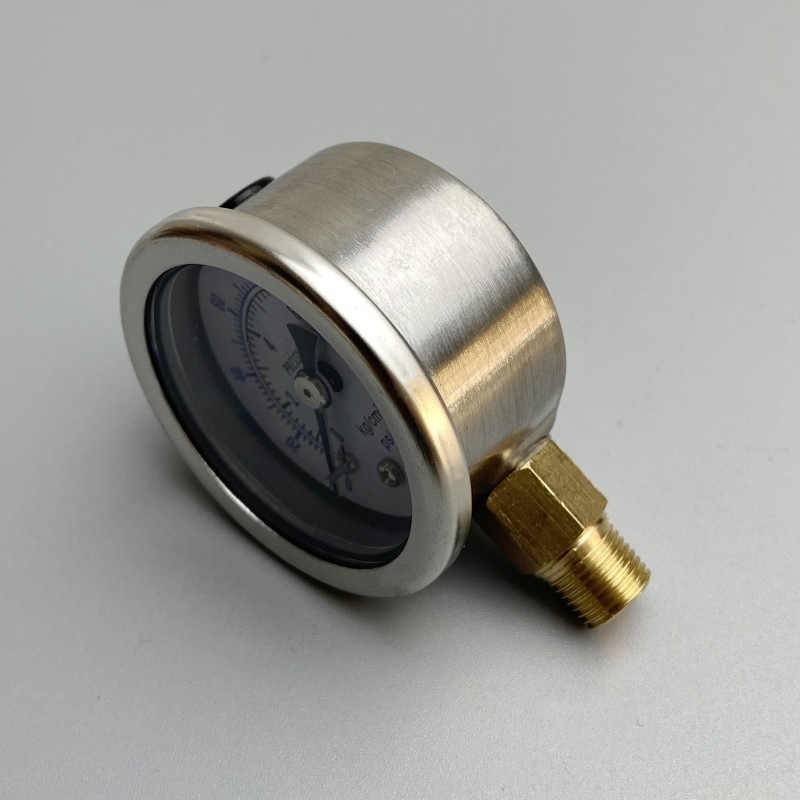

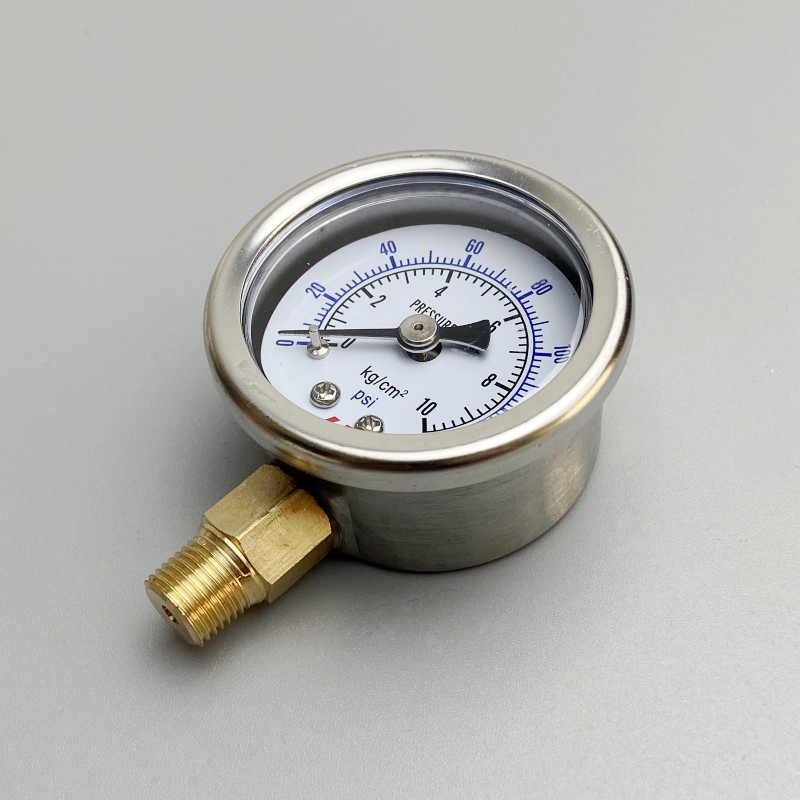

Y-40 Stainless Steel Case Dial 40mm Bar Air Pressure Gauge Manometer Bottom
Y-40 Stainless Steel Case Dial 40mm Bar Air Pressure Gauge Manometer Bottom
Y-40 Stainless Steel Case Dial 40mm Bar Air Pressure Gauge Manometer Bottom
Y-40 Stainless Steel Case Dial 40mm Bar Air Pressure Gauge Manometer Bottom
Y-40 Stainless Steel Case Dial 40mm Bar Air Pressure Gauge Manometer Bottom
1 / 5
Y-40 Stainless Steel Case Dial 40mm Bar Air Pressure Gauge Manometer Bottom
Y-40 Stainless Steel Case Dial 40mm Bar Air Pressure Gauge Manometer Bottom
Y-40 Stainless Steel Case Dial 40mm Bar Air Pressure Gauge Manometer Bottom
Y-40 Stainless Steel Case Dial 40mm Bar Air Pressure Gauge Manometer Bottom
Y-40 Stainless Steel Case Dial 40mm Bar Air Pressure Gauge Manometer Bottom

Y-40 Stainless Steel Case Dial 40mm Bar Air Pressure Gauge Manometer Bottom

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📊

Basic Information

Model NO.
Y-40 General Pressure Gauge
Measuring Range
Medium-pressure Gauge
Accuracy
1
Display
Pointer
Application
Industrial, Civil
Structure
Spring Pressure Gauge
Connection Type
Axial
Pressure Range
-0.1-0-100MPa
Fluid Media
Liquid, Gas and Oil
Protection
IP 66
Dial Sizes
40mm
Case Material
Iron & Black Color / Stainless Steel
📝

Product Description

Y-40 Stainless Steel Case Dial 40mm Bar Air Pressure Gauge Manometer

Vibration-Resistant Series Gauges are engineered for applications facing severe vibration, offering superior anti-vibration performance. The rugged, full-sealing design, filled with damping liquids, makes it particularly suitable for mechanical vibration and medium pulsation processes.

These gauges accurately measure the average value of pulsating gas and liquid pressure, preventing damage caused by strong medium pulses and environmental vibration to ensure reliable readings. Ideal for industries including petroleum, chemical processing, electric power, offshore mining, paper mills, and water treatment.

Measurement Principle

The gauge consists of a pressure guiding system (connections, measuring spring), gear drive system, indication device (pointer and dial), and casing. When the spring tube undergoes elastic deformation under pressure, the mechanism amplifies this movement, and the pointer indicates the value on the dial.
Pressure Gauge View 1

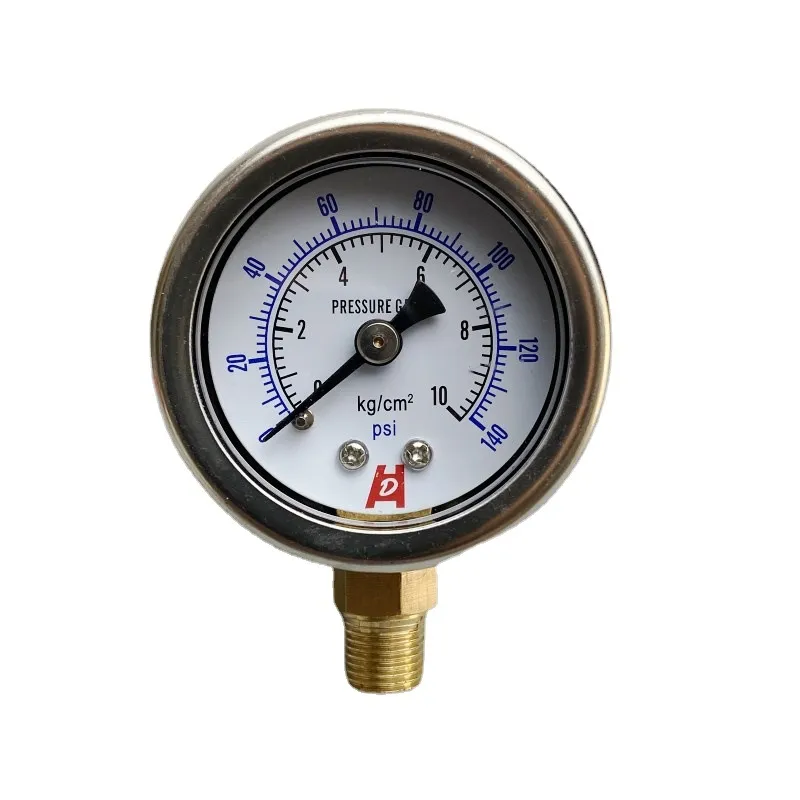

Pressure Gauge View 2

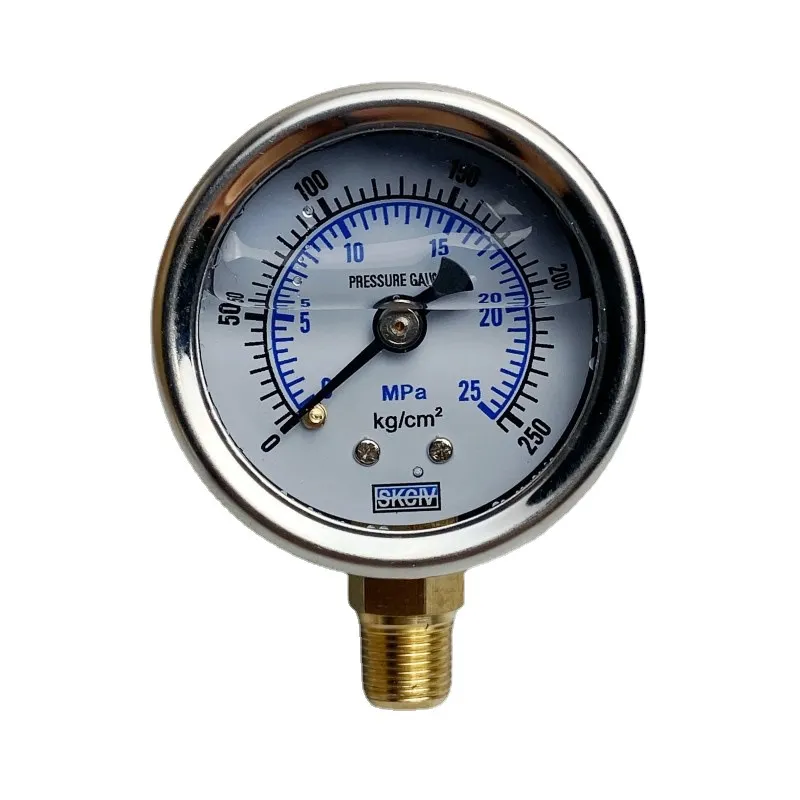

Pressure Gauge View 3

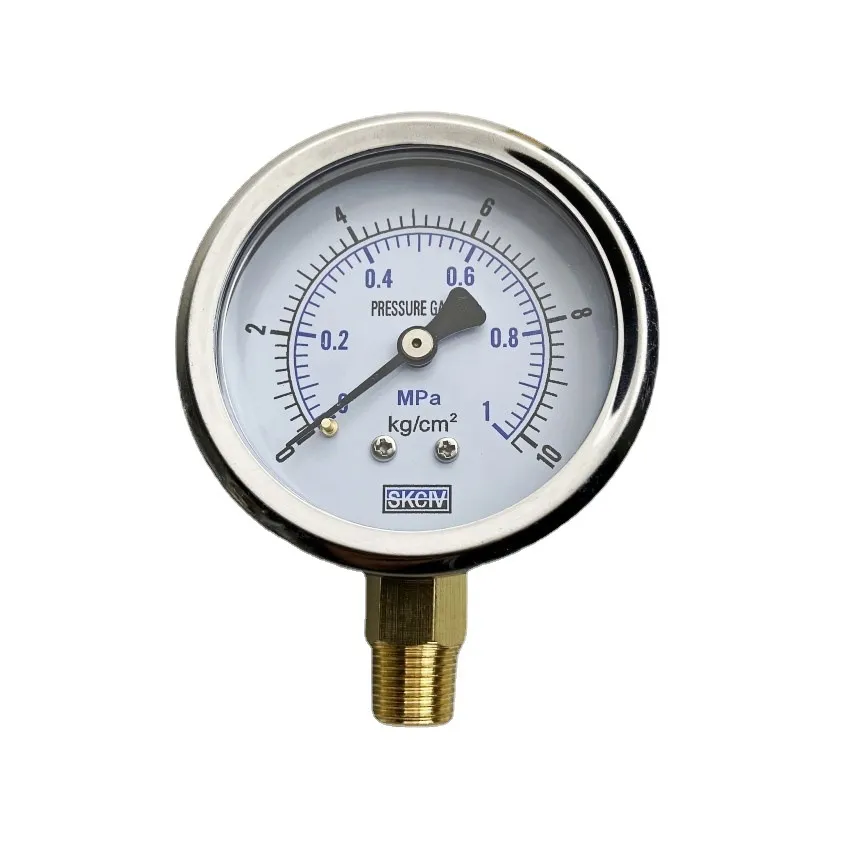

Pressure Gauge View 4
⚙️

Technical Specifications

Component Materials

Parts Material
Measuring Element316 Stainless Steel C-Type Bourdon Tube
Connection (Wetted Part)316 Stainless Steel
Case304 Stainless Steel
LensInstrument Glass / Organic Safety Glass
PointerBlack Finished Aluminum
Fill LiquidGlycerin, Silicone Oil

Filling Liquids Index

Liquids Filled Refractive Index(25ºC) Flash Point (ºC) Expansion Rate Flow Point (ºC)
Silicone Oil (50cs)1.4023000.00096-50
Silicone Oil (100cs)1.4033000.00095-50
Glycerol Oil (99.5%)1.4741600.00061520
📸

Detailed Product Photos

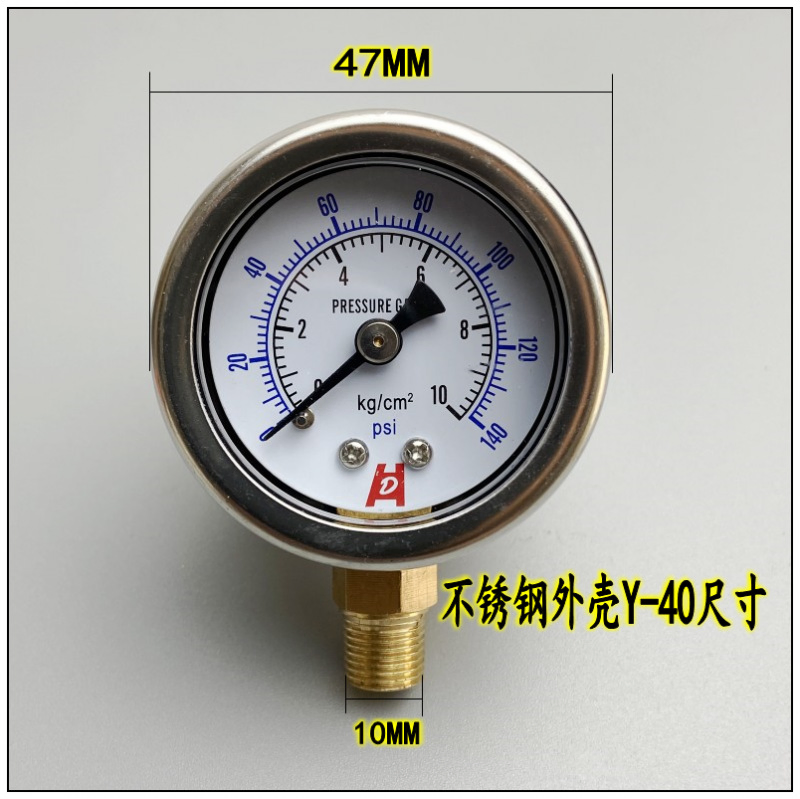

01. 40mm Plastic Case - Bottom Connection

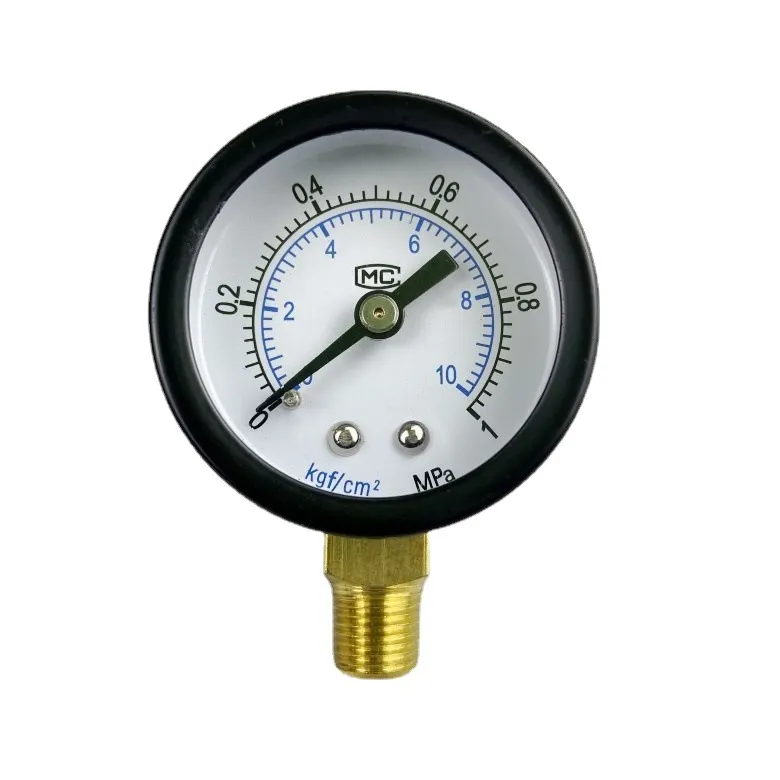

Plastic Case Bottom

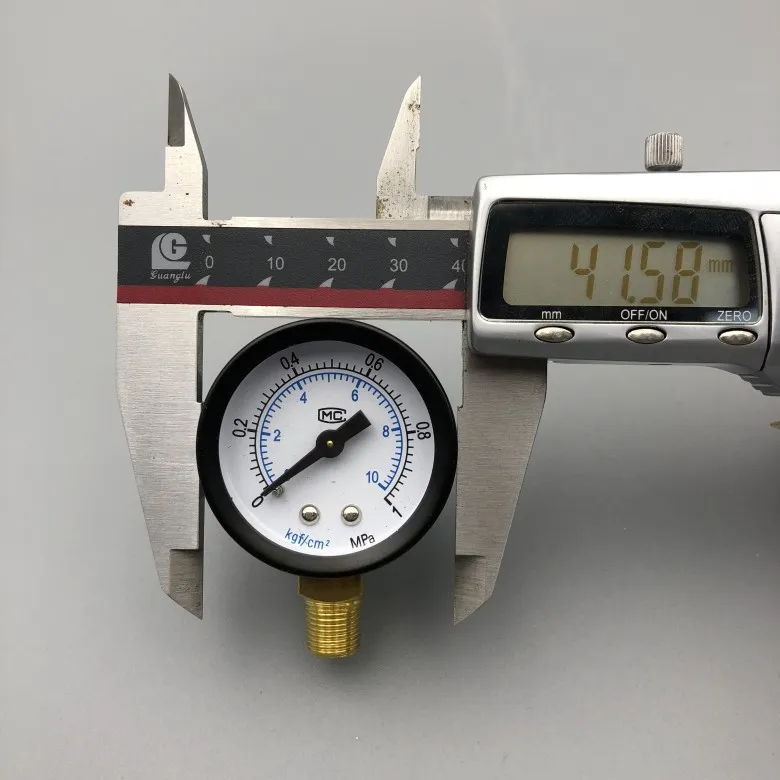

Plastic Case Detail

02. 40mm Stainless Steel Case - Bottom Connection

SS Case Bottom

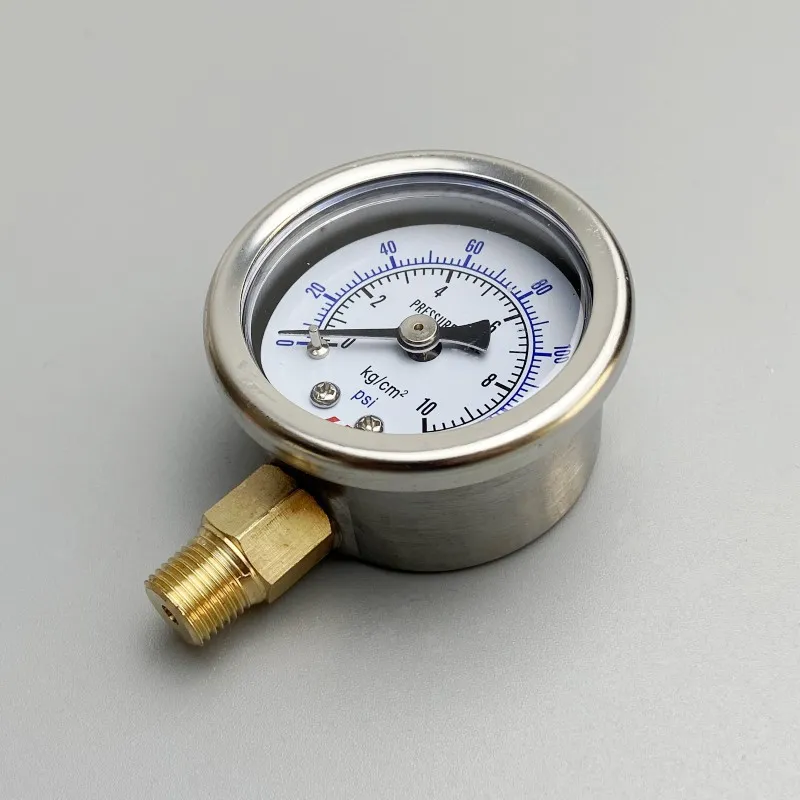

SS Case Detail

03. 40mm Plastic Case - Back Connection

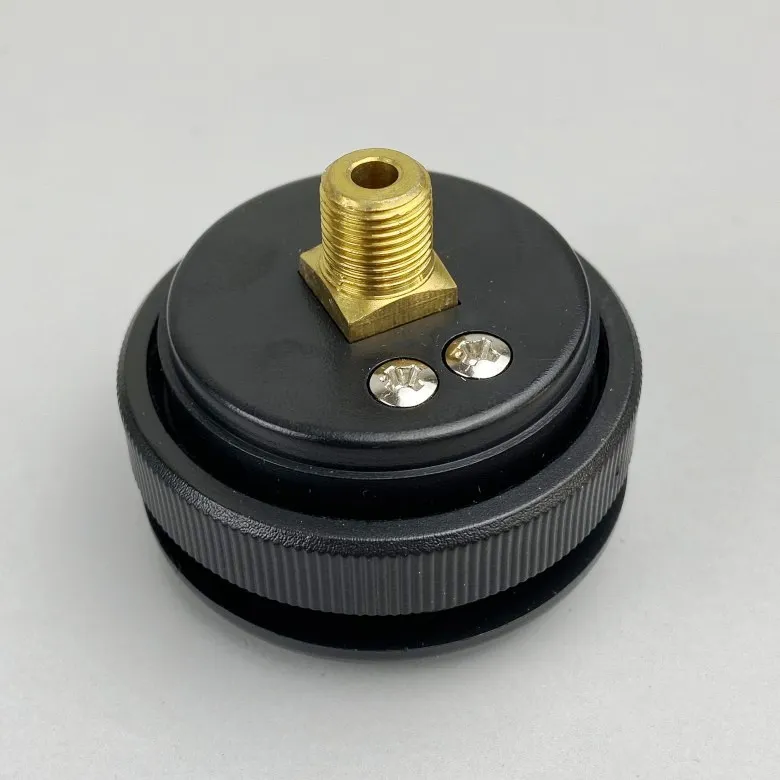

Plastic Back Connection

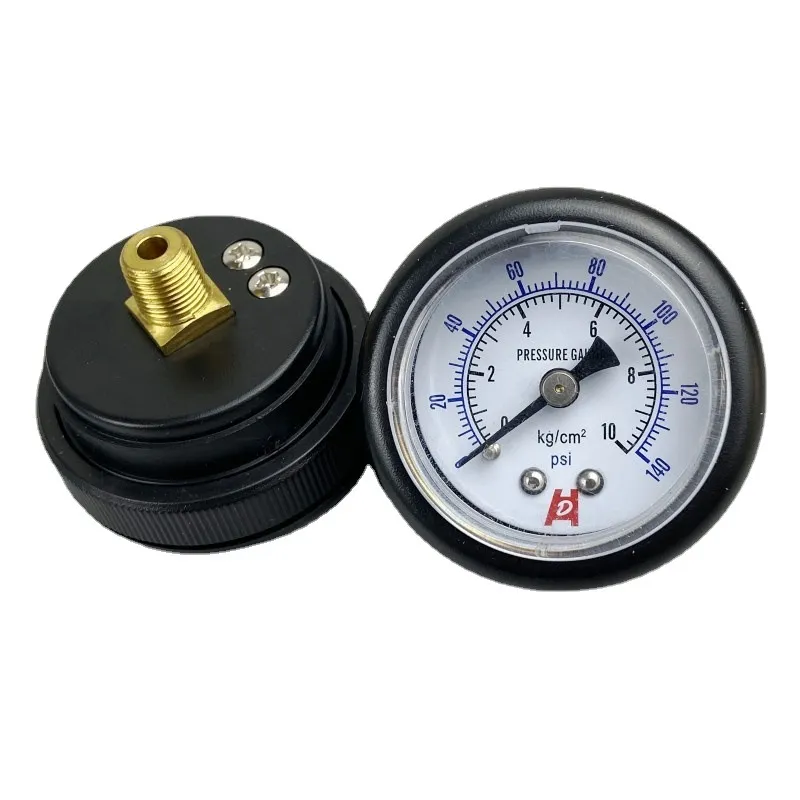

Back Connection Detail

04. 40mm Stainless Steel Case - Back Connection

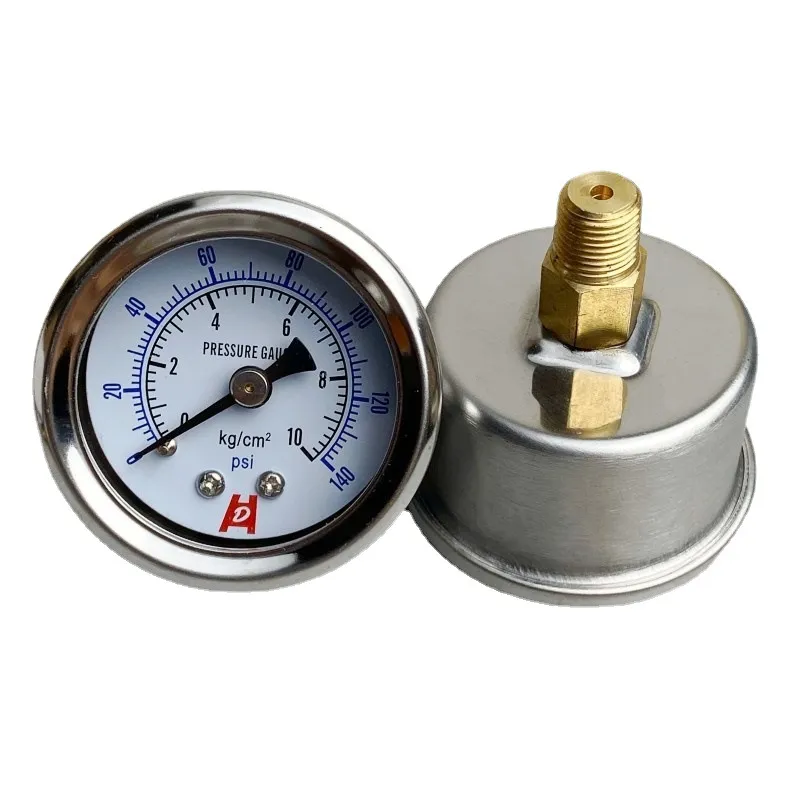

SS Back Connection

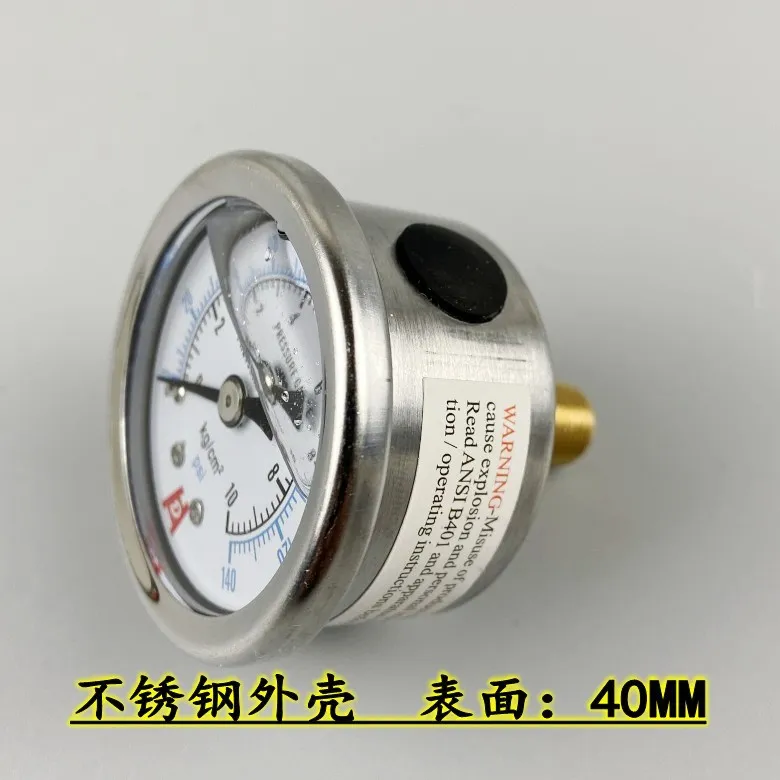

SS Back Connection Detail

05. Back Connection With Front Flange

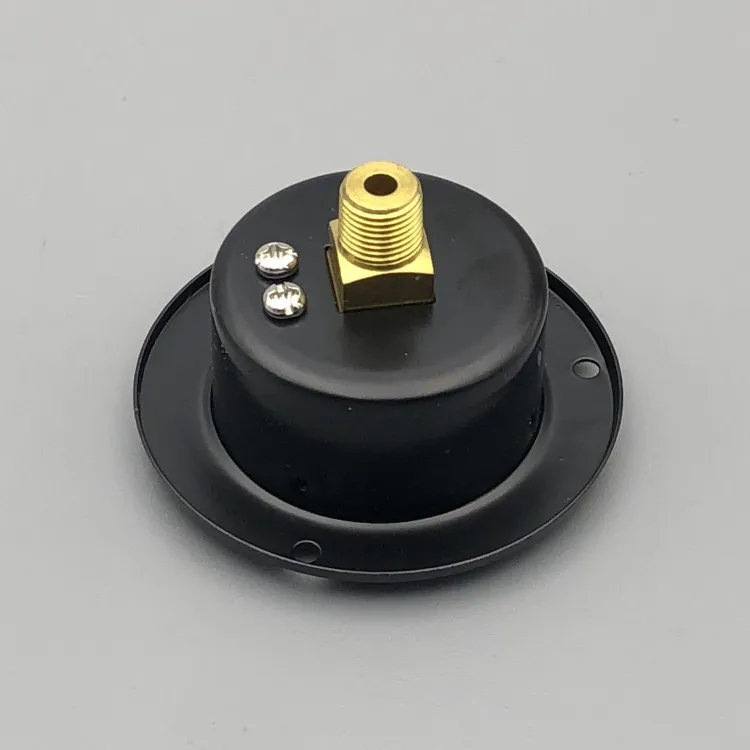

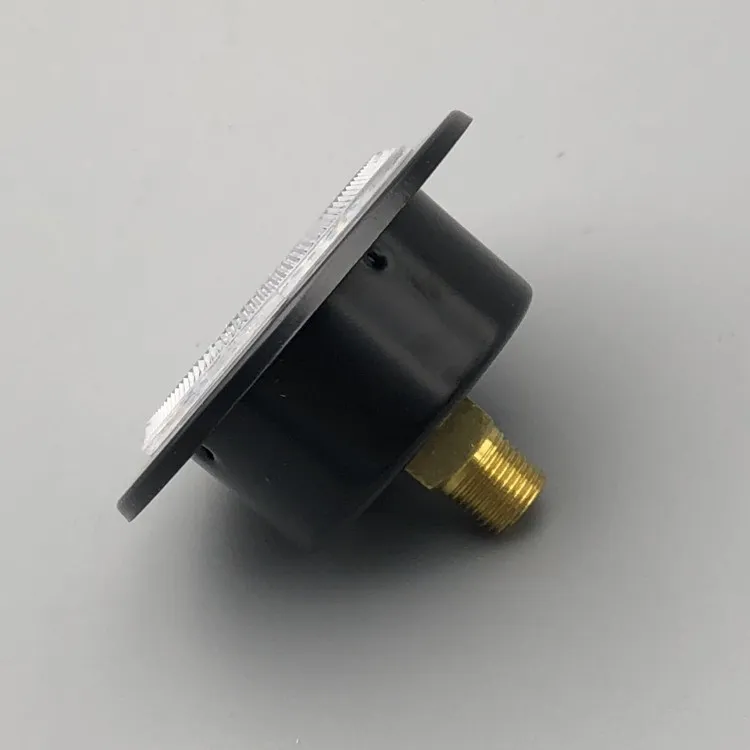

Front Flange View 1
Front Flange View 2

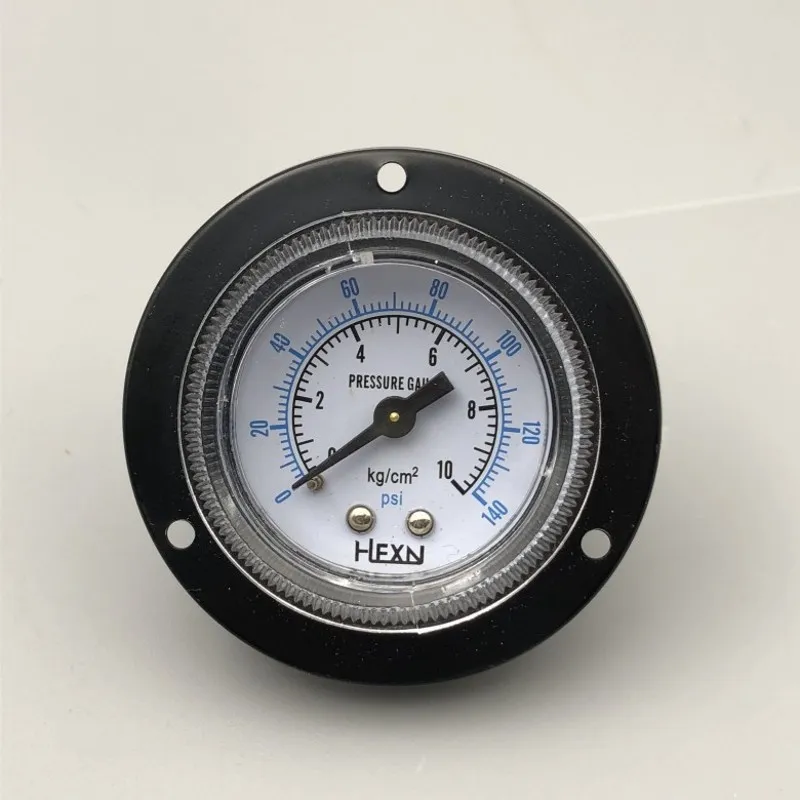

Front Flange View 3

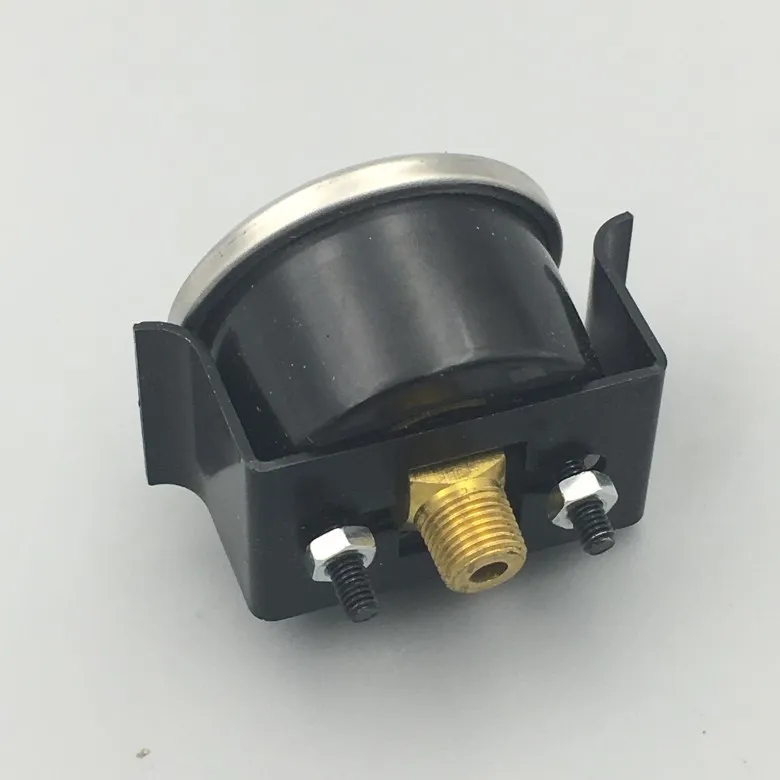

06. Back Connection With U-Type Bracket

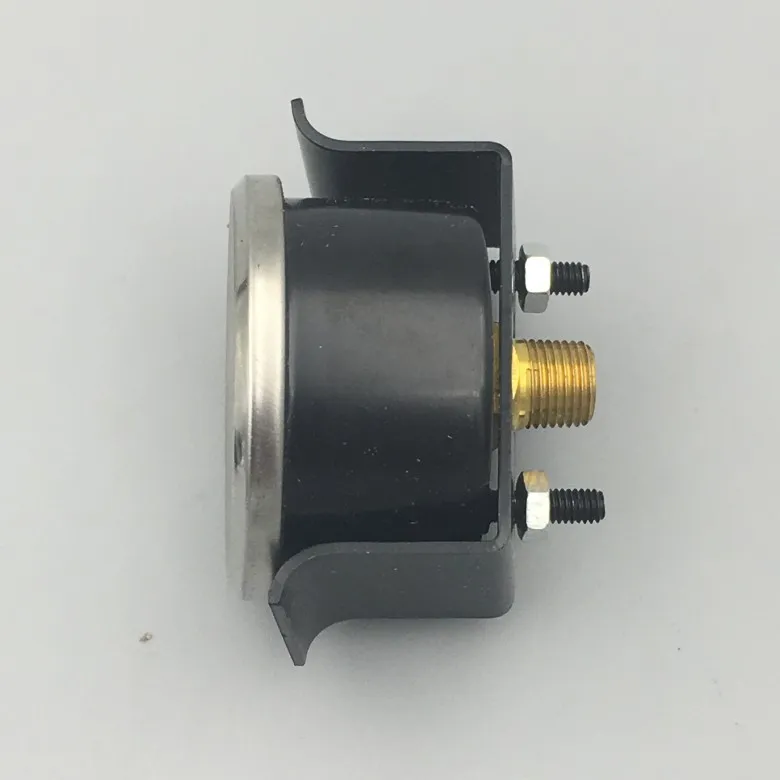

U-Bracket View 1
U-Bracket View 2

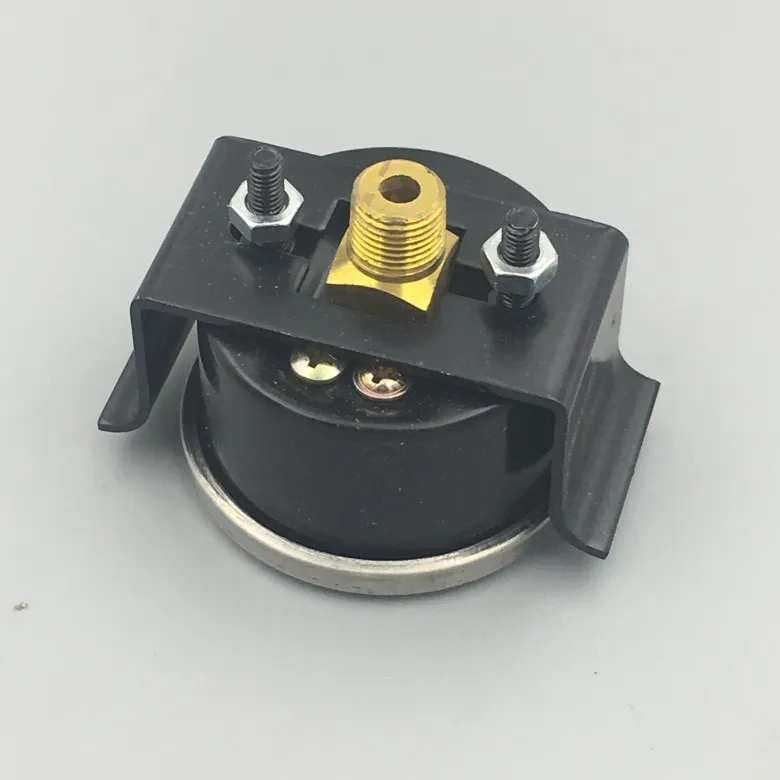

U-Bracket View 3
📋

Selection Guide

To provide the most accurate solution, please specify the following requirements:
  • Type of Fluid: Liquid or Gas?
  • Pressure Range: Measuring range and preferred scale.
  • Dial Size: Options include φ40, φ50, φ60, φ100, φ150 mm.
  • Mounting: Bottom connection or Back connection?
  • Thread Size: e.g., 1/8" NPT, 1/4" NPT, M14*1.5, etc.
  • Options: Stainless steel front or rear flange?
🏢

Professional Profile

As a high-tech enterprise committed to the research, development, and manufacture of industrial instrumentation, we specialize in flow, level, pressure, and temperature instruments. Our facility utilizes advanced technology to produce international-standard gear flow meters, electromagnetic meters, vortex sensors, and pressure manometers. With well-equipped testing facilities and strong technical force, our products are widely utilized in chemical, metallurgical, power supply, and water treatment industries globally.
❓

Frequently Asked Questions

What is the advantage of a liquid-filled pressure gauge?
Liquid filling (Glycerin or Silicone Oil) dampens the effects of vibration and pressure spikes, lubricating the movement and extending the service life of the gauge in harsh environments.
What is the temperature range for these gauges?
With Glycerin filling, the ambient temperature range is -25°C to 70°C. For dry (non-filled) gauges, the range is -40°C to 70°C.
Are the internal parts resistant to corrosion?
Yes, the wetted parts, including the connection and the Bourdon tube, are made of high-quality 316 Stainless Steel, providing excellent resistance to many corrosive media.
What mounting directions are available for the Y-40 series?
We offer Bottom Connection (Radial), Back Connection (Axial), as well as variations with front/rear flanges or U-type brackets for panel mounting.
What is the protection class of these manometers?
The gauges are rated at IP66, meaning they are dust-tight and protected against powerful water jets, making them suitable for outdoor and industrial use.
Can I get a custom thread size?
Standard sizes include 1/8", 1/4", and 1/2" in NPT or PT, as well as metric M10, M14, and M20. Other custom threads are available upon request.
