🛠️ Product Overview & Solutions

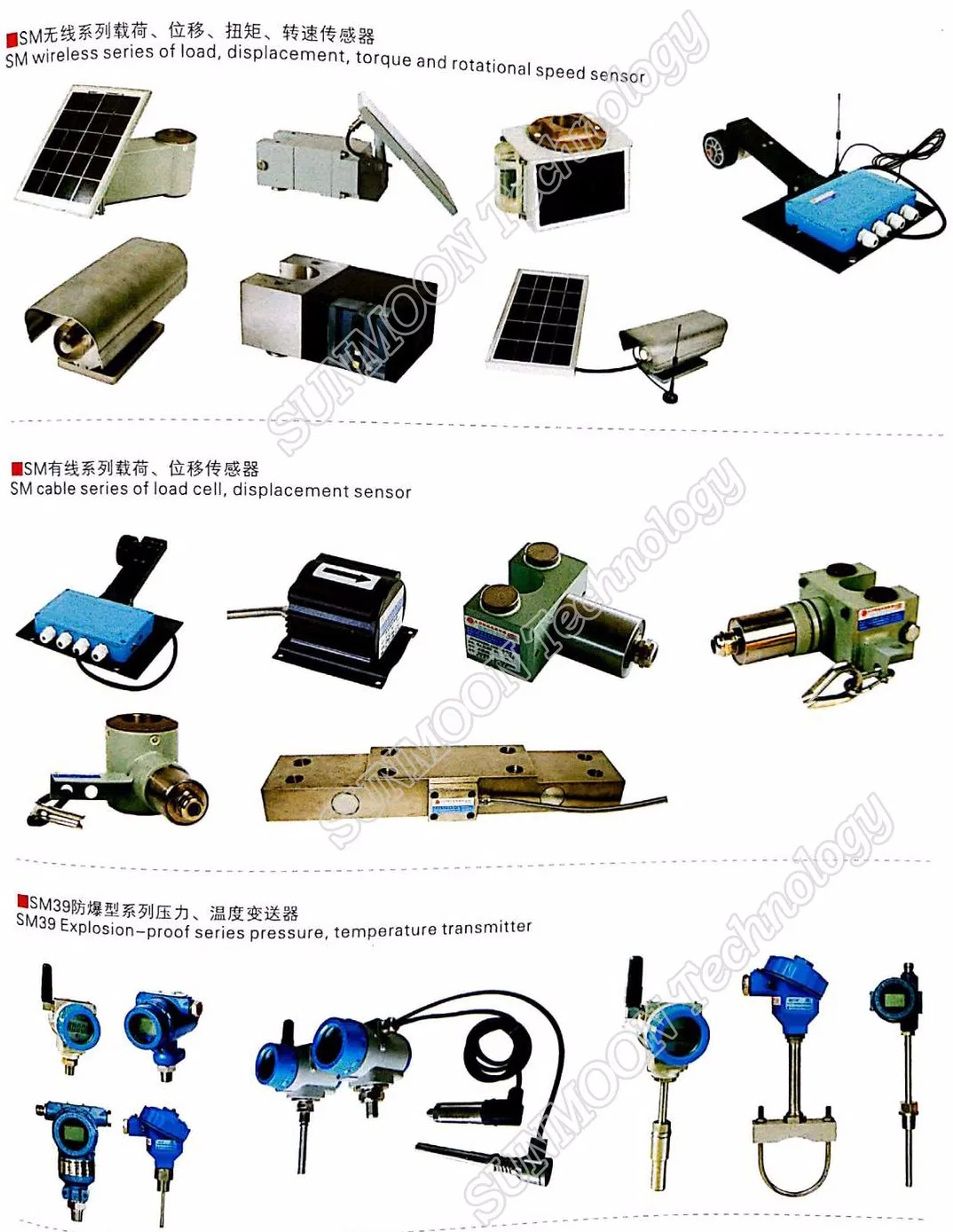

Provided indicator diagram load sensors, drilling-log special sensors, salvage panel meters, and drawwork sensors for oilfields since several decades.
Dedicated research and development in oilwell production data collection and remote measurement control systems.

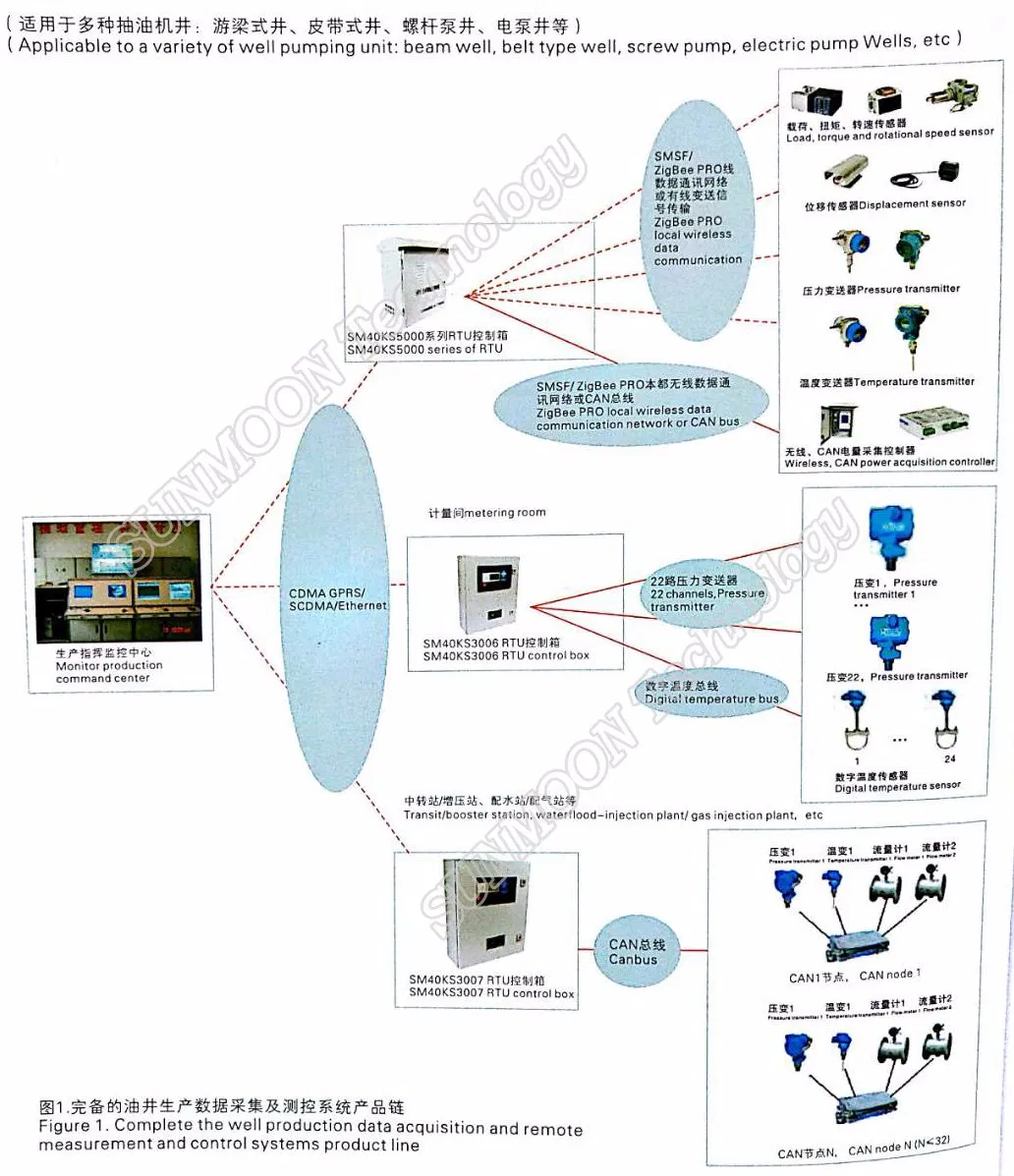

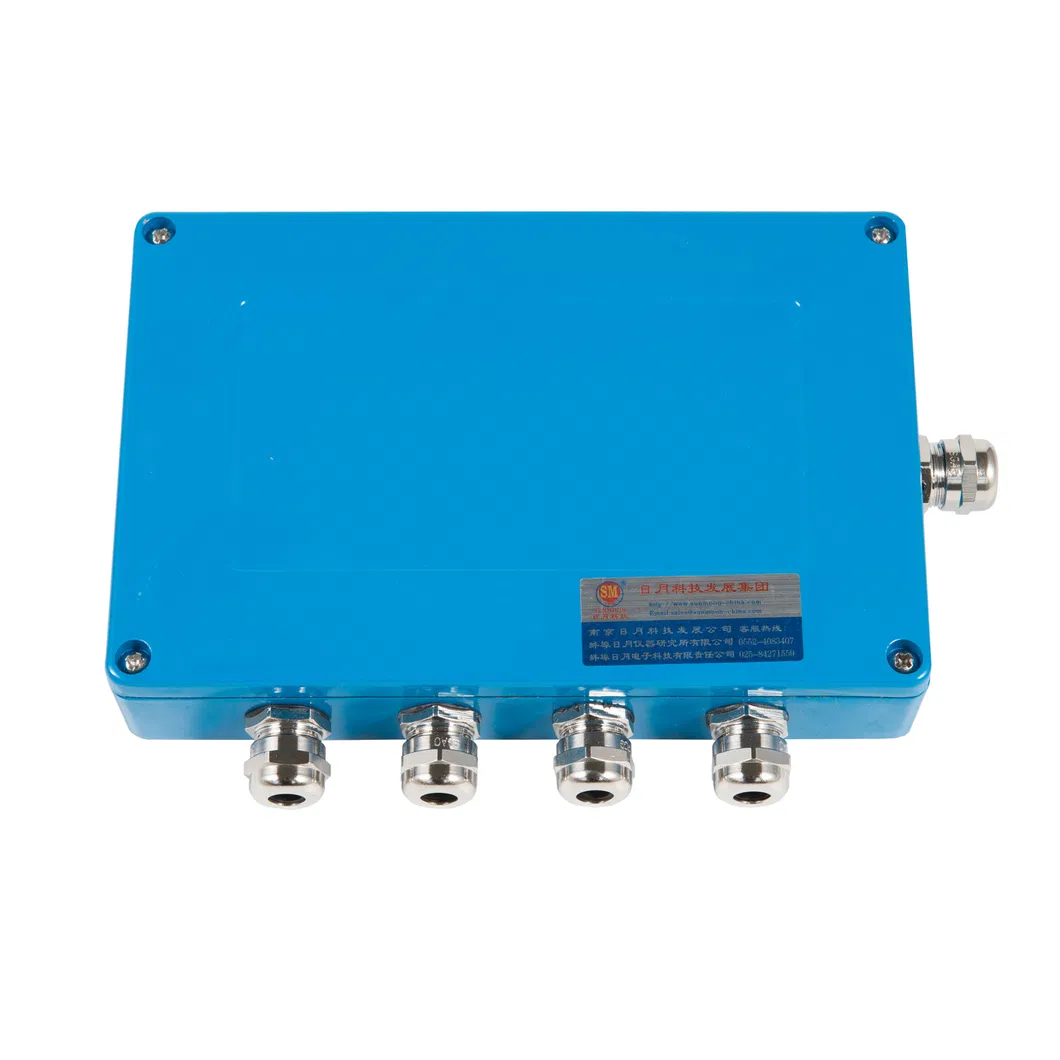

Comprehensive product solutions serving single well data collection, metering stations, transfer stations, and water/gas distribution stations.

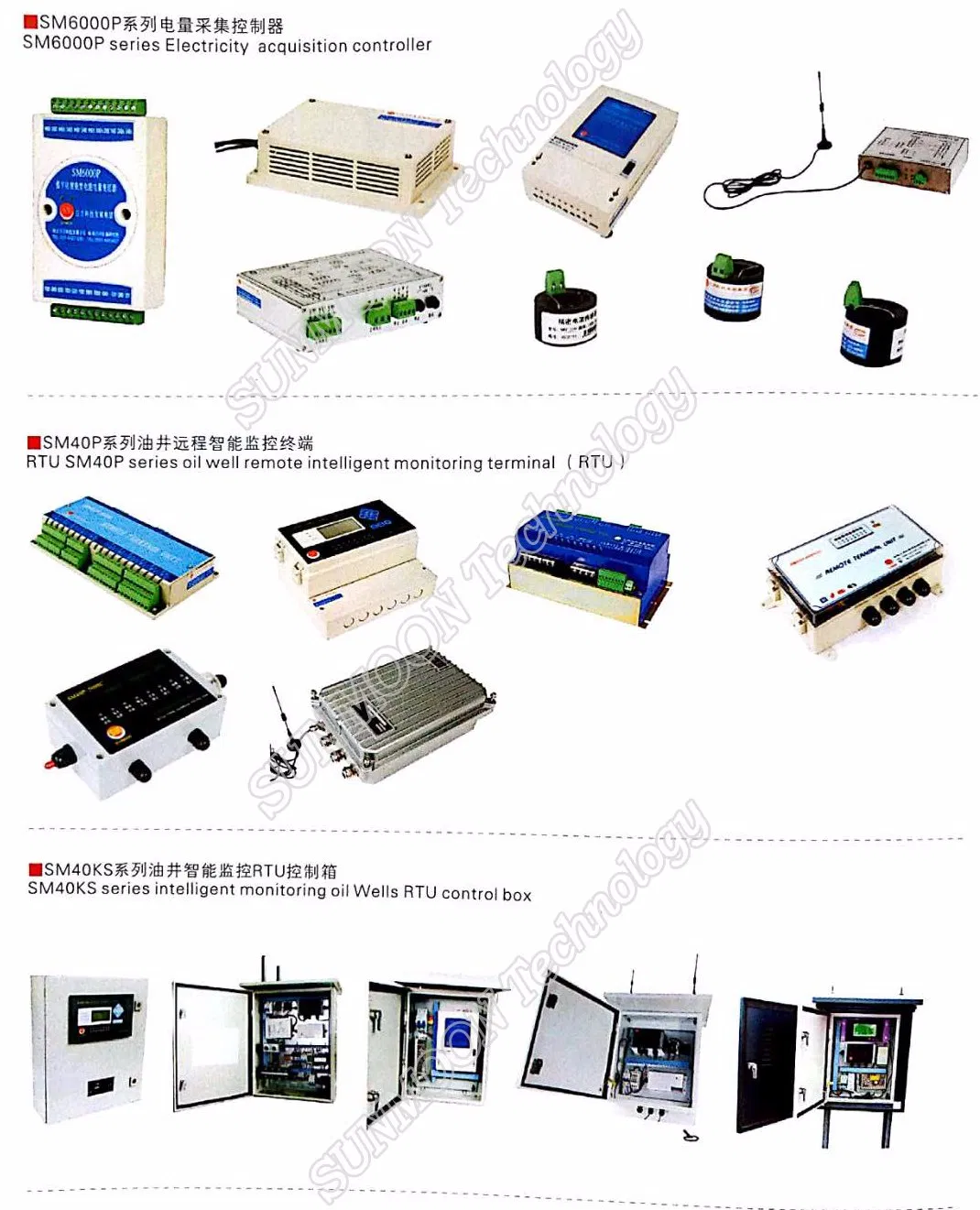

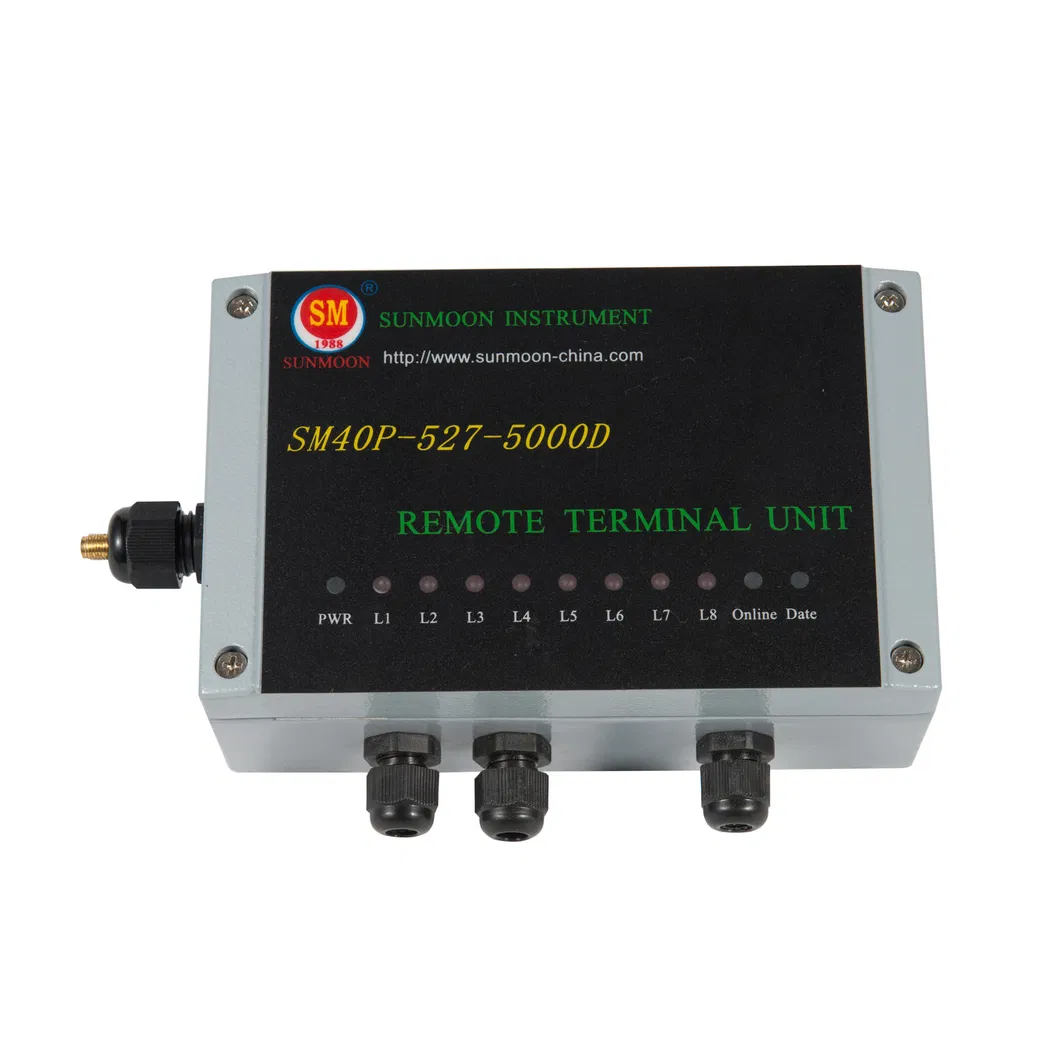

Mature products passed long-term application tests: load, displacement, temperature, pressure, electric energy sensors, and RTU.
Standardized interfaces compatible with SCADA, DCS, and other network systems for data sharing and networking application.
Professional design team providing customized industrial automation measurement and control matching technology solutions.

Professional Technical Service: Extensive experience in indicator production and original on-line check schemes for indicator diagram sensors, ensuring accuracy for long-term operations.

⚙️ 1. System Composition

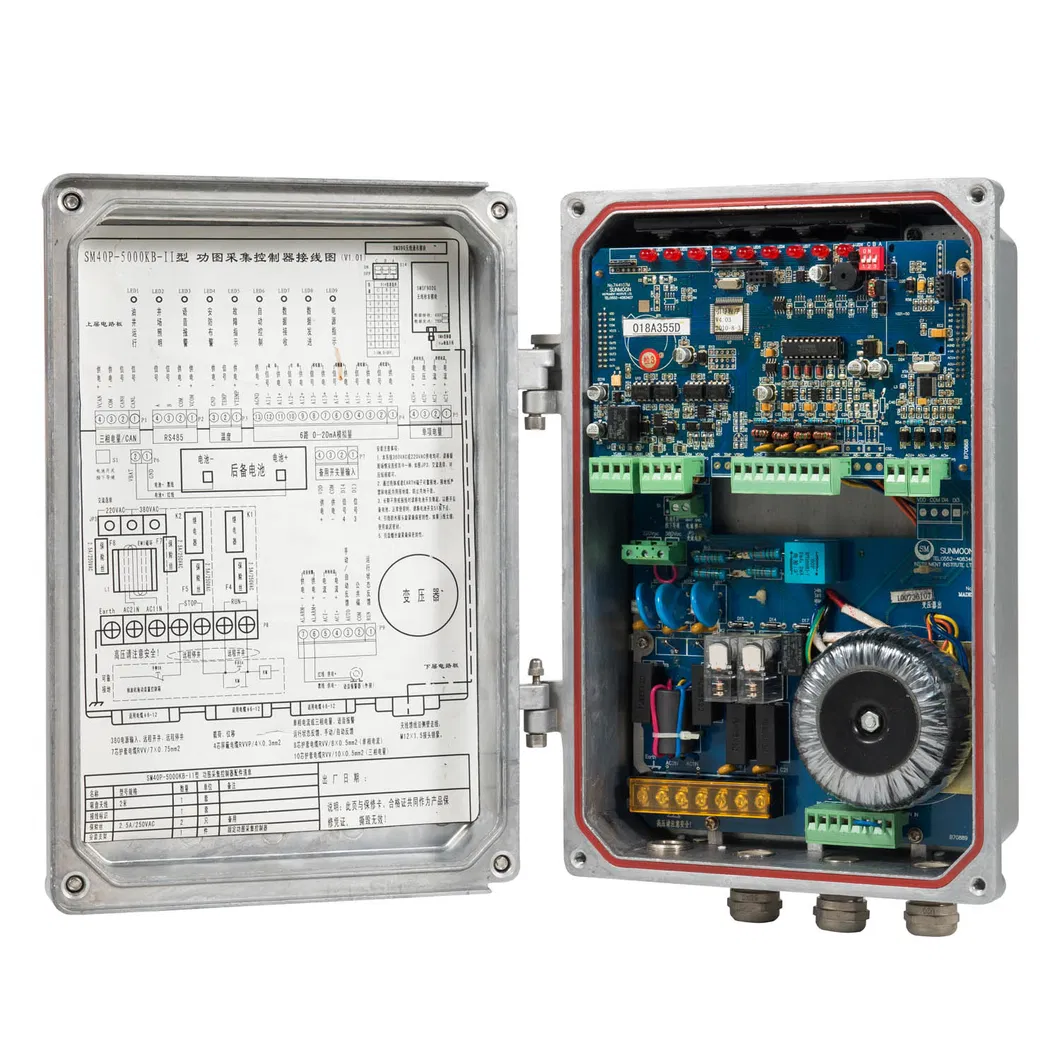

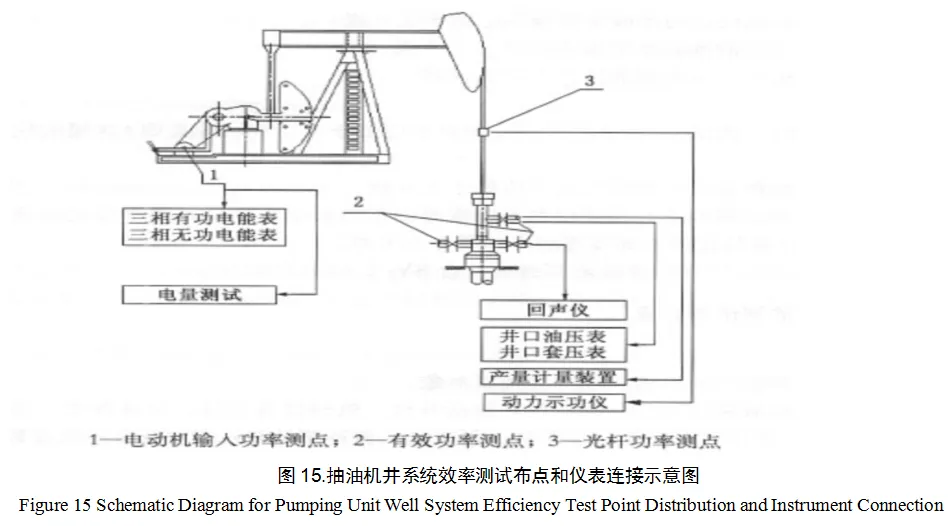

The multi-parameter test diagnostic apparatus for mechanical extraction system efficiency utilizes a high-performance embedded industrial computer and a patented wireless test scheme. It accurately monitors operating power, power factor, current, voltage, load, displacement, liquid level, and pressure.

The system generates current diagrams, power diagrams, indicator diagrams, and other curve diagrams to analyze the efficiency of all subsystems, providing channels for energy saving and consumption reduction.

📏 2. System Measurement

Load:

0 ~ 150 kN (0.5% F.S)

Displacement:

0 ~ 8 m (0.5% F.S)

Current:

0 ~ 100 A (0.5% F.S)

Voltage:

0 ~ 800 V (0.5% F.S)

Fluid Level:

0 ~ 3000 m (0.5% F.S)

📋 3. System Configuration

No.	Designation	Model	Quantity	Function

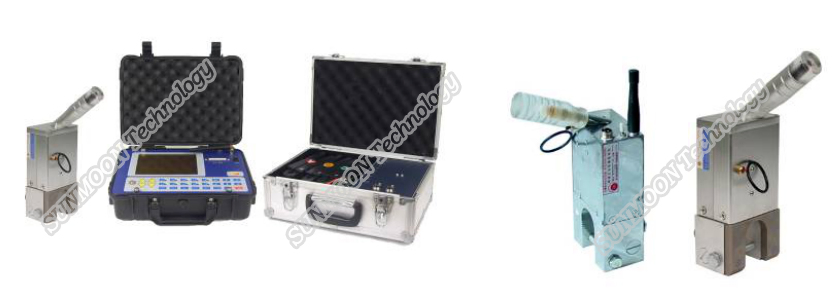

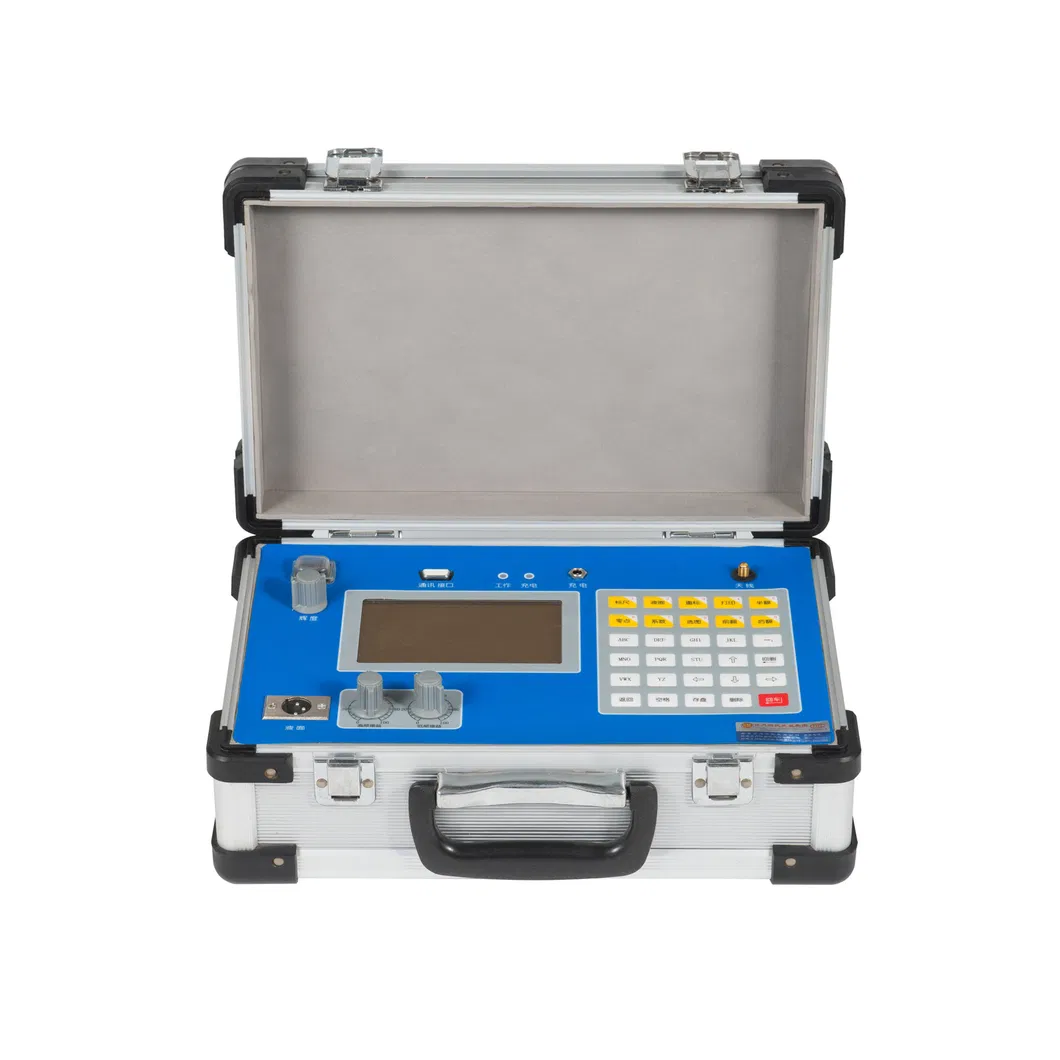

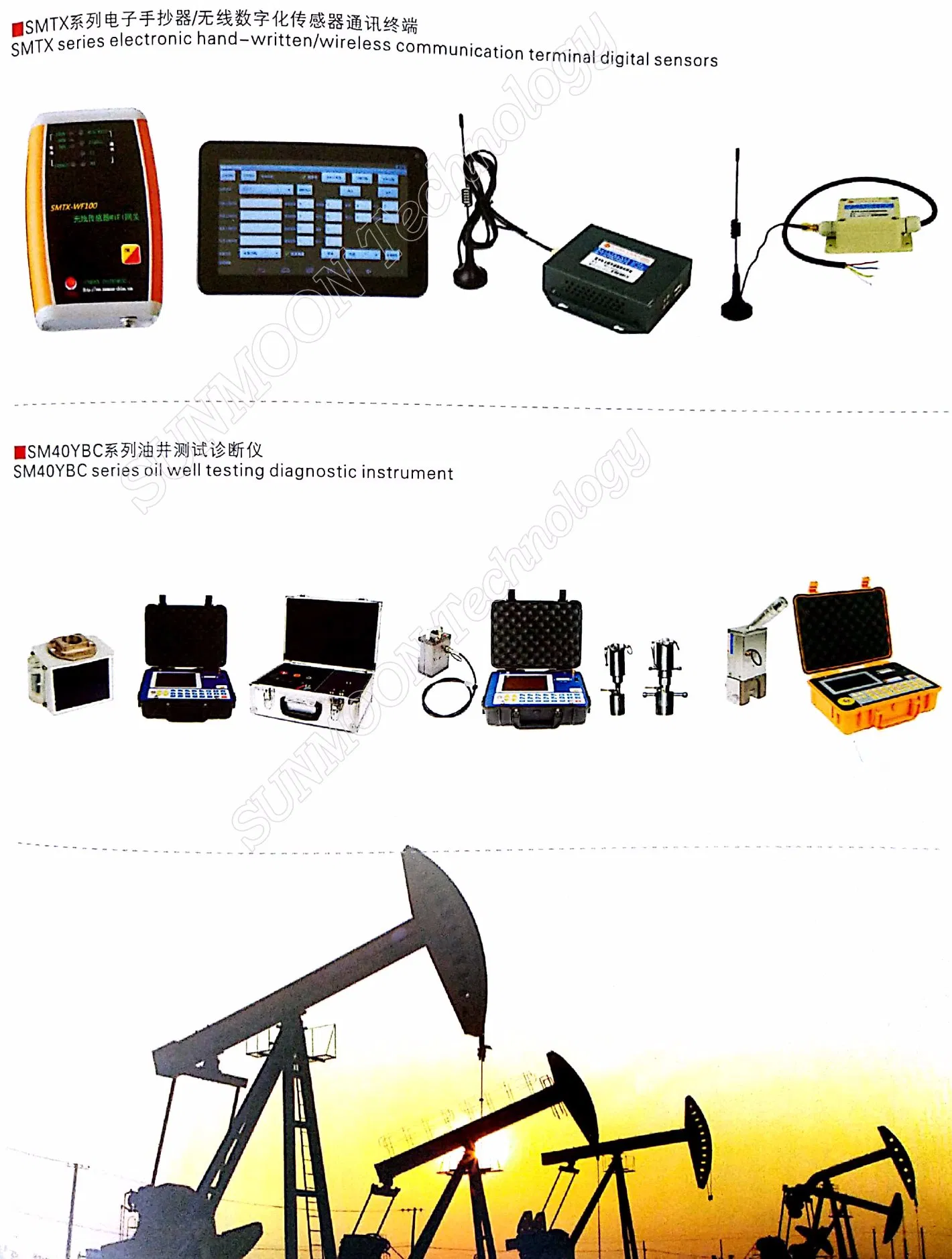

1	Multi-parameter diagnostic apparatus	SM40YBC-09	1	System efficiency test diagnosis
2	Gas bottle type wellhead connector	SMJ-07	1	Liquid level test device
3	Wireless hydraulic load displacement sensor	SMD33WX	1	Indicator diagram testing device 1
4	Wireless digital load displacement sensor	SMD35WX	1	Indicator diagram testing device 2
5	Wireless digital displacement transmitter	SMD38WX	1	Indicator diagram testing device 3

Frequently Asked Questions

What are the core functions of the SM40YBC-09 system?

It is designed for multi-parameter test diagnostics of mechanical extraction systems, measuring power, load, displacement, and liquid levels to analyze overall system efficiency.

Is the system compatible with third-party networks?

Yes, it features standardized interfaces that can connect to SCADA, DCS, and other network systems for seamless data sharing and management.

What is the maximum measurement depth for the working fluid level?

The system can accurately measure working fluid levels ranging from 0 to 3000 meters with an accuracy of 0.5% F.S.

Can I request a customized solution for specific oilfield requirements?

Absolutely. There is a professional design team available to provide customized sensor and measurement equipment matching the continuous improvement of oil production technology.

What kind of diagrams can the system generate for analysis?

The system can generate current diagrams, power diagrams, power factor diagrams, liquid level diagrams, and indicator diagrams based on real-time test results.

Does the system use wireless technology for testing?

Yes, it utilizes a patented wireless test scheme to collect data from various sensors, reducing the need for complex cabling on-site.
