Sy-I800 Portable Negative Pressure Wound Therapy System Npwt with 8L/Min 7 - Inch Touch Screen

1 / 5

Sy-I800 Portable Negative Pressure Wound Therapy System Npwt with 8L/Min 7 - Inch Touch Screen

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

Sy-I800

Product Name

Negative Pressure Wound Therapy

Free Air Flow Rate

≥8 L/Min

Volume Range

-25 to -500 Mmhg

Available Modes

Continuous, Intermittent and DPC

Dimension

220X 260X200 mm

Weight

4.33kg

Battery

6 Hours, 5200 mAh/7.4V

Canister

500 Ml

Product Overview

Sy-I800 Portable Negative Pressure Wound Therapy System NPWT

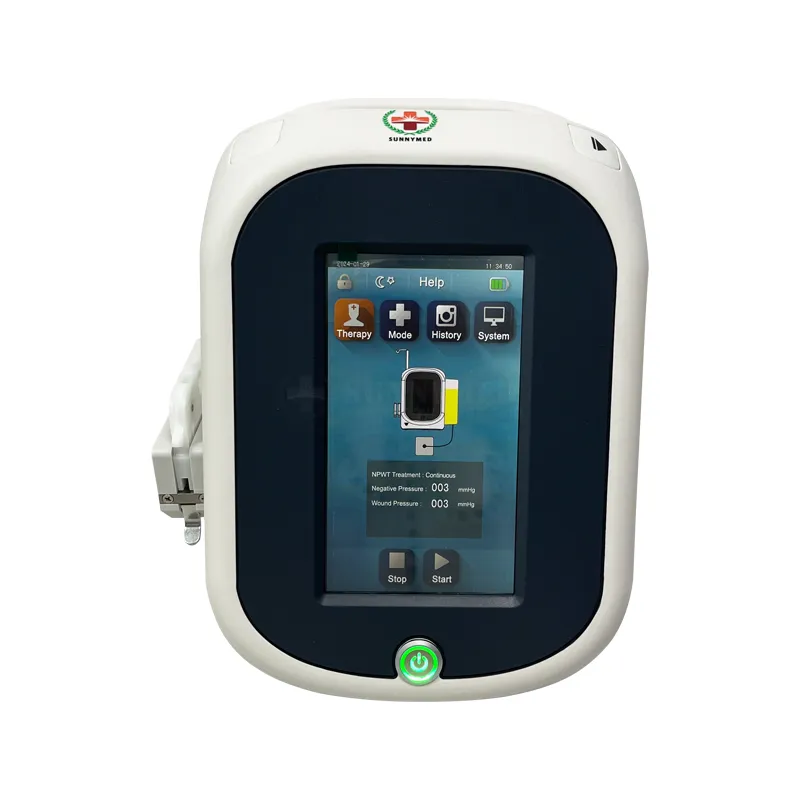

The device is designed with a 7-inch touch screen, allowing clinical professionals to select different therapy modes or directly specify parameters such as therapy mode, time, and pressure as needed for treating each patient. Together with the specialized dressing, this system forms an enclosed, wet negative pressure environment which is scientifically proven to be beneficial for wound healing.

Technical Specifications

Vacuum Speed: 8L / min
Pressure Range: 0-500 mmHg (High precision 25 mmHg)
Vacuum Tank: 500 ml
Treatment Modes: 6 specialized modes available
Intelligent Alarms: Leakage, over pressure, and low battery alerts
Battery Life: Standby for at least 6 hours (5200 mAh)
Cleaning Volume: 6 - 500 ml adjustable (Default: 10 mL)
Cleaning Speed: Low, Middle, High selectable options

Key Features

Stylish and compact portable design
Intuitive 7-inch touch screen interface
One-button control for simplified operation
Dual pressure indication with real-time monitoring
Rapid vacuum environment establishment (Within 10 seconds)

Dressing Specifications

Product Type	PU Foam Size (mm)	Film Size (mm)	Drainage Suite
NPWT_2-100A	100×75x33	387×260 (1pcs)	Double tube
NPWT-2-180A	180×125x33	387×260 (2pcs)	Double tube
NPWT-2-260A	260×150×33	387×260 (2pcs)	Double tube
NPWT-2-180B	180×125×16	387×260 (2pcs)	Double tube
NPWT-2-260B	260×150×16	387×260 (2pcs)	Double tube

Product Gallery

Frequently Asked Questions

1. What are the available therapy modes on the Sy-I800?

The device features 6 therapy modes, including Continuous, Intermittent, and DPC (Dynamic Pressure Control), allowing for customized treatment based on wound requirements.

2. How long does the battery last on a single charge?

The system is equipped with a 5200 mAh/7.4V battery that provides at least 6 hours of continuous operation, making it suitable for portable use.

3. How quickly can the device establish a vacuum environment?

The Sy-I800 is designed for high efficiency, capable of building up the required vacuum environment within 10 seconds.

4. Does the device include safety monitoring features?

Yes, the system includes dual pressure indication for real-time monitoring and smart alarms for air leakage, over-pressure, and low battery status.

5. What support is provided for using the NPWT system?

We provide comprehensive video tutorials covering installation, operation, repair, and maintenance. Additionally, real-time online video training is available for both pre-sales and after-sales needs.

6. What is the standard warranty period?

The product comes with a warranty ranging from 12 to 60 months, depending on the specific agreement, with an 8-hour response time for after-sales service inquiries.
