📋 Basic Information
Measuring Range
Medium-pressure Gauge
Structure
Bellows Pressure Gauge
Function
Local Indication, Electric Signal-controlled
Installation
Direct Mounting
Case Material
Stainless Steel
🔭 Product Description
| Specification |
Details |
| Range | -1+9, -1+12, -1+15 o -1+25 Bar |
| IP protection | IP65 |
| Dial | White laquered aluminum |
| Window | Safety glass |
| Pointer | Micro metric adjustment |
| Ring | Black painted steel |
| Case | AISI 304 Stainless steel |

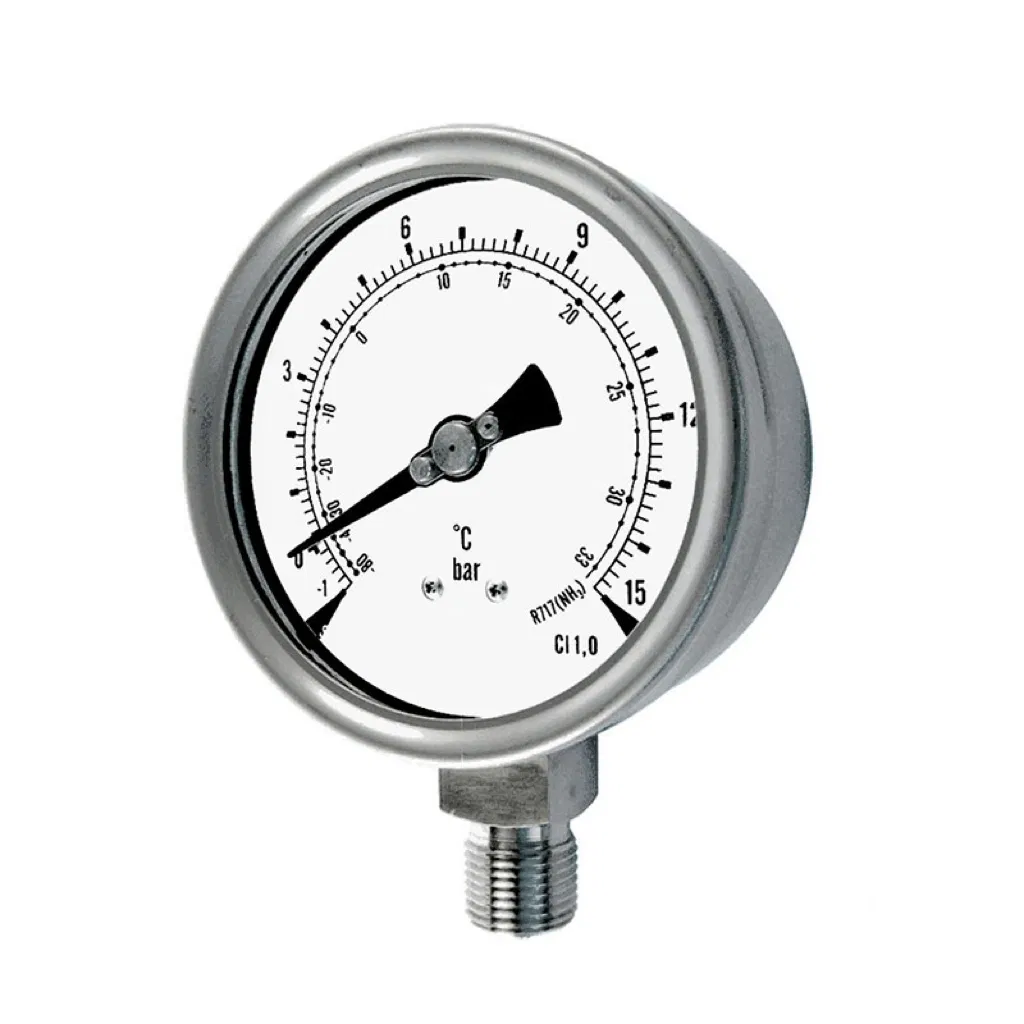

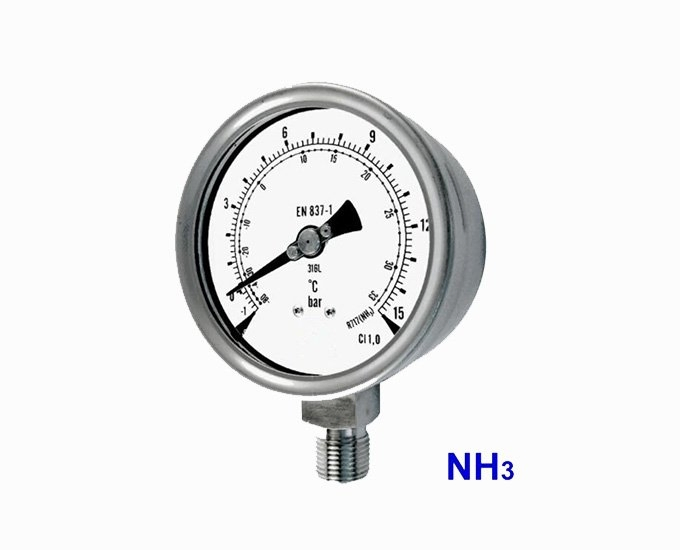

| Scale | Bar/ °C for refrigerant R717 (NH3) |
| Pressure limits | Static: ¾ end of scale; Maximum: Full scale; Oscillating: ⅔ end of scale |
| Bourdon Tube | AISI 316 Stainless steel |
| Connection | AISI 316 Stainless steel |
| Mounting | Bottom and center back with surface |
| Accuracy | Class 1.0 |
| Temperature | Environment: -40+65°C; Fluid: 60°C |
Specializes in manufacturing and exporting Pressure gauge and Pressure regulators. We supply instruments for various industries, including oil exploration, chemical industry, iron and steel industry, and power generation plants. Suitable for all gaseous and liquid media that will not obstruct the pressure system or attack copper alloy parts. Especially designed for refrigeration systems and ammonia.
📷 Detailed Photos
❓ Frequently Asked Questions
What specific applications is this gauge designed for?
This gauge is specifically designed for refrigeration systems and ammonia (R717) applications. It is suitable for gaseous and liquid media that do not obstruct the pressure system.
What is the environmental temperature range for this device?
The gauge can operate in environmental temperatures ranging from -40°C to +65°C, with a maximum fluid temperature of 60°C.
What materials are used for the wetted parts?
The Bourdon tube and the connection components are made of high-quality AISI 316 Stainless steel for superior corrosion resistance.
Does the gauge provide high accuracy for industrial use?
Yes, it features an Accuracy Class 1.0 (1% of Full Scale), making it reliable for critical industrial monitoring.
What is the ingress protection (IP) rating?
The gauge is rated at IP65, providing excellent protection against dust ingress and low-pressure water jets from any direction.
Can the pointer be adjusted?
Yes, the gauge is equipped with a micro-metric adjustment pointer for precise calibration and reading.
