Solution for Oil Well Indicator Diagram and Liquid Level Test System Based

1 / 5

Solution for Oil Well Indicator Diagram and Liquid Level Test System Based

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

Digital Oilfield Construction Solution 8

Working Fluid Level

0~3000m

Load

0-90, 120, 150kn

Load Sensor

Sm4

HS Code

9031809090

Production Capacity

300,000 Pieces/Year

Origin

China

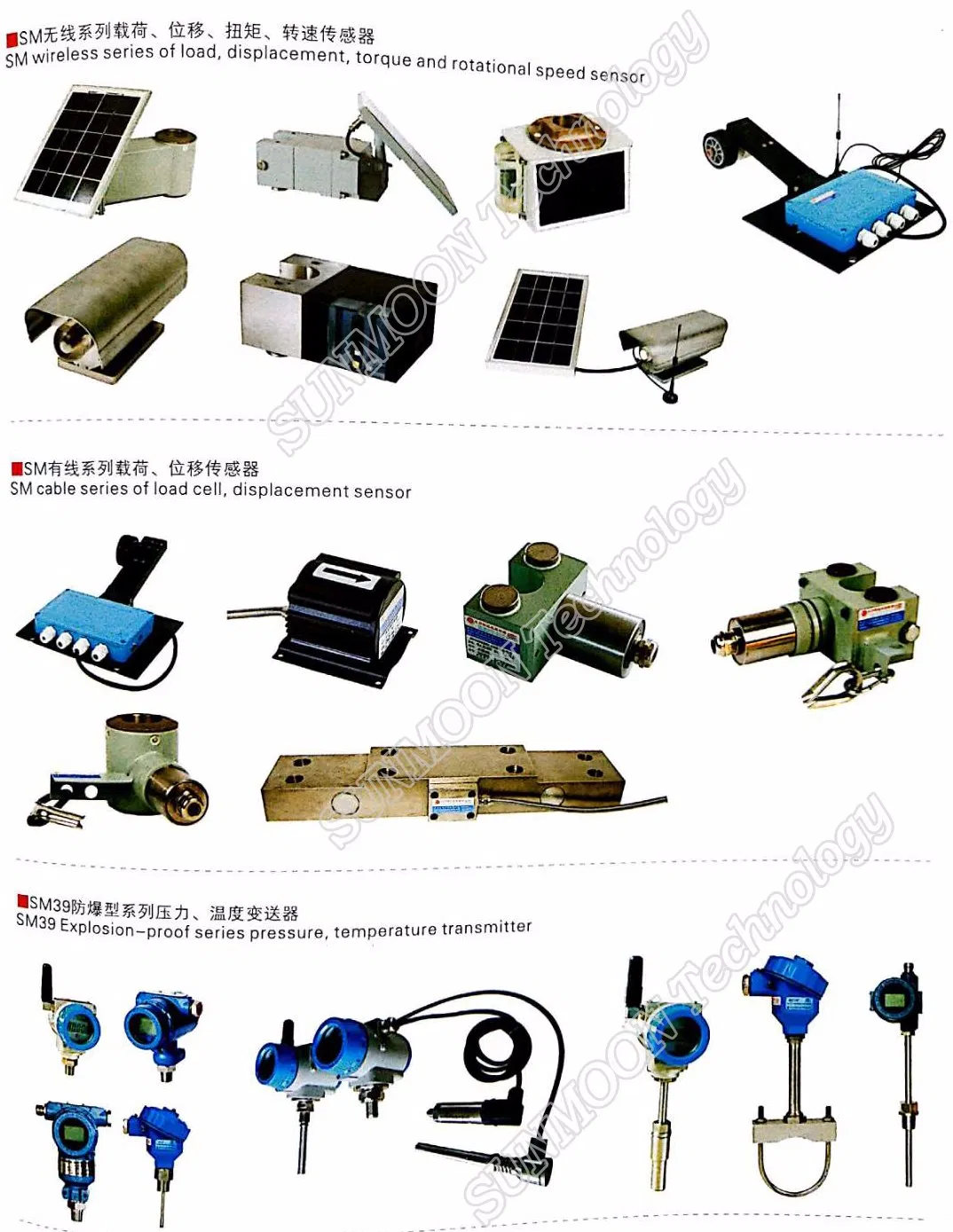

Product Description

Since 1988, our team has provided indicator diagram load sensors, drilling-log special sensors, salvage panel meters, and drawwork sensors for oilfields. We specialize in research, development, and manufacture of oilwell production data collection and remote measurement and control systems. From special sensors to digital remote wireless systems, we provide complete solutions for single well data collection, metering stations, transfer stations, and water/gas distribution stations.

Spot supply of mature products: load, angular displacement, temperature, pressure, electric energy sensors, and RTU.
Standardized interface: Compatible with SCADA, DCS, and other network systems for data sharing.
Customization: Professional design team for customized products and professional matching technology solutions.
Professional technical service: Original and perfect on-line check schemes for indicator diagram sensors.

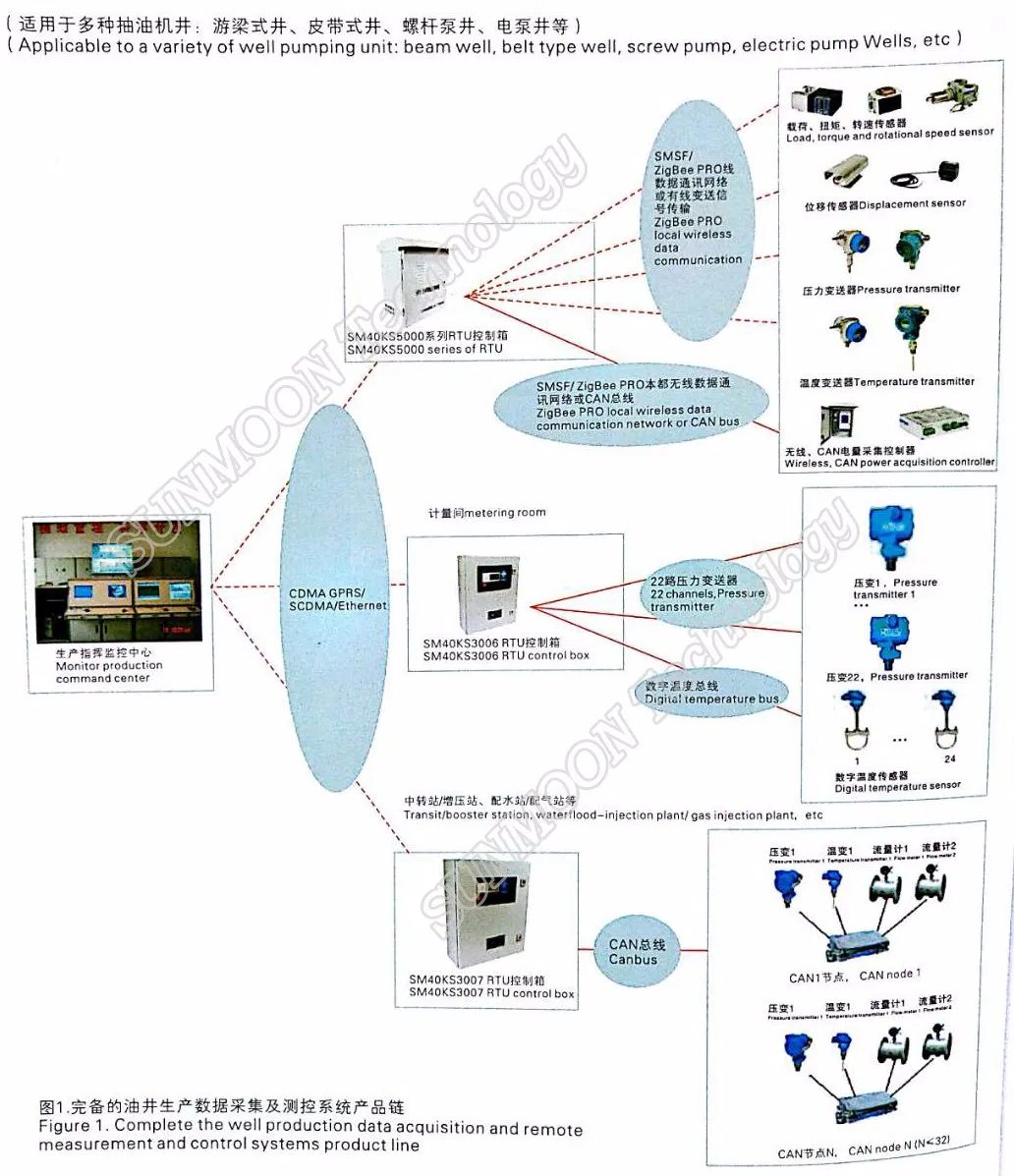

1. System Overview

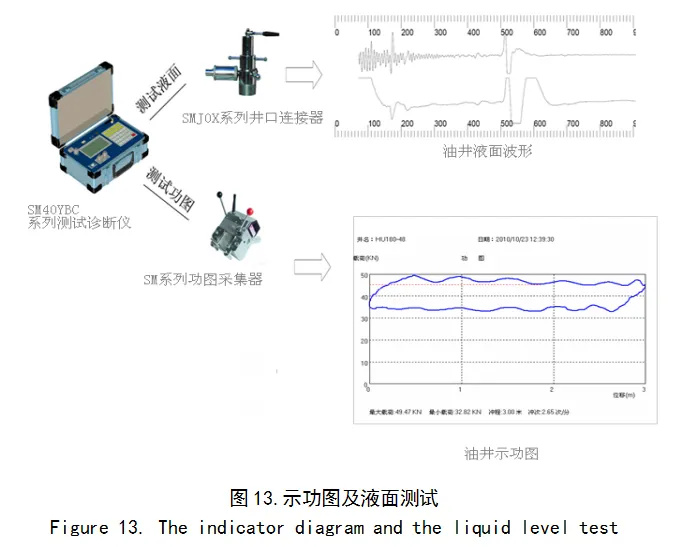

The oil well indicator diagram and liquid level test system is based on portable instrument applications, composed of wireless diagnostic apparatus, wireless digital indicator diagram collectors, and wellhead connectors. The system allows for efficient oil well diagnosis by collecting local data and sending it wirelessly to the diagnostic apparatus.

2. Functional Characteristics

Wireless collection for oil wells with different stroke times.
Industrial computer design: modular, suspended structure, full sealed keyboard.
High storage: Storable data for more than 1000 well times.
Long endurance: Continuous operating time for up to 10 hours.
Wired liquid level collection: Stable repeatability and high test accuracy.

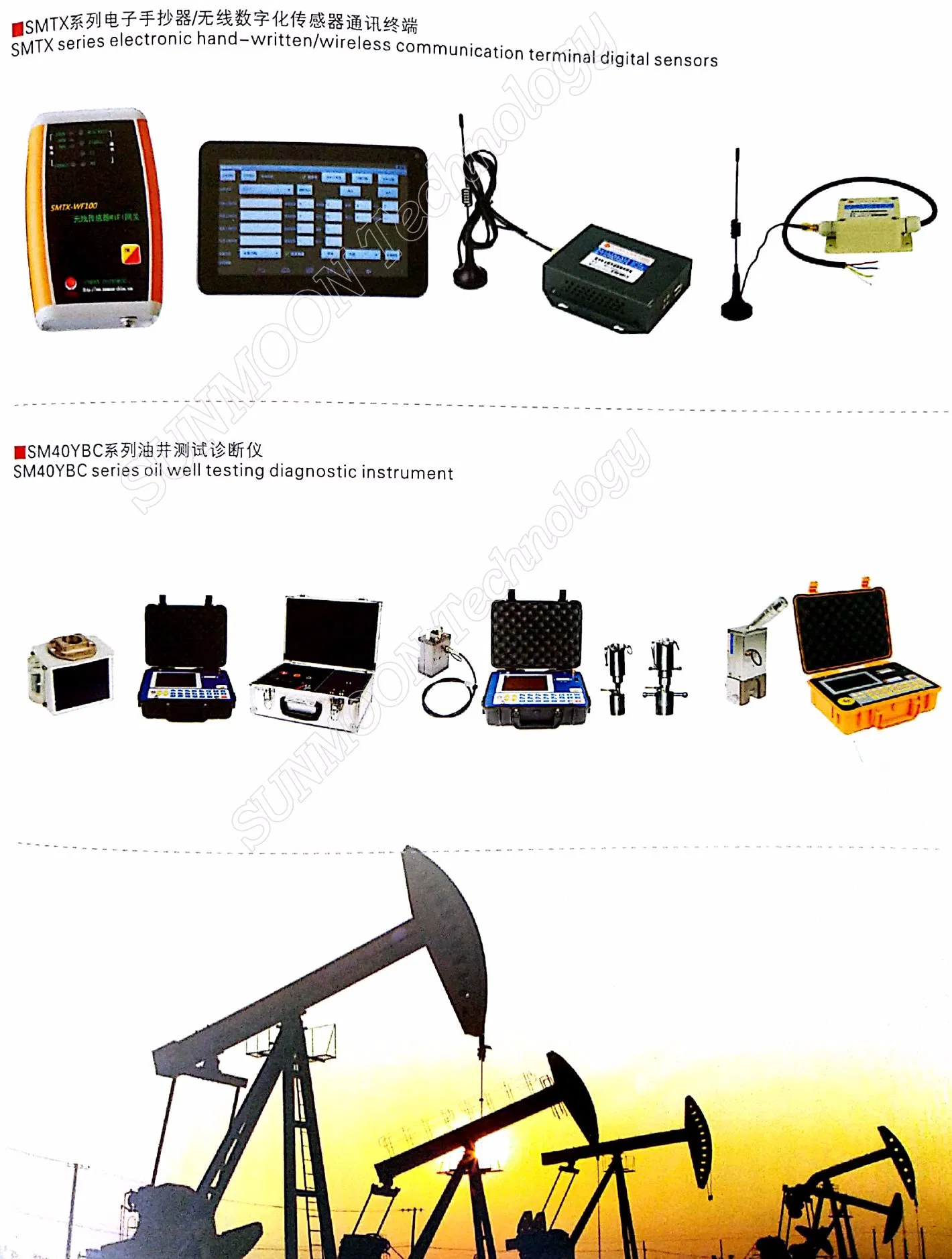

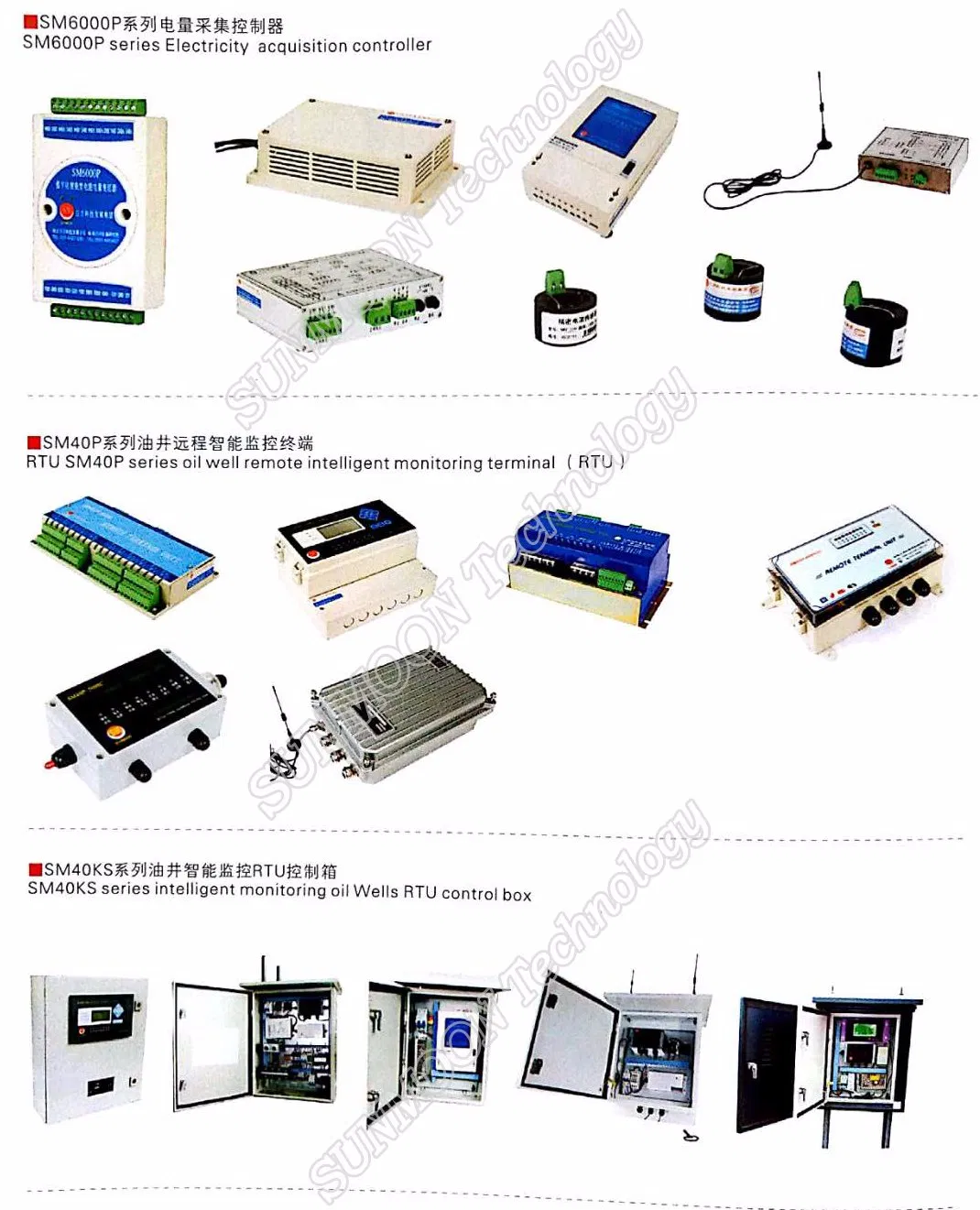

3. System Configuration Series

4. Technical Index

Load Range

0~90, 120, 150 kN (0.5%F.S)

Displacement

0~8 m (0.5%F.S)

Fluid Level

0~3000m (0.5%F.S)

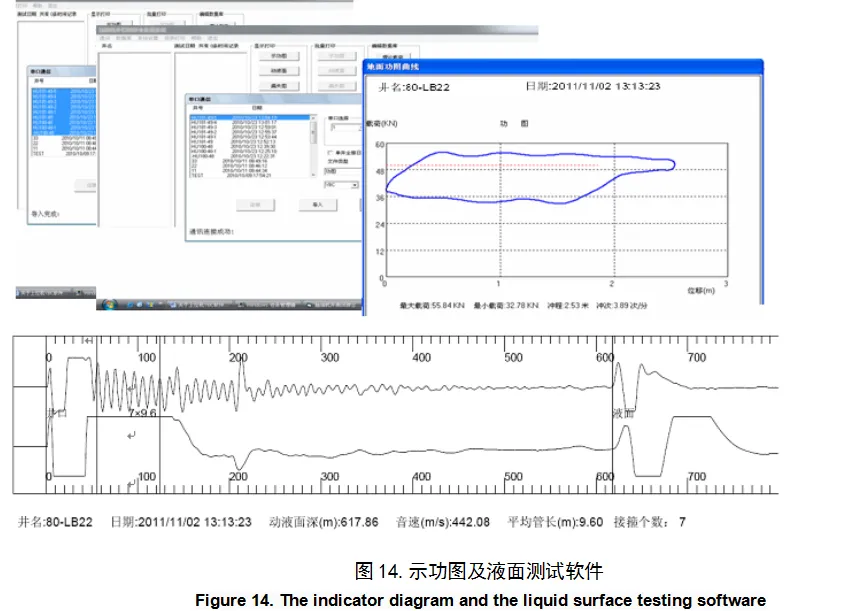

5. Software & Detailed Configuration

No	Designation	Model	Quantity	Function

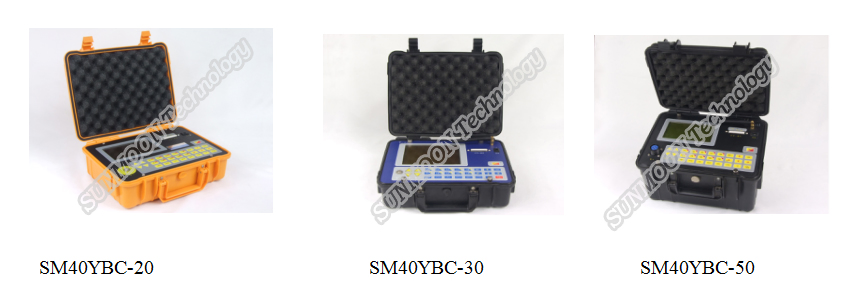

1	Wireless portable test diagnostic apparatus	SM40YBC-20	1	Test diagnostic device

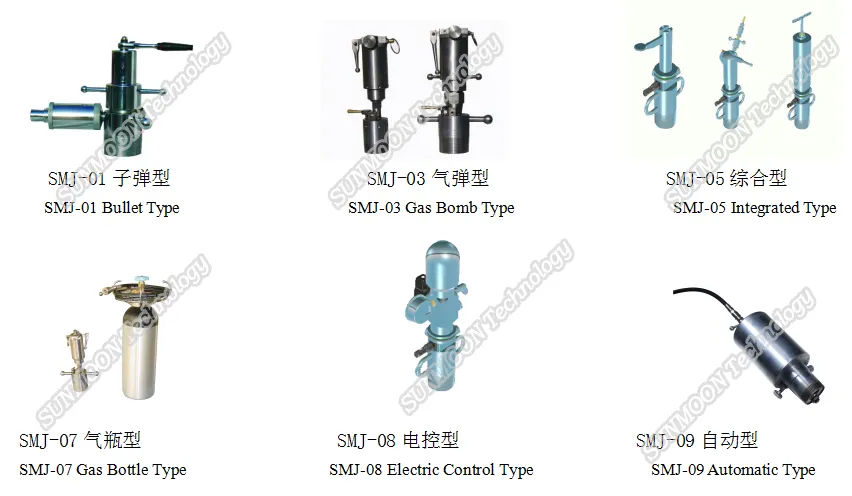

2	Gas bottle type wellhead connector	SMJ-07	1	Liquid level test device

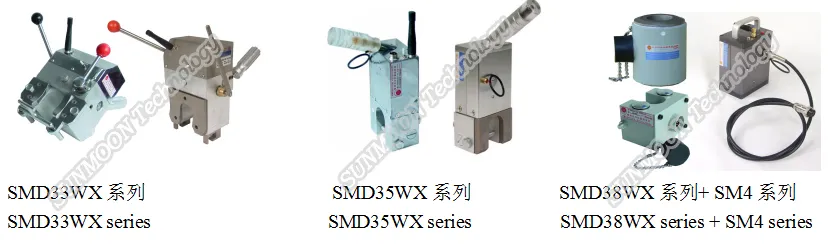

3	Wireless digital hydraulic displacement sensor	SMD33WX	1	Indicator diagram device 1
4	Wireless digital load displacement sensor	SMD35WX	1	Indicator diagram device 2
5	Wireless digital displacement transmitter	SMD38WX	1	Indicator diagram device 3
6	Load sensor	SM4	1	Hardware Component

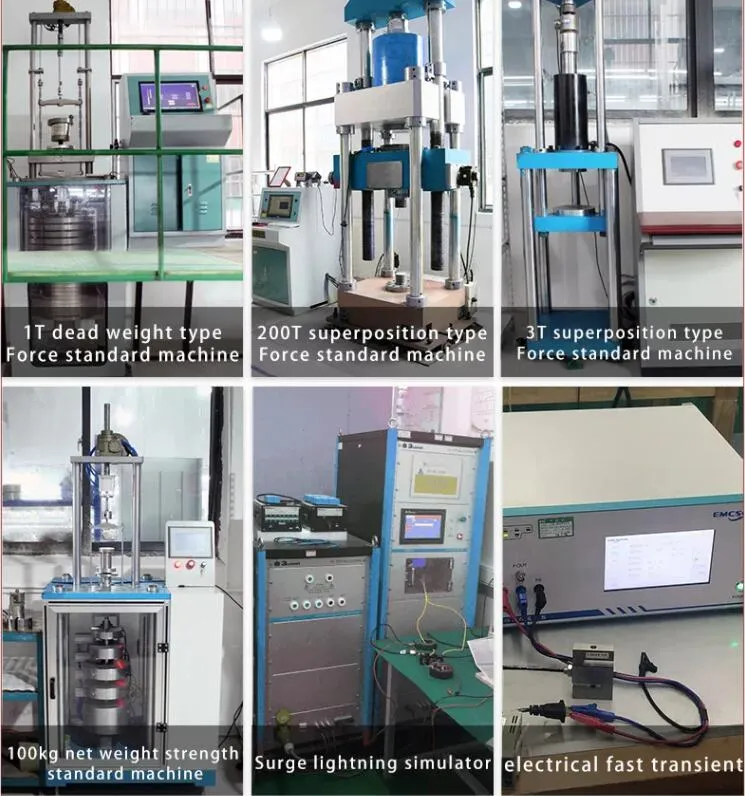

Enterprise Profile

Founded in 1988, the enterprise was among the first batch of high-tech entities recognized at the national level. We hold certifications for ISO 9001 Quality Management, ISO14001 Environmental Management, and OHSAS 18001 Occupational Health and Safety. With 189 patented technologies, our core competitiveness lies in Sensing and IoT Technology.

Our products are designed to reliably meet the harsh environments of industrial sites. With an annual output of 300,000 sensor units and 20,000 sets of instruments, we maintain a leading position in technical innovation and production capacity.
