Medical Single-Use Electrical Coil Applicators Disposable Endoscopic Consumables

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Specifications

Model NO.
OT-23-1200-20-A
Sterilization
Ethylene Oxide (EO)
Guarantee Period
3 Years
Group
Adult
Loop Width
10-35mm
Working Length
2300mm
Spec
Oval, Hexagonal, Crescent
Samples
Available on Request
Origin
China

Product Description

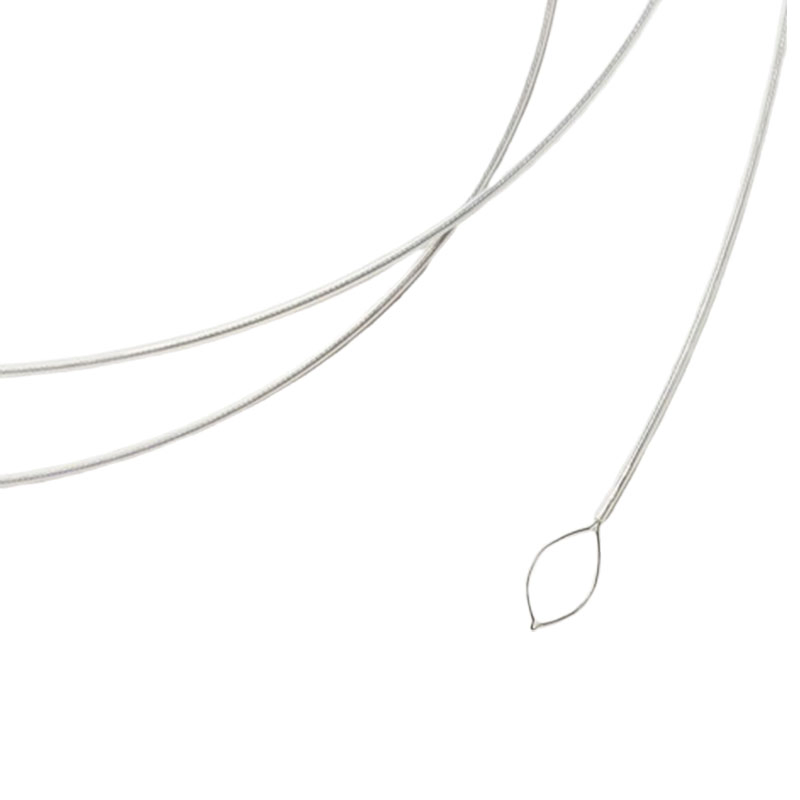

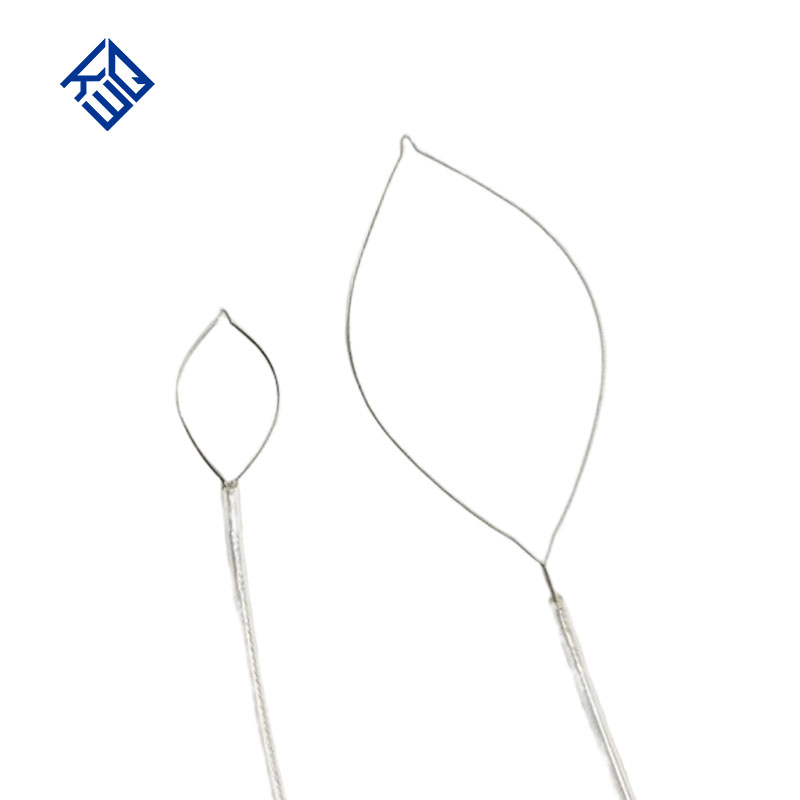

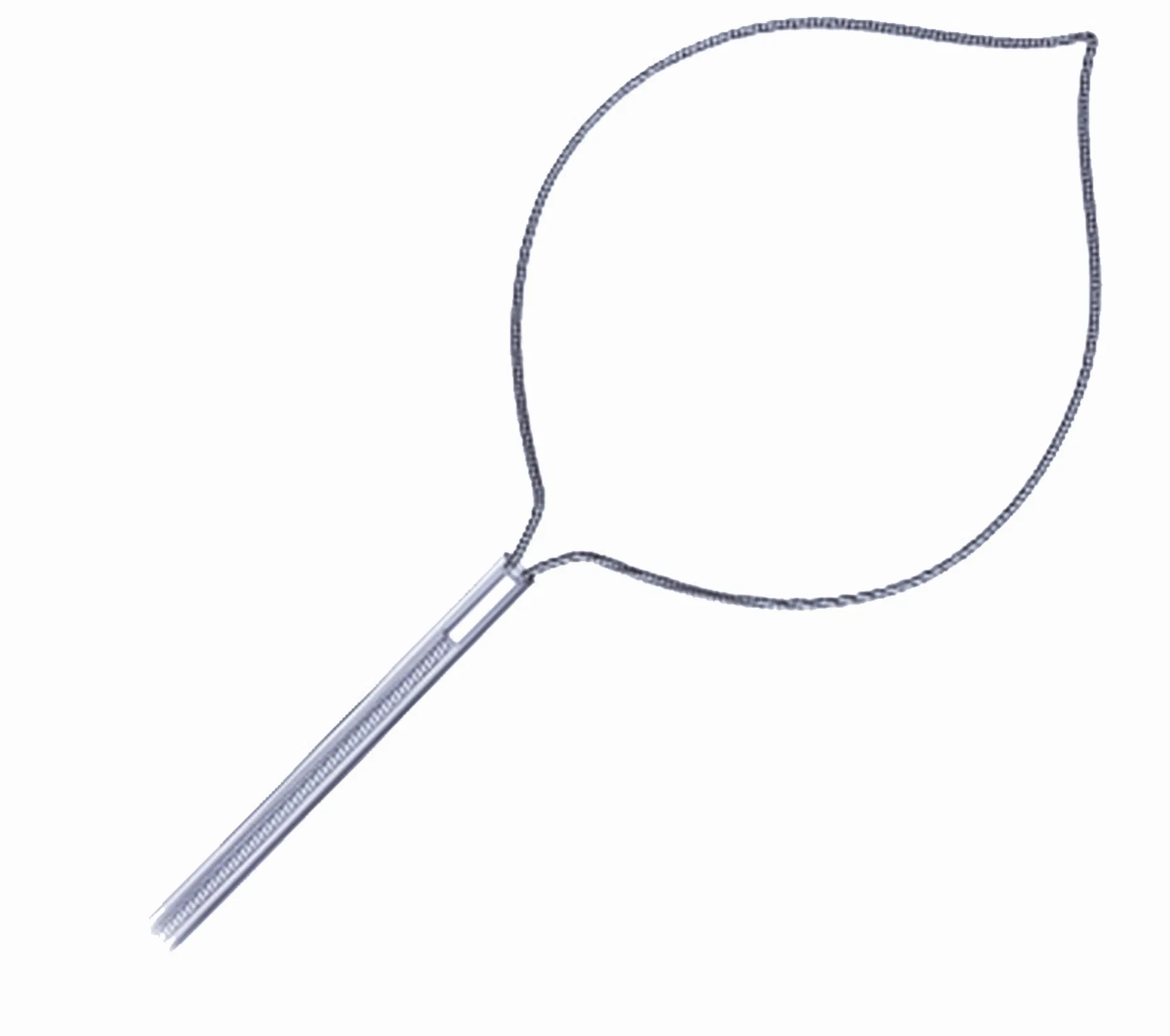

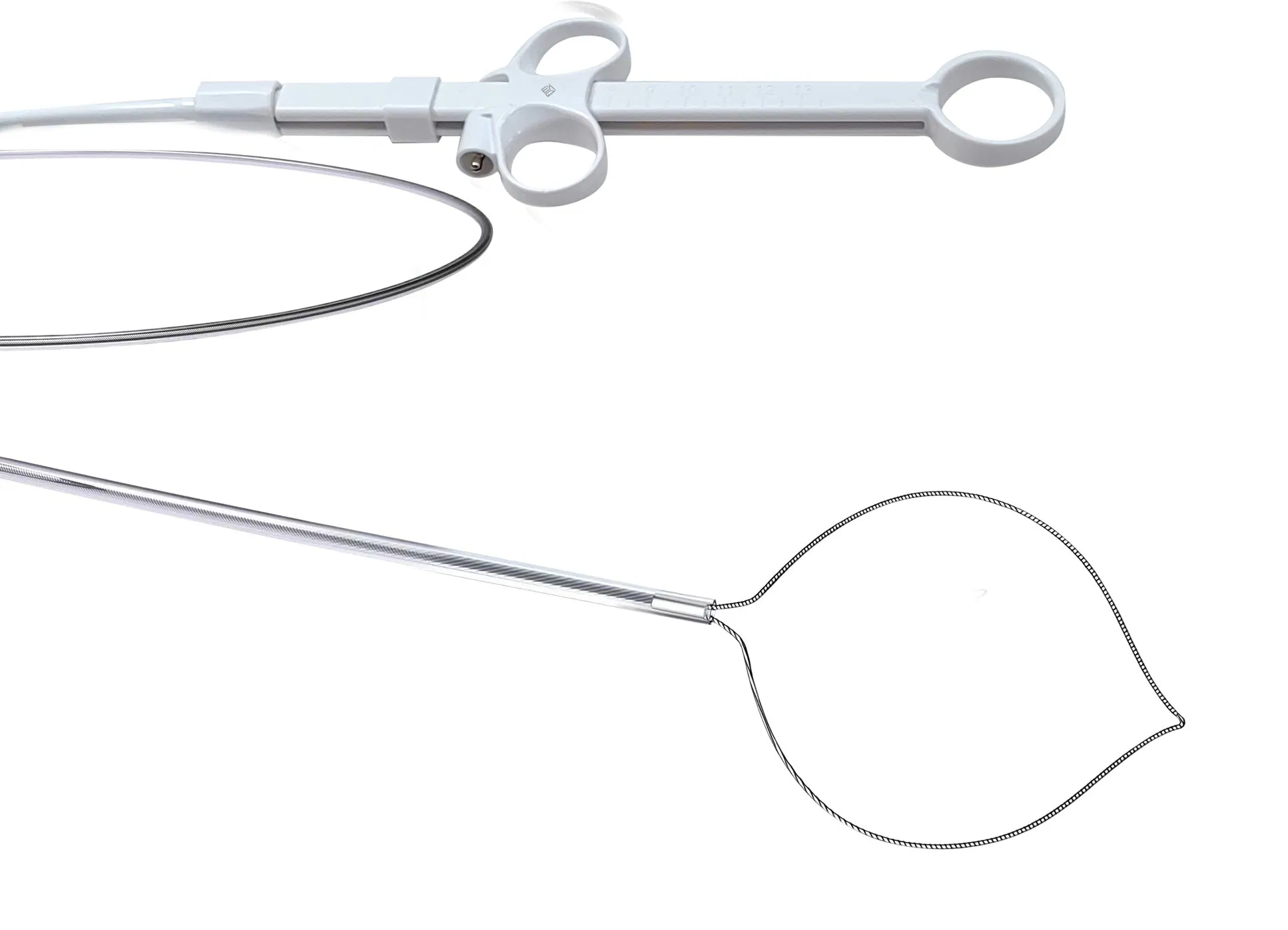

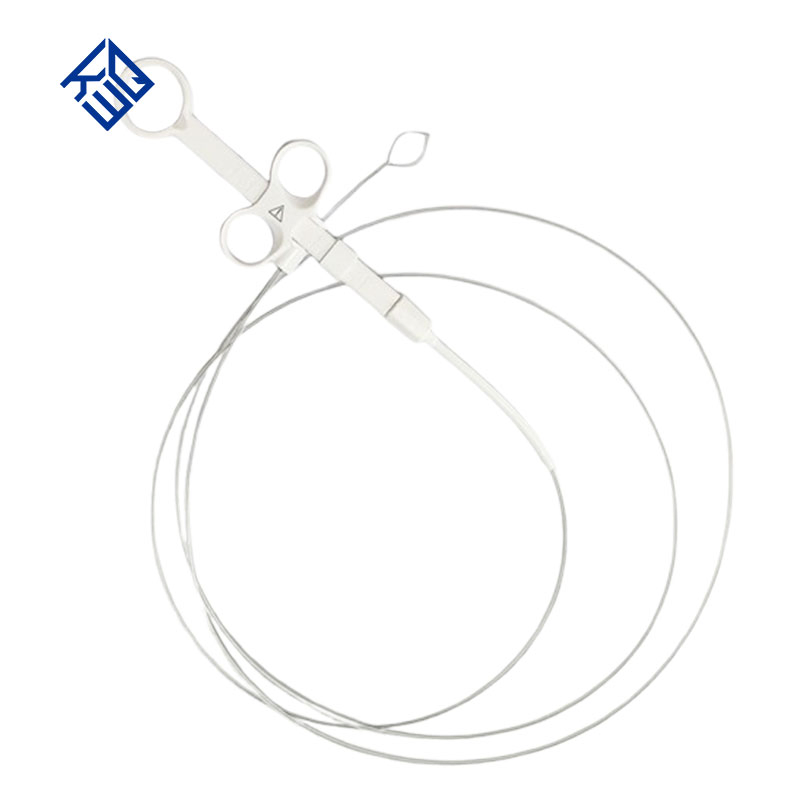

Electrical Coil Applicators

This high-precision instrument is designed for use in combination with an endoscope for cutting polyps or other redundant tissues using high-frequency current within the digestive tract.

The product enables precise removal of polyps of various sizes and shapes. Its 360° rotation capability allows for easy maneuverability even in difficult locations, making single-handed operation smooth and efficient for large polyps.

Endoscopic Consumables 1
Endoscopic Consumables 2
Endoscopic Consumables 3

Key Features

  • 🔄
    360-Degree Swivel Design: Ensures convenient clinical operation and precise positioning.
  • ⚙️
    Braided Steel Wire: Increased tissue contact area for optimal coagulation and safer cutting.
  • 🛡️
    PTFE Sheath: Provides smooth insertion and easy operation during procedures.
  • 📐
    Multiple Shapes: Available in Oval, Hexagonal, and Crescent Snare designs to fit various clinical needs.
Feature View 1

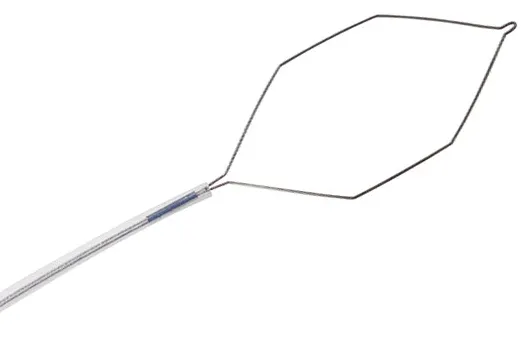

Feature View 2

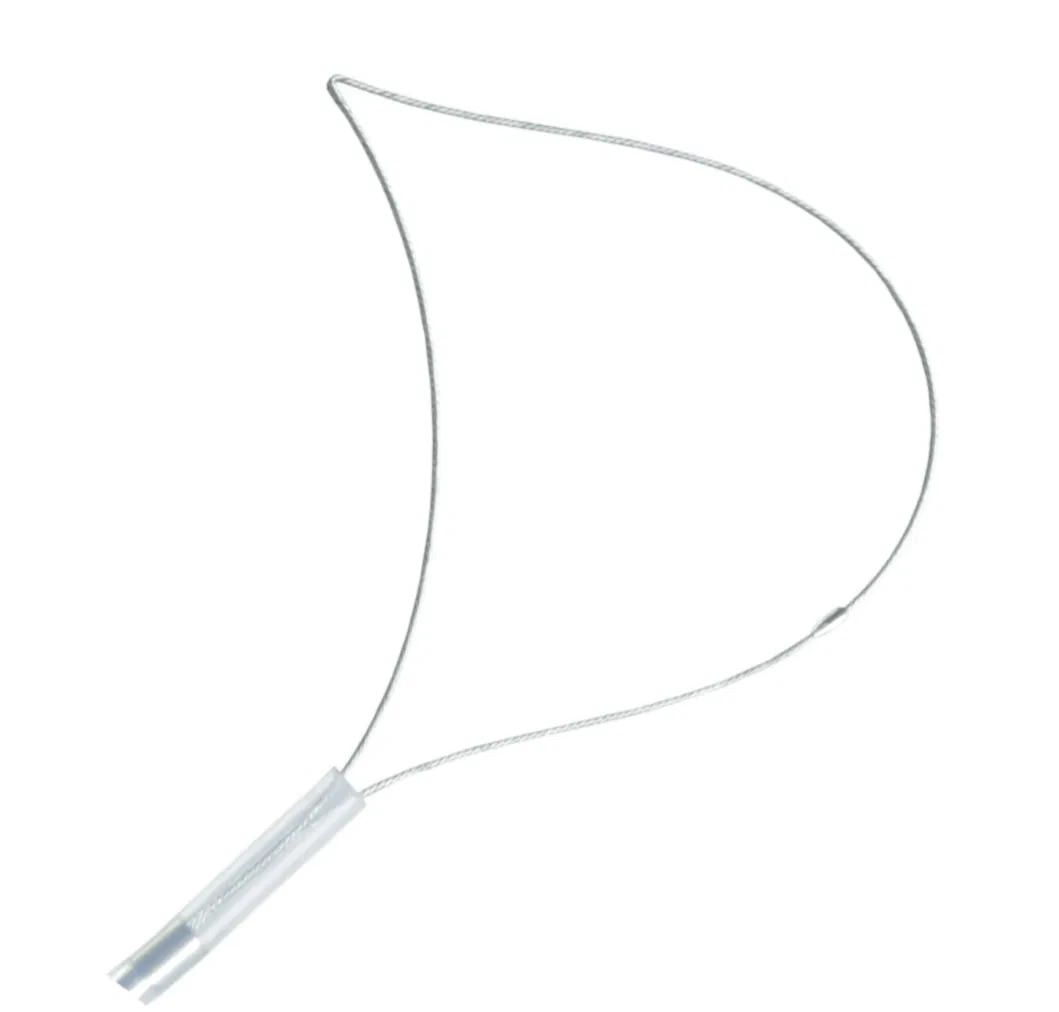

Feature View 3

Technical Specifications

Part No. Tube OD (mm) Working Length (mm) Loop Width (mm) Characteristics Shape
OT-18-1200-15-A1.8120015StandardOval Snare
OT-18-1600-20-A160020Standard
OT-18-1200-15-AR120015360° rotation
OT-18-1600-20-AR160020360° rotation
OT-23-1200-20-A2.3120020StandardOval Snare
OT-23-1600-30-A160030Standard
OT-23-1800-20-AR180020360° rotation
OT-23-2300-35-AR230035360° rotation
OT-18-1600-20-B1.8160020StandardHexagonal
OT-23-2300-20-B2.3230020StandardHexagonal
OT-23-1600-25-C2.3160025StandardCrescent
OT-23-2300-30-CR2.3230030360° rotationCrescent
Working Lengths available up to 2500mm | Loop widths available 10mm to 35mm

Packaging & Shipping

Packaging Details
  • Inner Packing: Medical sterilizing bag (37*30cm), 1pc/bag
  • Middle Packing: Box (26*20.5*10cm), 10pcs/box
  • Outer Packing: Carton (54*38*60cm), 100pcs/carton (Approx. 12kg)

Frequently Asked Questions

Q: What is the Minimum Order Quantity (MOQ)?
A: We have no strict MOQ requirements; even a single piece order is acceptable.
Q: Are free samples available for quality testing?
A: Yes, we welcome sample orders. Free samples are available upon request to check the quality before mass production.
Q: What is the typical lead time for orders?
A: Samples generally take 1-3 days, while mass production orders are typically fulfilled within 5-10 days.
Q: What kind of certification do these products have?
A: Our products are certified with CE, ISO, and SGS. We can also apply for specific certificates based on your regional requirements.
Q: Do you offer customization services?
A: Yes, we provide full OEM/customization services. Please provide your specific drawings or physical samples.
Q: What is the warranty period for the endoscopic snares?
A: All products come with a 3-year quality guarantee and professional after-sales support.
