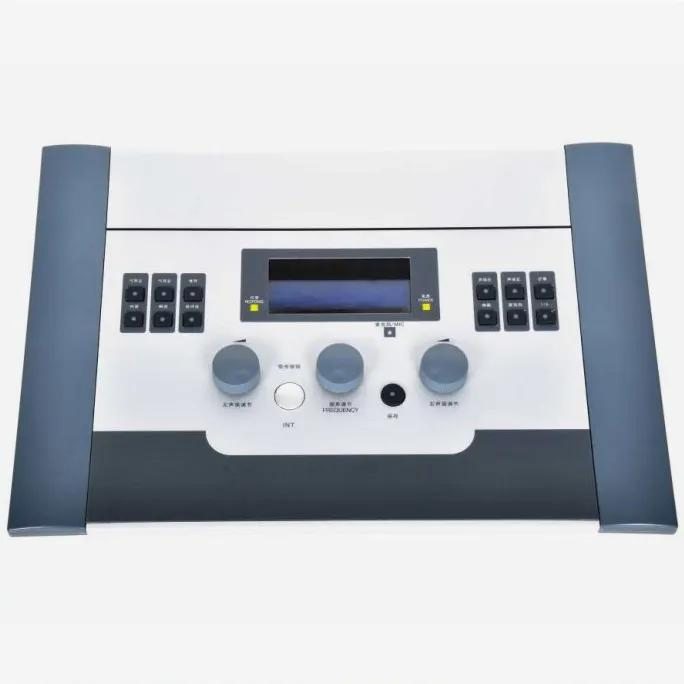

Medical Diagnostic Screening Professional Audiometer Testing Hearing Device Audiometer with Earphone

1 / 5

Medical Diagnostic Screening Professional Audiometer Testing Hearing Device Audiometer with Earphone

Customization:	Available
Classification:	Physiological Functions of Diagnosis and Monitoring Equipment
Type:	Audiometry and Tympanometer

Send Inquiry

Product Description

🔹 Basic Information

Model NO.

AD104

Certification

Group

All

Transport Package

Carton

Specification

Origin

China

📋 Product Description

Key Features of Audiometer:

✔ Air conduction test, Bone conduction test, and sound field test.

✔ Seamless connection to a single workstation.

✔ One-key analysis of hearing test data for instant noise diagnosis values and grades.

✔ Selectable test frequencies and fully customized personalized reports.

⚙️ Technical Specifications

Item	Specification
Channel	Two independent output channels
Extended Range	If not selected, AC output restrictions smaller than maximum output 20 dB
Input	Pure tone, warble tone ±5%, 5Hz Sine wave frequency modulation
Masking	Both air conduction and bone conduction support masking
Computer Interface	USB data transfer interface for data management and personalized reports

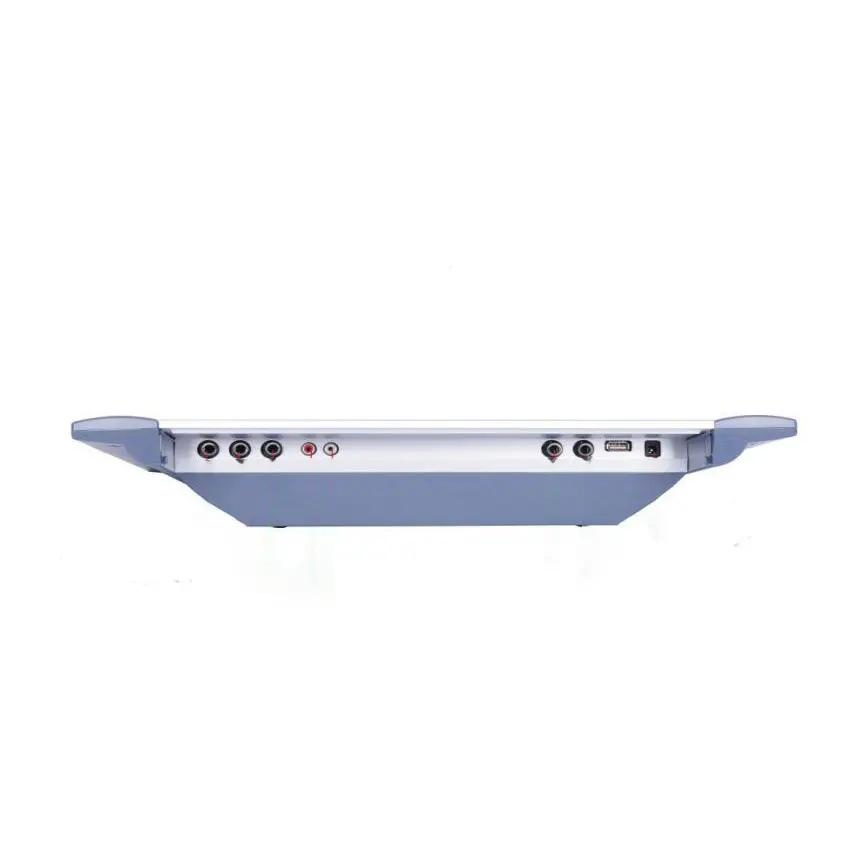

Output	Air conduction earphone (L/R), Bone conduction earphone (L/R), Insert earphone, Insert masking

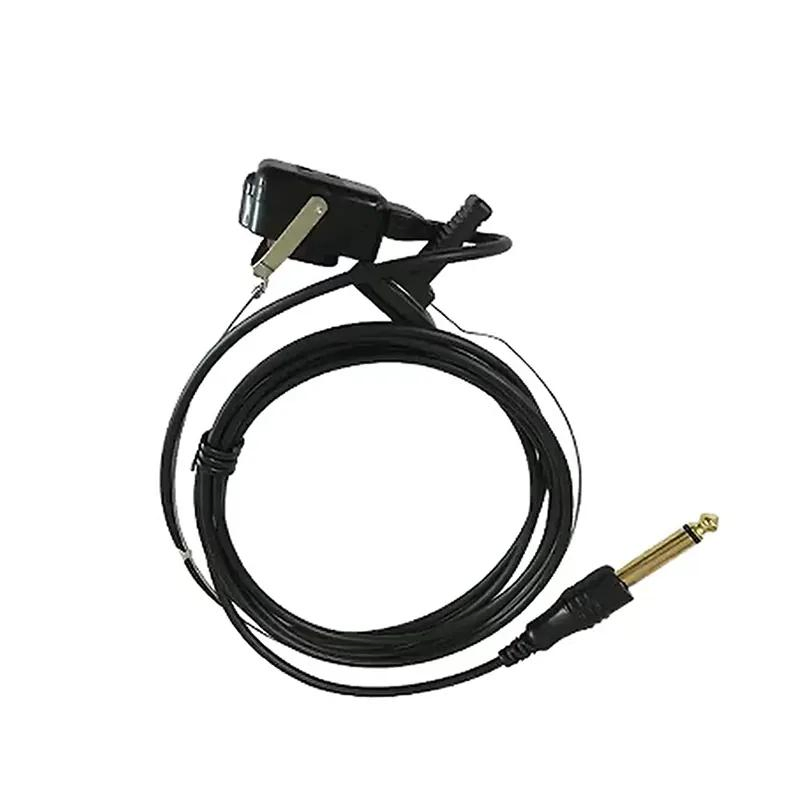

Transducer	TDH 39 AC earphone & B71 BC earphone (Standard); Ear~Tone 5A (Optional)
Monitor Function	Optional
Feedback Words	Built-in microphone; 50-90 dB SPL continuously adjustable
Test Voice Delivery	Manual or automatic / Monopulse / Multiple-pulse
Frequency Selection	Fast test options: 250 Hz, 750 Hz, 1500 Hz, 4k Hz, or 6k Hz
Display	Letter-figure display
Patient Signal	Responser included
Structure	Durable engineering plastic shell
Attenuator Control	Standard rotary switch (Push-button optional)
Power Supply	220-230V, 50-60 Hz regulated power supply
Dimensions	45cm * 30cm * 7cm
Net Weight	1775g

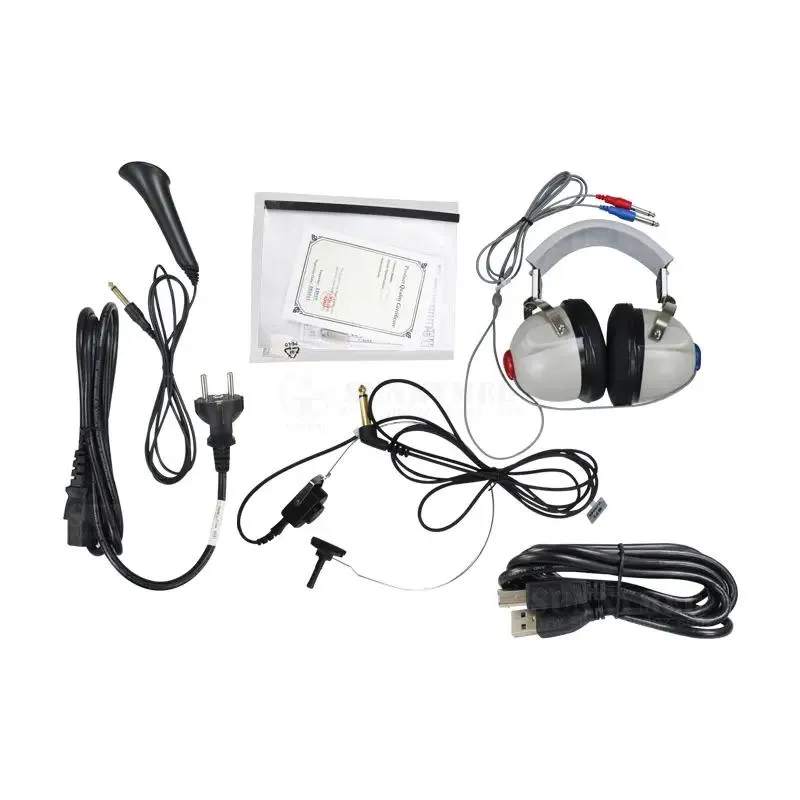

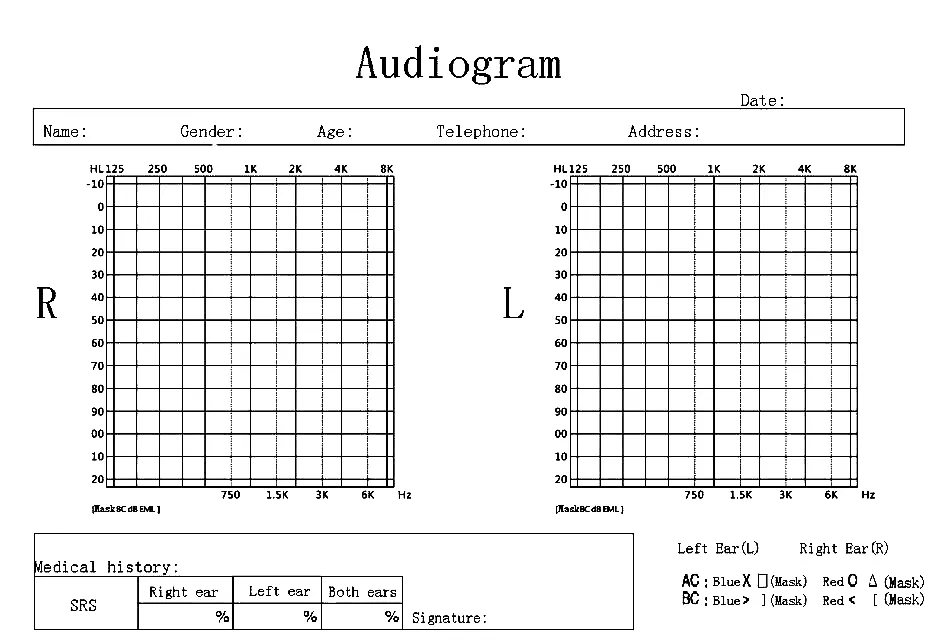

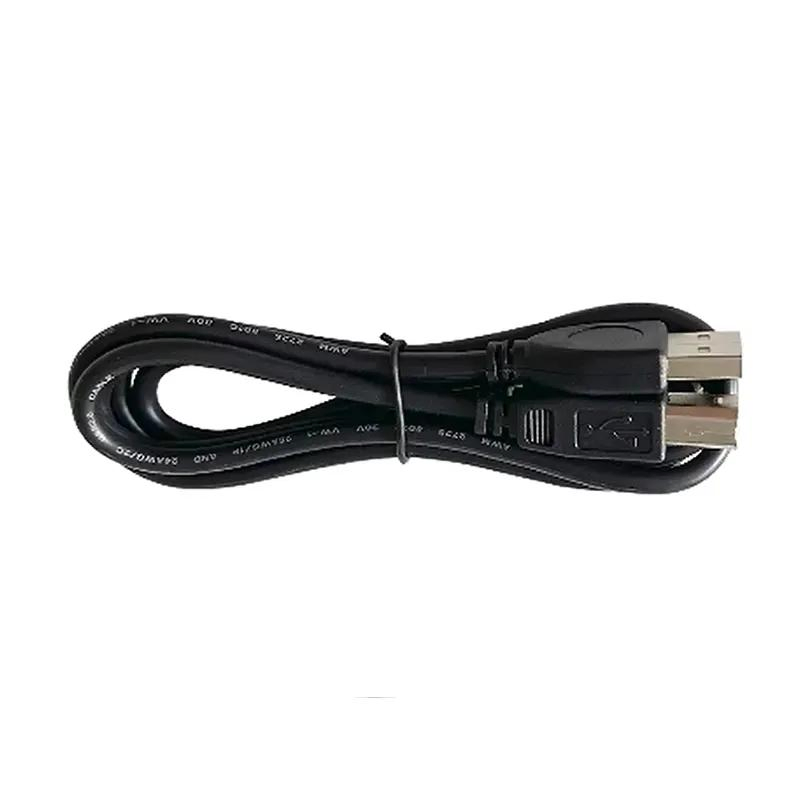

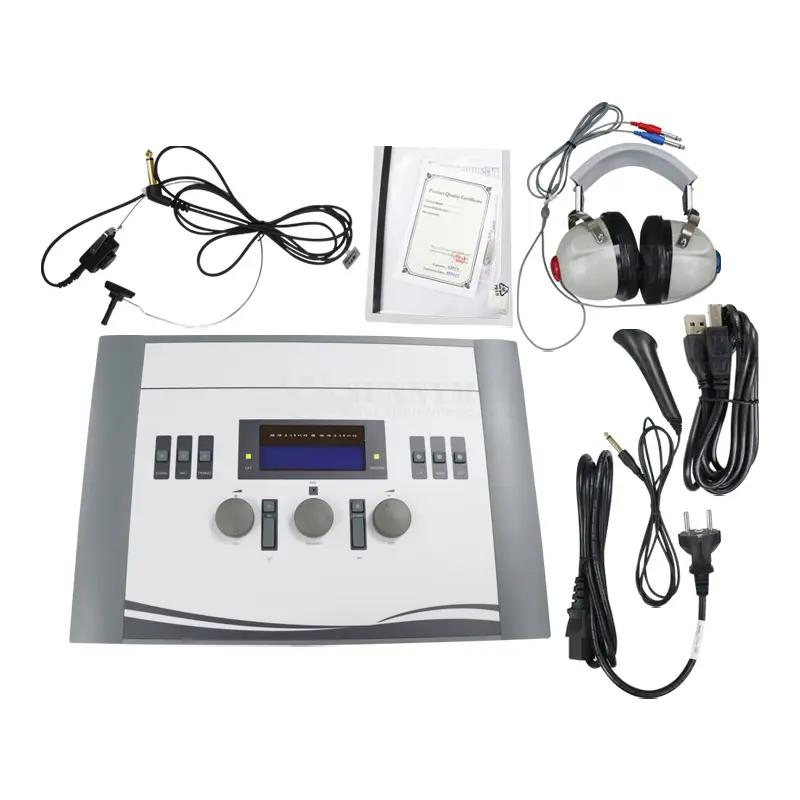

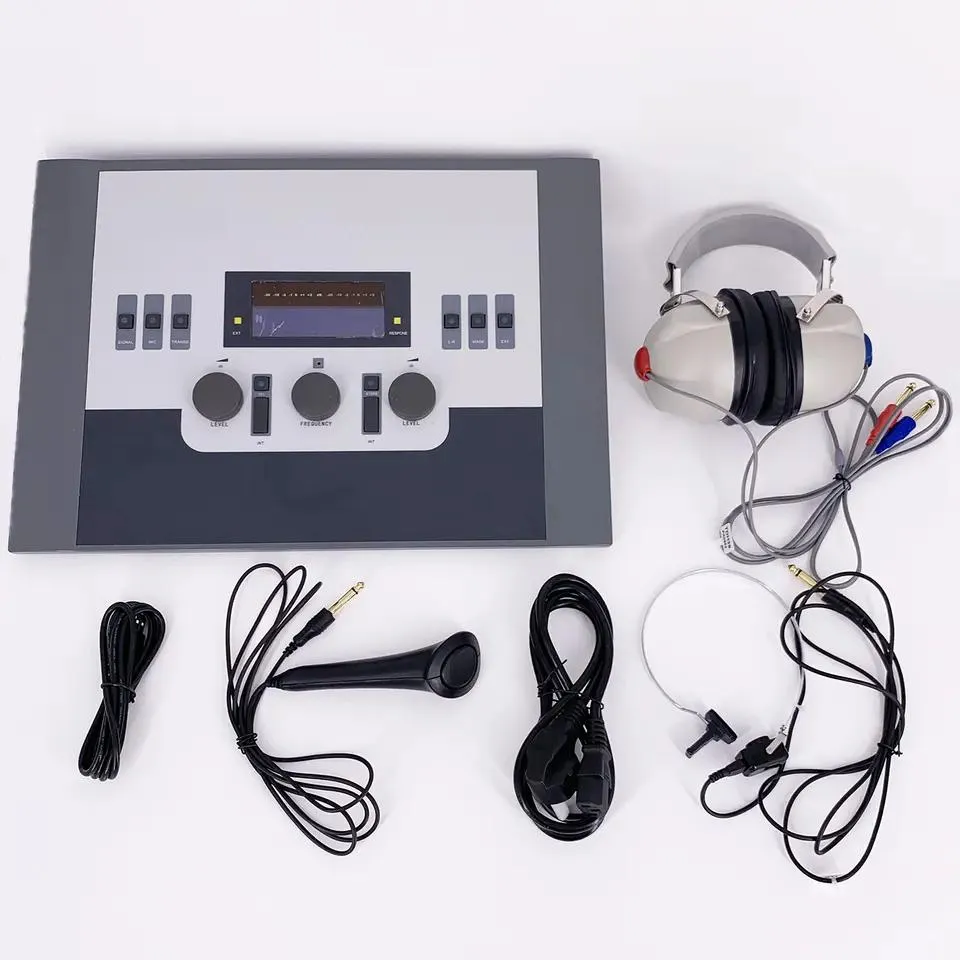

Standard Accessories	TDH39 AC Earphone, B71 BC Earphone, Responser, Power cable, USB cable, CD software, Audiogram

📸 Product Gallery

Audiometer Detailed Specifications Infographic

❓ Frequently Asked Questions

Q1: What testing modes are supported by the AD104 Audiometer?

A: The device supports Air Conduction (AC) testing, Bone Conduction (BC) testing, and sound field testing to provide a comprehensive hearing evaluation.

Q2: Can the test data be transferred to a computer?

A: Yes, it features a USB data transfer interface that allows you to connect to a workstation, analyze data with one key, and create personalized print reports.

Q3: What frequencies can be selected for fast testing?

A: For rapid screening, you can specifically select frequencies such as 250 Hz, 750 Hz, 1500 Hz, 4k Hz, or 6k Hz.

Q4: Does the audiometer include masking capabilities?

A: Yes, masking is available for both air conduction and bone conduction tests to ensure accurate results in complex cases.

Q5: What is included in the standard accessory package?

A: The standard package includes TDH39 Air conduction earphones, B71 Bone conduction earphones, a patient responder, power and USB cables, CD software, and an audiogram.

Q6: Is the device portable and what is its build quality?

A: The device weighs 1775g and is housed in a durable engineering plastic shell, making it both sturdy and suitable for professional clinical environments.
