Maycare Effective Dust Extraction System for Industrial Environments

Customization:	Available
Certification:	CE, ISO
Installation Method:	Horizontal

📊 Basic Information

Model NO.

IDC4-32

Operation Type

Automatic

Medium Material

Metal Fiber

Method

Dry Dust Collecting

Type

Filter Cartridge Dust Collector

Airflow

2,400~80,000CMH (Customizable)

Cleaning Way

Pulse Jet

Filter Efficiency

F7~H13

Design

Modular Design

Certificate

CE

Voltage

380V, 50Hz, 3pH

Noise Level

85dB

🛠️ Product Description

The IDC series dust collector ingeniously harnesses the power of gravity and downward airflow to achieve self-cleaning. Dust-laden air enters from the top, is guided through a strategic path, and exits from another top side, adhering to the inertial settling principle for an efficient downward dust flow.

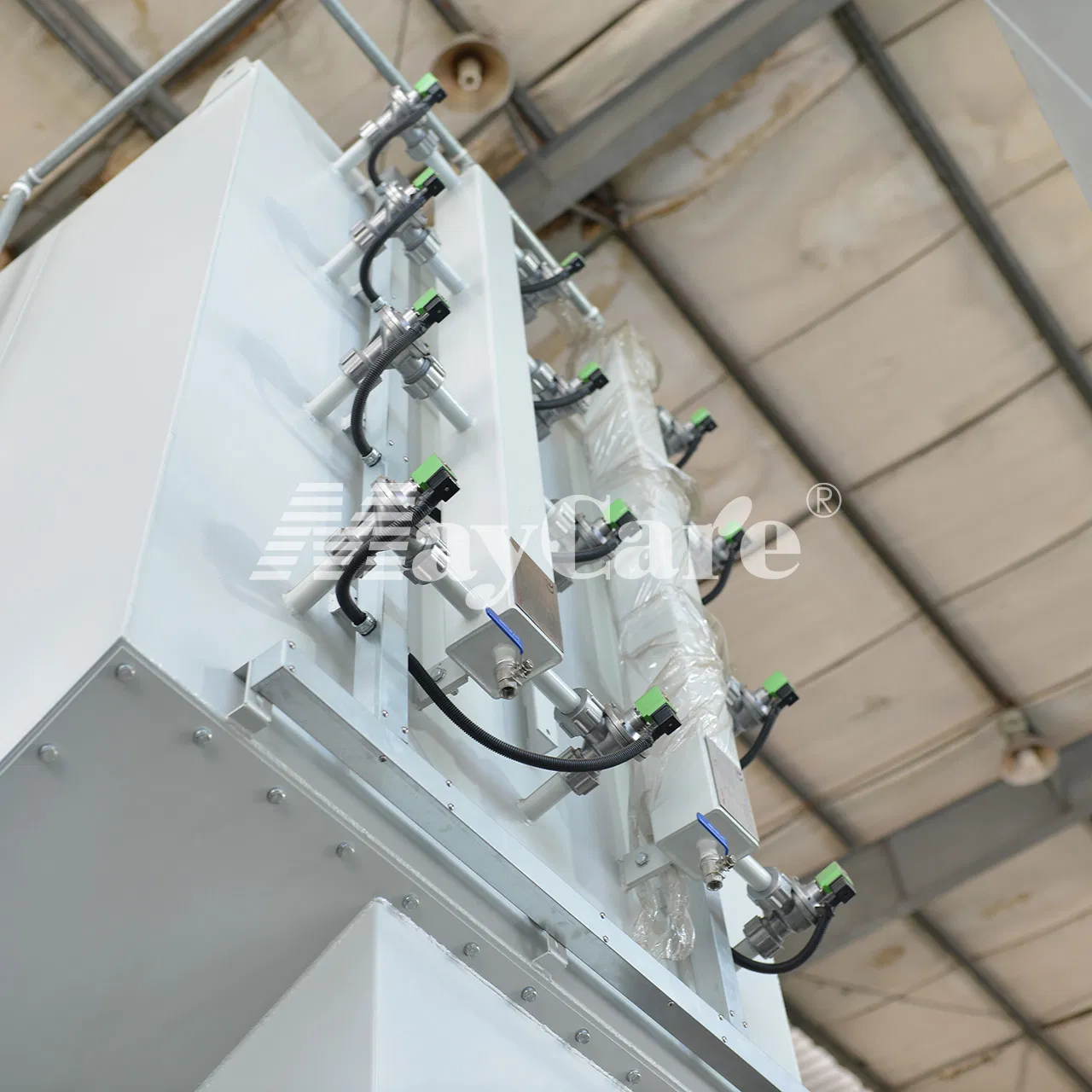

Clean air is meticulously released through the cartridge's center into the clean air chamber, subsequently discharged through the outlet. A robust control timer selects cartridge pairs for high-pressure compressed air cleaning, ensuring consistent maintenance.

✨ Product Features

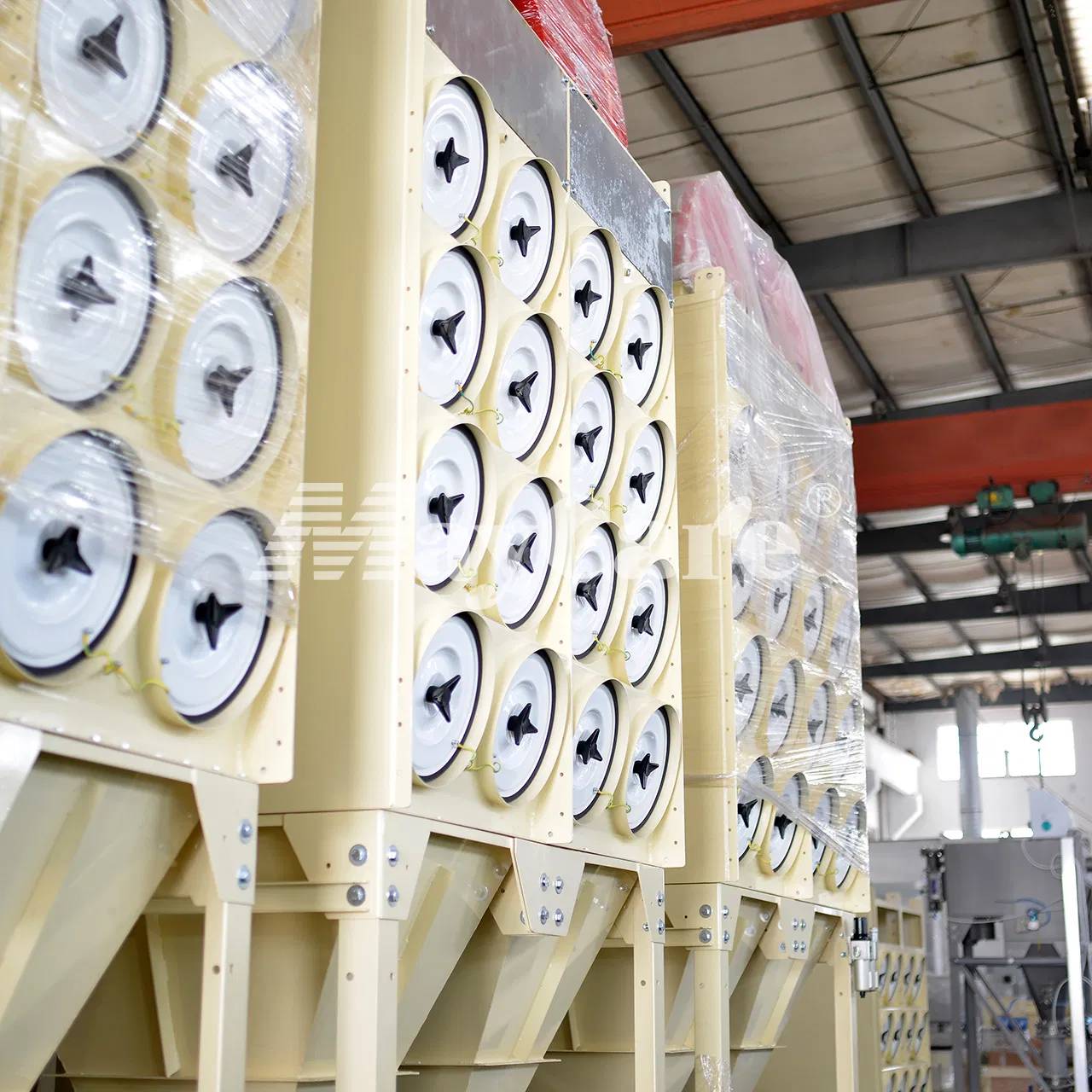

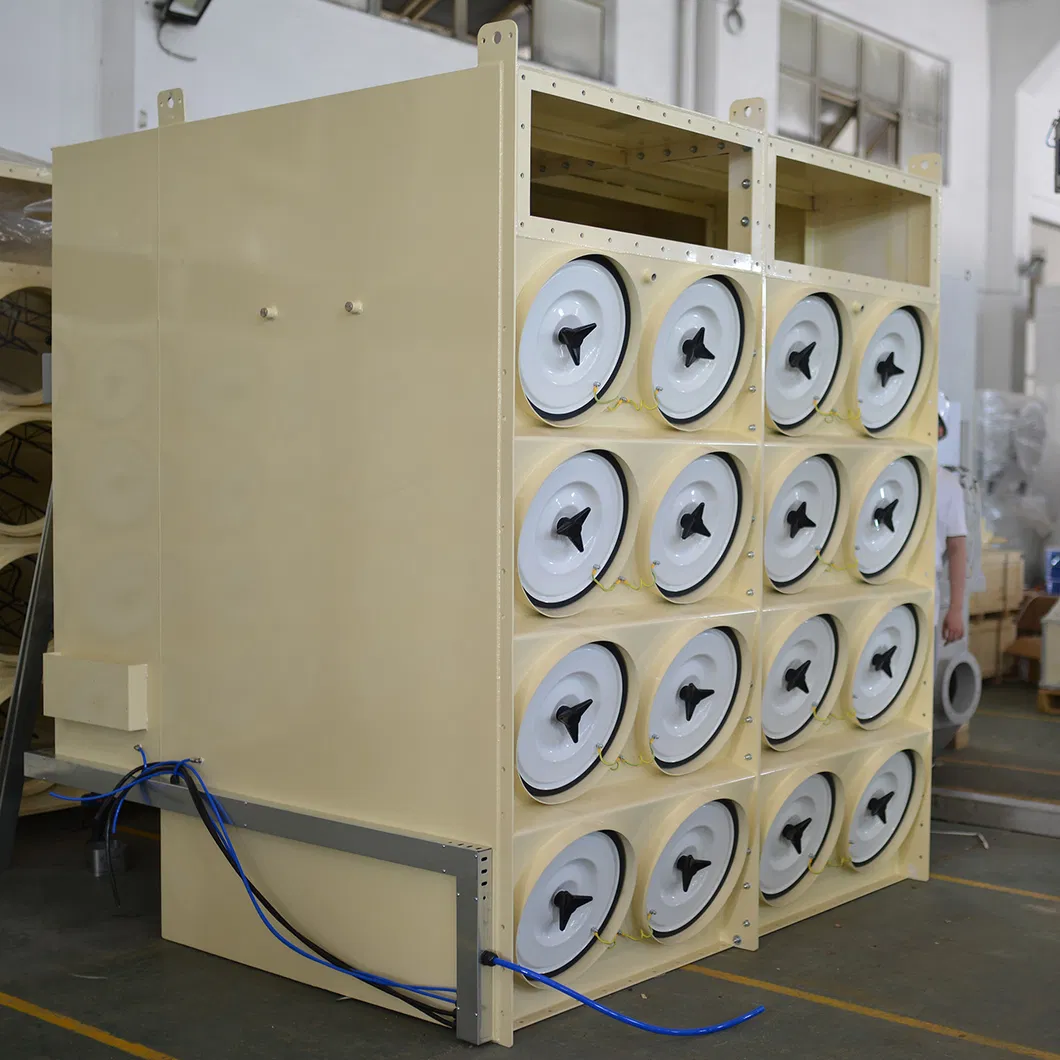

Horizontal Industrial Cartridge Filter Dust Collector

Filtration Technology: Advanced filtration coupled with a high-pressure pulse automatic cleaning system, significantly enhancing component lifespan.
Modular Design: Compact structure that optimizes space utilization and reduces floor space requirements.
Easy Maintenance: Designed for straightforward installation and rapid filter element replacement to minimize downtime.
Advanced Software: Validated by FLUENT fluid analysis software to mitigate friction damage and promote longevity.
Custom Fan: Professionally engineered custom fans ensure safe and reliable industrial operation.

📋 Product Parameters

Model	Size (W x L x H mm)	No. of Filters	Filter Area (m²)	Airflow (CMH)
IDC2-4	1023x1618x2295	4	80	2400~3200
IDC2-8	1023x2140x2820	8	160	4800~6400
IDC2-12	1532x2140x2820	12	240	7200~9600
IDC3-6	1023x1618x2768	6	120	3600~4800
IDC3-12	1023x2140x3294	12	240	7200~9600
IDC4-16	1023x2140x3767	16	320	9600~12800
IDC4-32	2040x2410x3767	32	640	19200~25600
IDC4-64	4080x2140x3767	64	1280	38400~51200

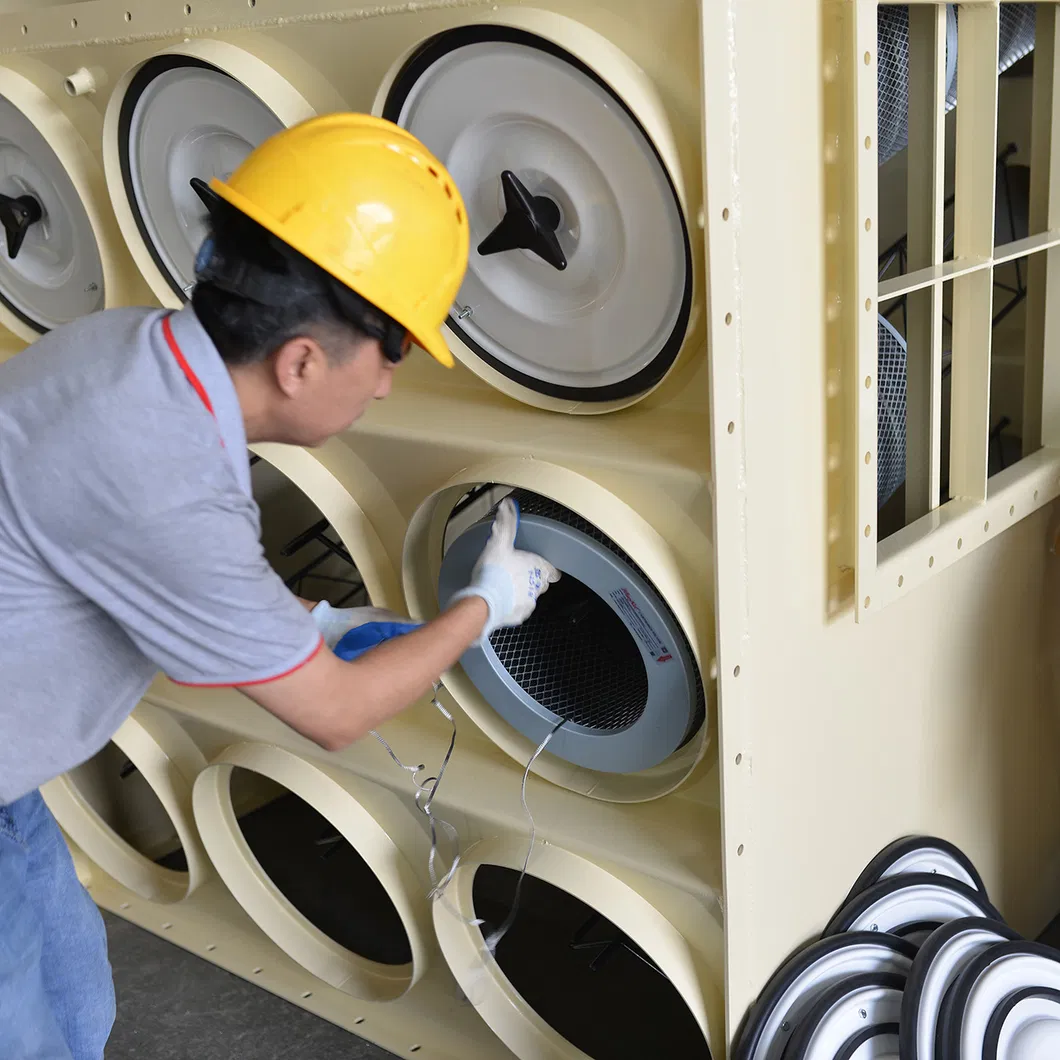

🏗️ Dust Collector Structure

🌍 Industrial Application

Our state-of-the-art dust control solutions are tailored for a multitude of industries, ensuring a pristine and secure environment for your workforce. Key industries include:

Electronics & Lithium Batteries
Shipbuilding & Smelting
Non-ferrous Metal Processing
Chemical Industry & Pharmaceuticals
Grain & Food Processing
Textiles & Fiberglass

✅ Successful Cases

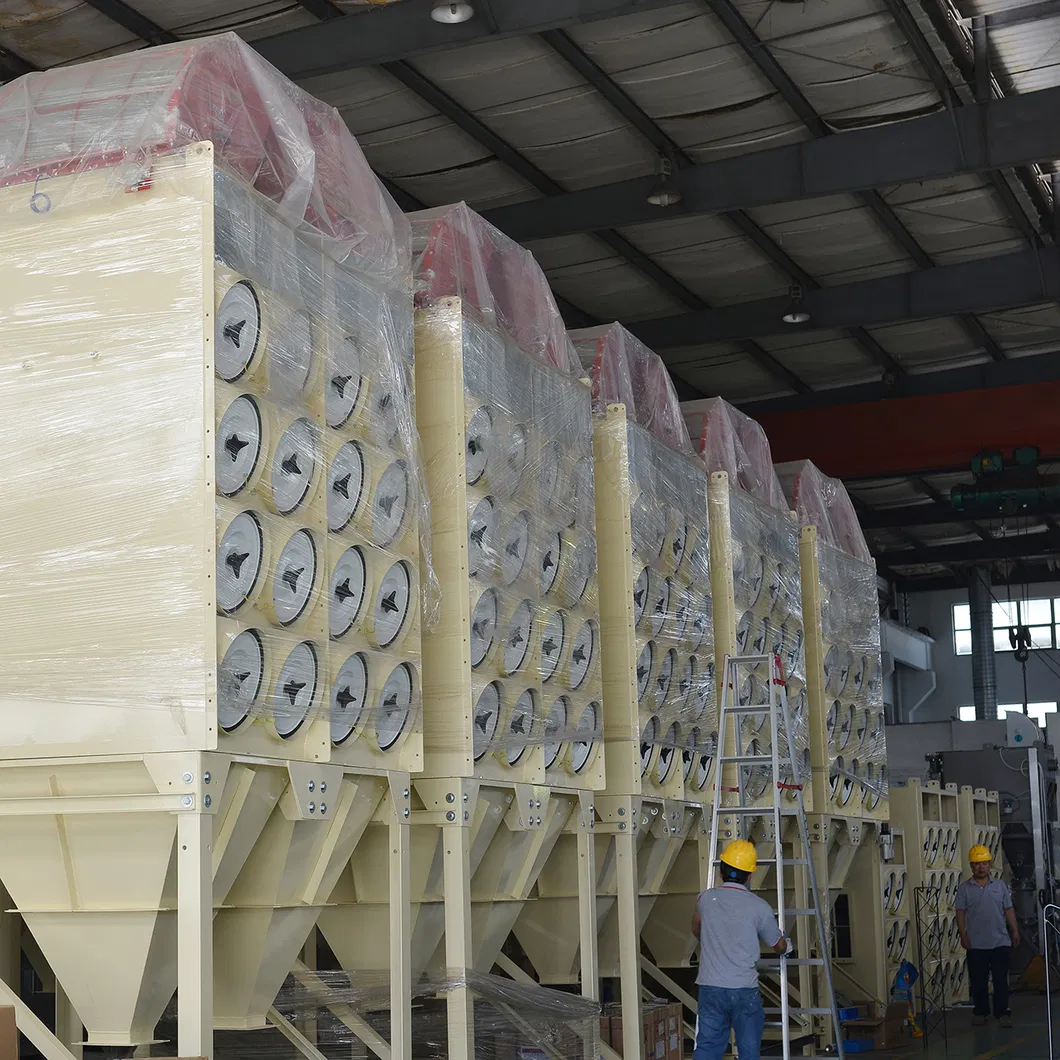

📦 Packaging & Shipping

❓ Frequently Asked Questions

Q1: Are you a professional manufacturer?

A: Yes, we are a professional manufacturer in China with over 16 years of experience specializing in industrial dust collection systems.

Q2: What are the key strengths of your equipment?

A: We offer excellent filtration technology, modular design for space-saving, professional R&D support, and CE certification for all our dust collector equipment.

Q3: What information is needed for a quote?

A: To provide an accurate quotation, we need details on the dust type, dust size, required airflow, working temperature, and emission requirements.

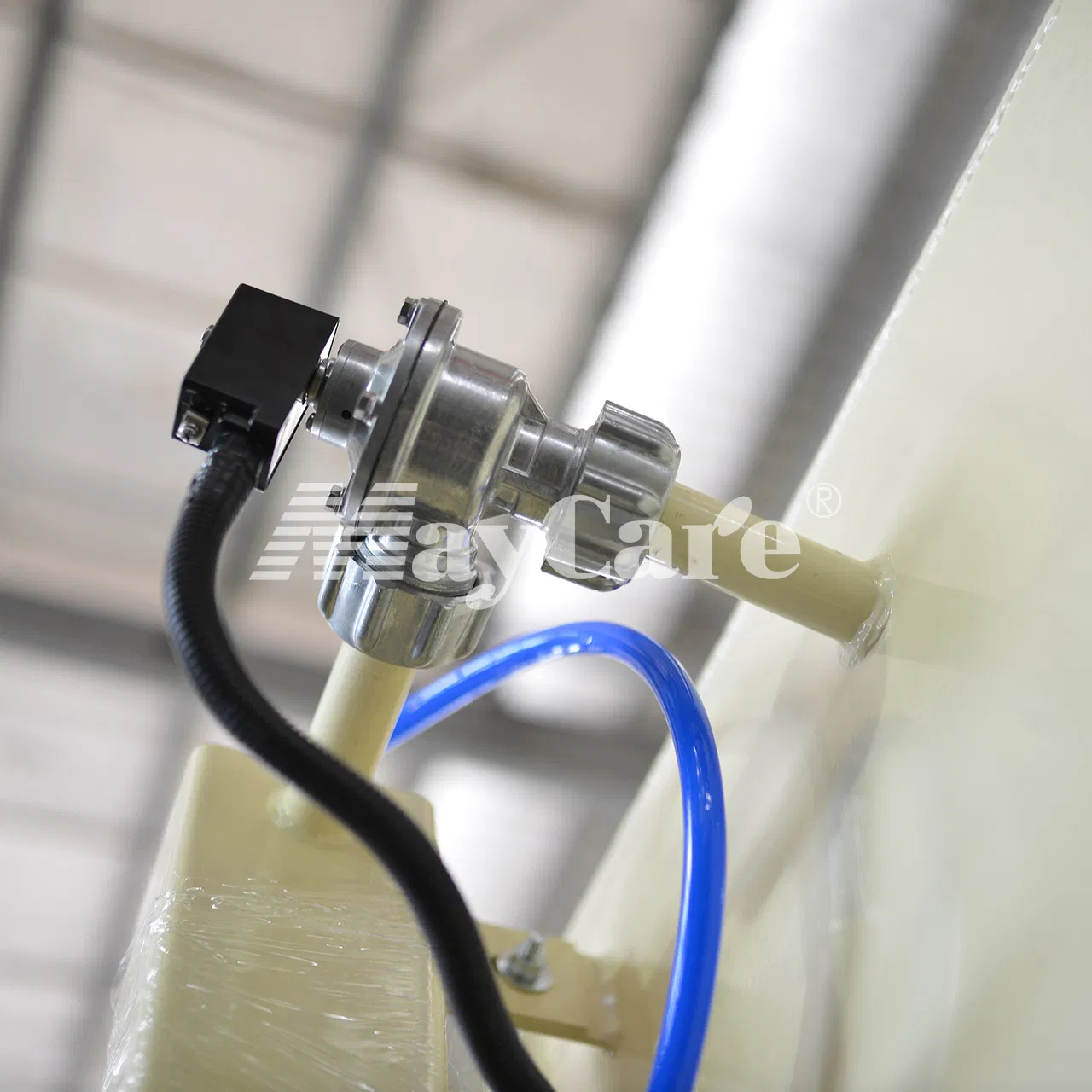

Q4: How does the pulse jet cleaning system work?

A: It uses high-pressure compressed air directed through the center of the filter cartridges to automatically dislodge dust, ensuring continuous operation without manual intervention.

Q5: What is your product range?

A: Our range includes complete dust collector units, air filter cartridges, and integrated duct systems for various industrial applications.

Q6: Is customization available for specific airflow requirements?

A: Yes, our modular design allows us to customize the airflow from 2,400 to over 80,000 CMH to meet your specific facility needs.
