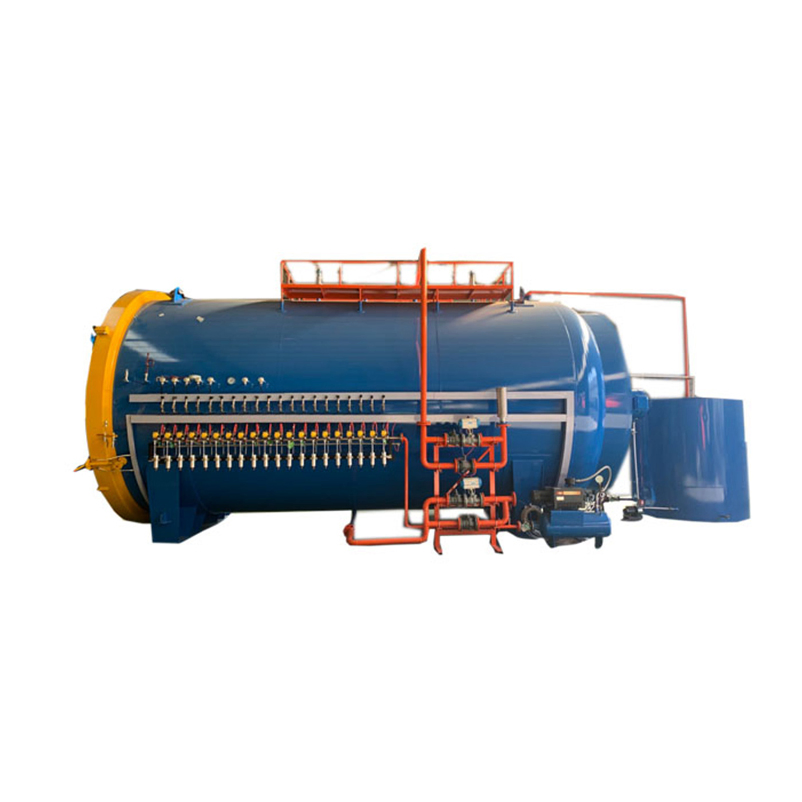

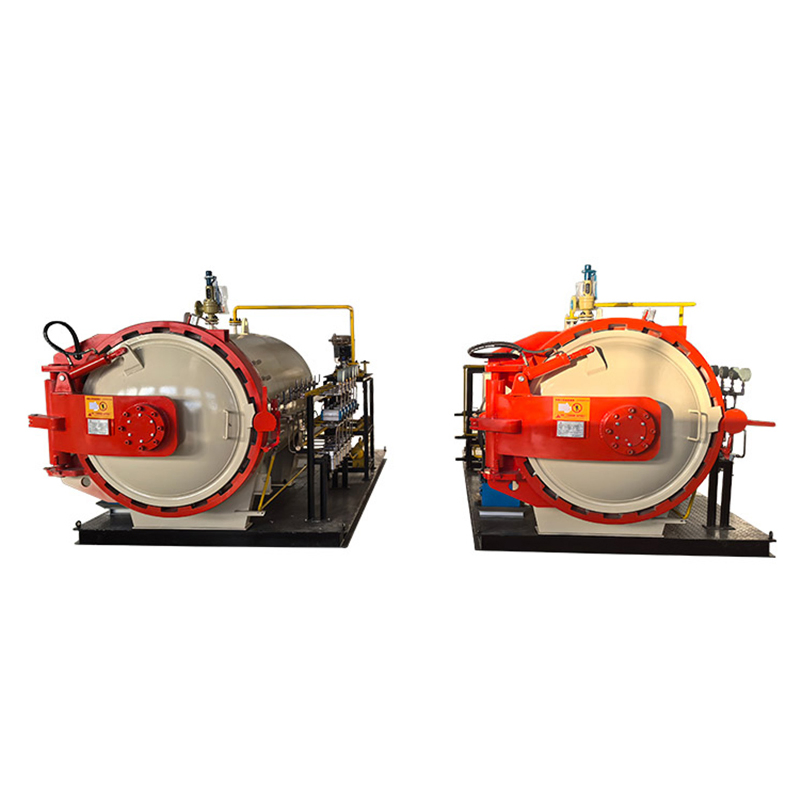

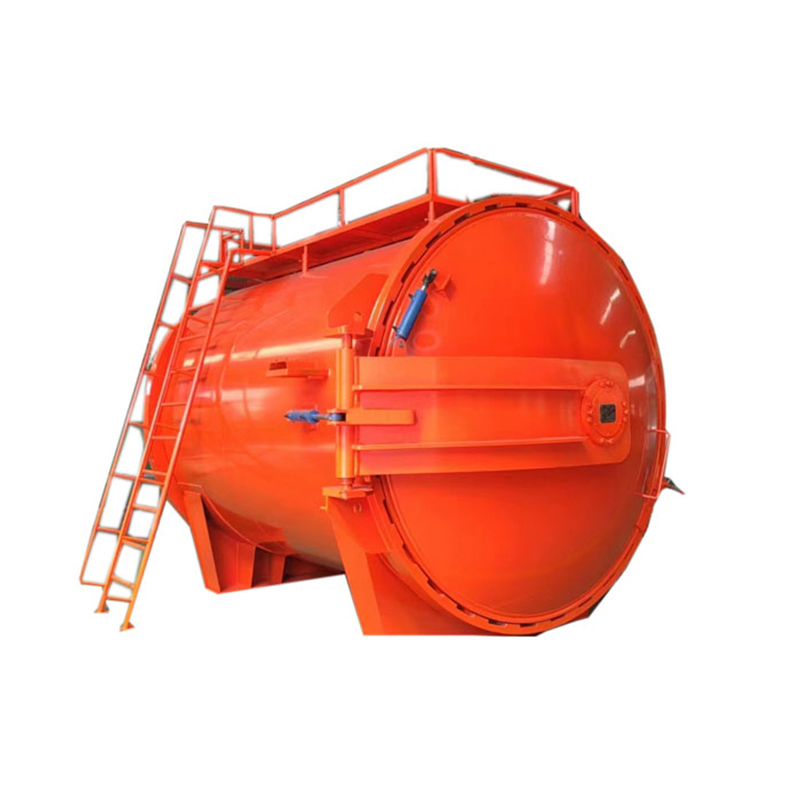

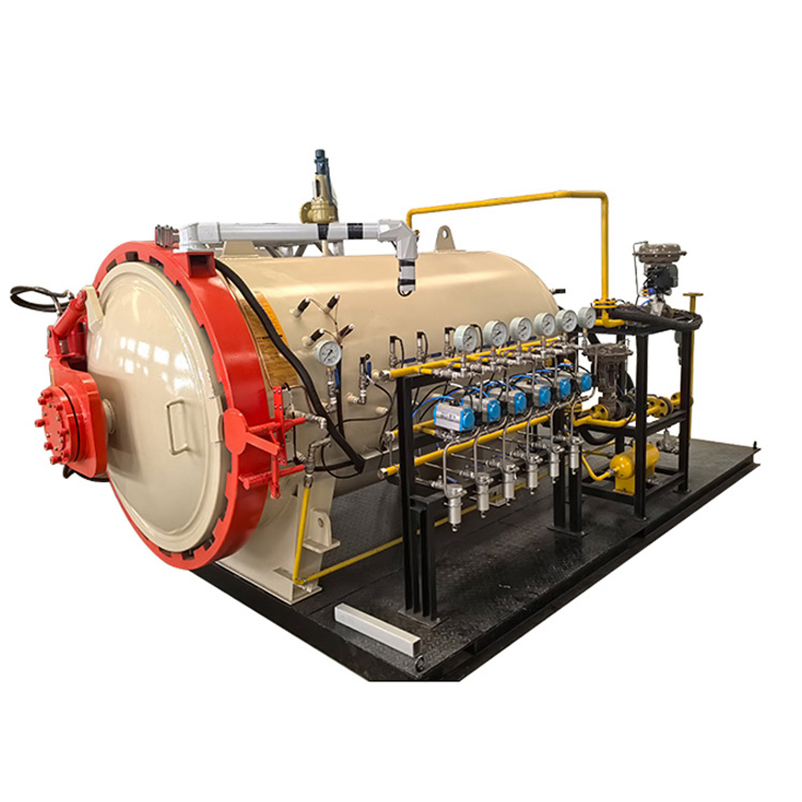

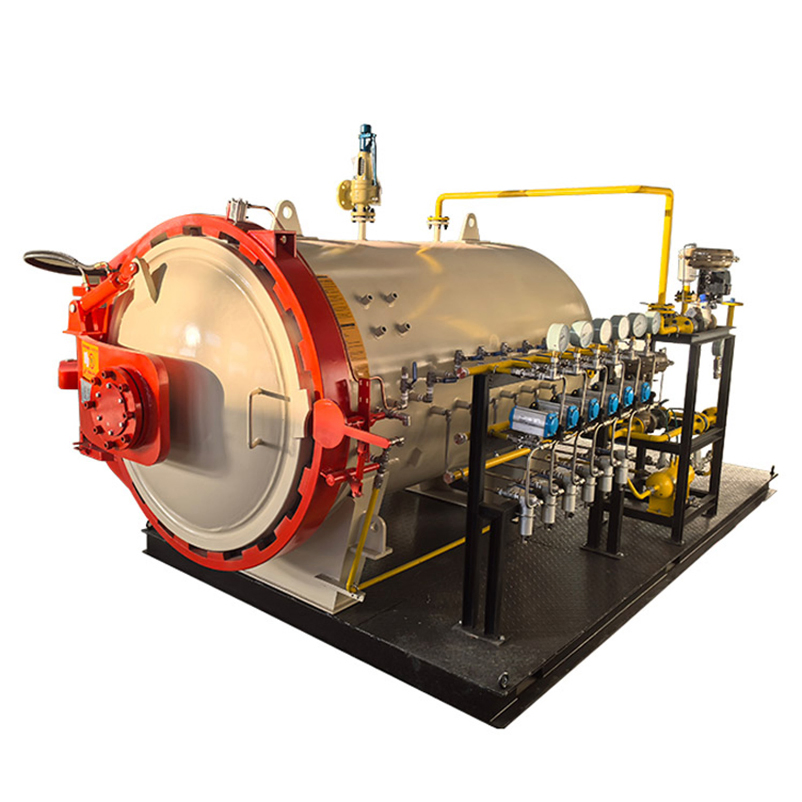

Lab Safety Enhanced Pressure Controlled Experimental Autoclave Composite Autoclave

Customization:	Available
After-sales Service:	1 Year
Warranty:	2years

Overview & Basic Info

Function

Heat Pressure Vessel

Application

Car Industry, Medical, Aviation Field, Sports

Material

Carbon Steel

Pressure

0.5-5.0MPa

Storage Medium

Hot Air or Nitrogen

Pressure Level

1.0-4.5MPa

Design Diameter

0.5-4.5m

Design Length

1m - 60m

Control Ways

PLC Control

Heating Ways

Electricity Heating

Cooling Ways

Wind Cool and Water Cool

Certificate

CE ASME Erc

Product Description

Item	Laboratory Autoclave	Small Sized Autoclave	Medium sized Autoclave	Large sized Autoclave
Working diameter (mm)	600-1000	1000-2000	2000-3500	3500-4500
Working length (mm)	800-1500	1000-3000	3000-12000	6000-20000
Max temp (ºC)	160-450	160-450	160-450	160-450
Max pressure (Mpa)	1.0-5.0Mpa	1.0-5.0Mpa	1.0-5.0Mpa	1.0-5.0Mpa
Heating Rate (ºC/min)	0.5-6	0.5-6	0.5-6	0.5-6
Vacuum ports	2-60	2-60	2-60	2-60

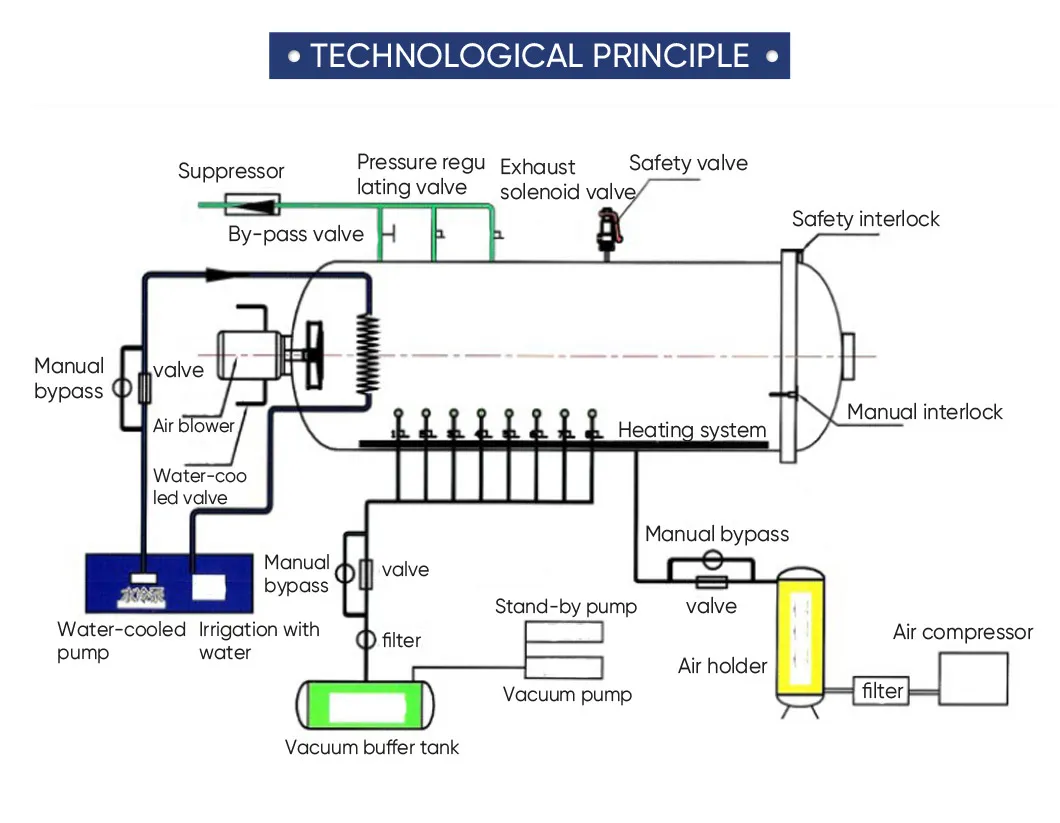

★ Technical Innovation

Composite autoclave is a device for curing composite materials under high pressure and temperature. Heat and pressure cause the resin in the composite to cure, resulting in a rugged finished product with high temperature and pressure control precision, structural safety, low energy consumption, and easy maintenance.

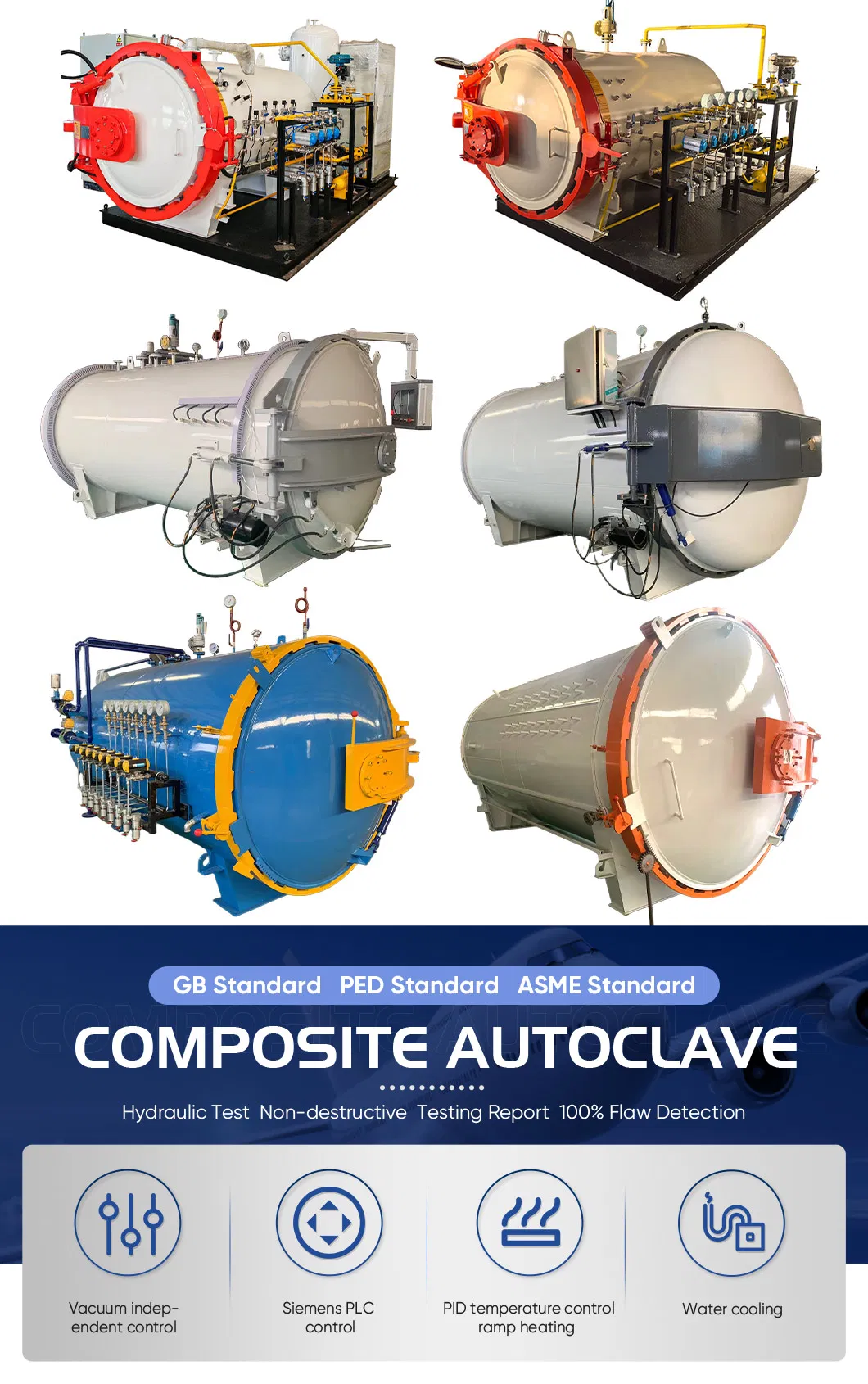

Product Advantages

Buyer Feedback

Professional Profile

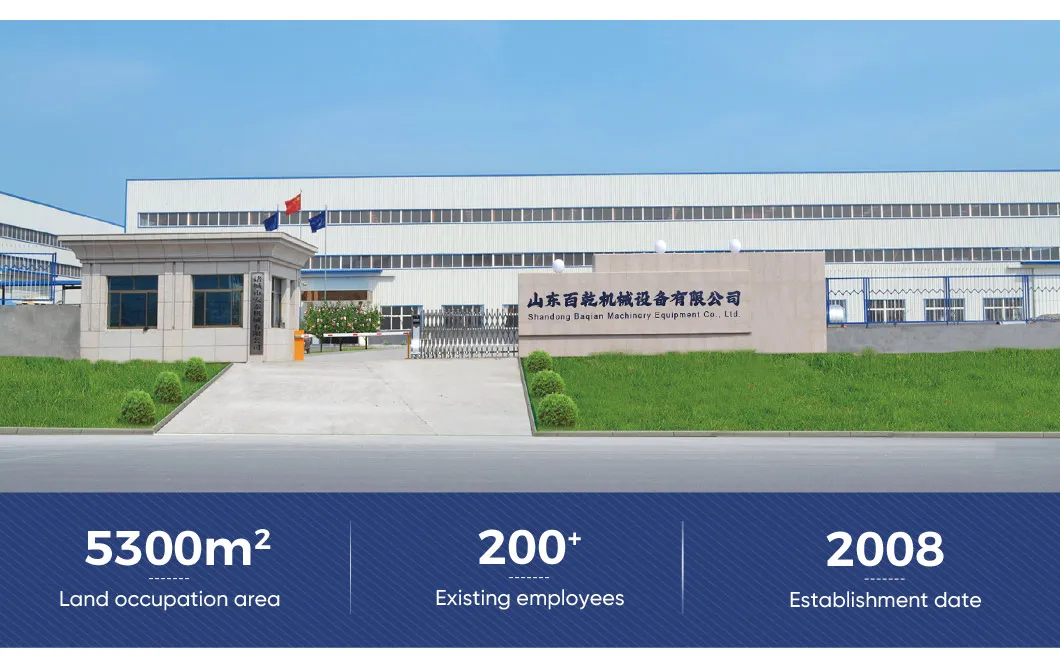

Established in 2008, we have more than 15 years of experience in pressure vessels. Our factory covers an area of 5300 m² and is a modern new-type equipment manufacturing enterprise integrating design, manufacture, and sales.

Our main products include pressure vessels such as wood impregnation equipment, rubber curing autoclaves, composite autoclaves, wood drying machines, and food sterilizers. All equipment can be customized according to product process requirements. We have obtained ISO, CE-PED, and CU-TR certificates, with products exported to many countries including Philippines, Uganda, Switzerland, America, and Russia.

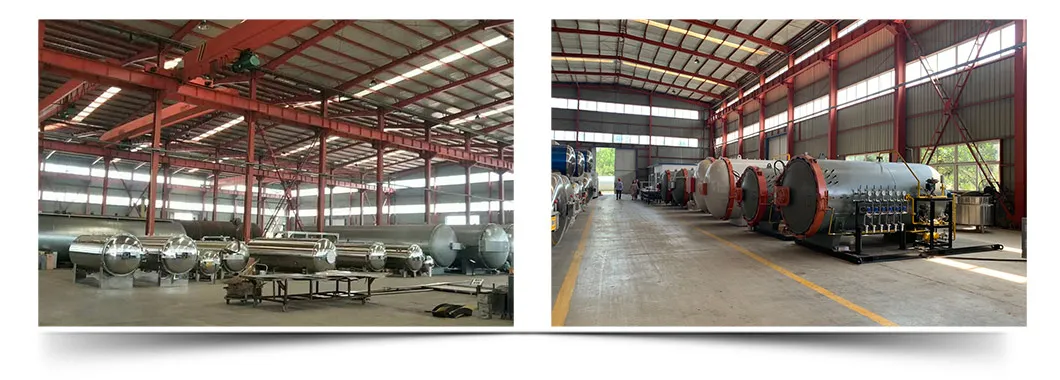

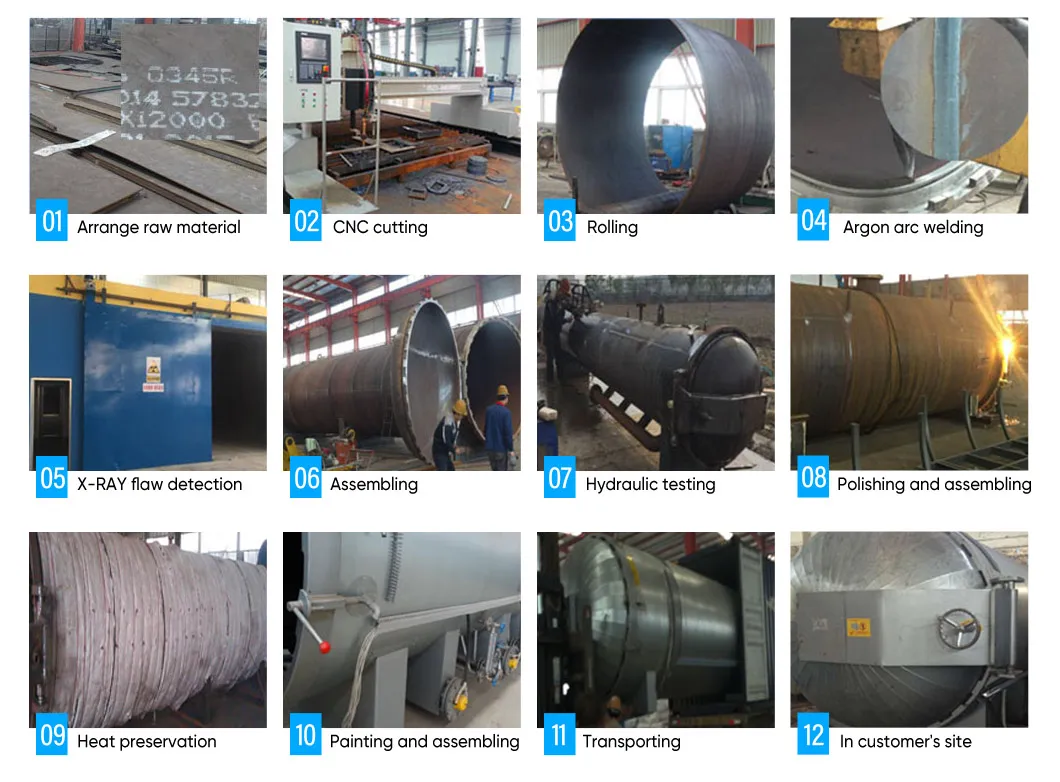

Production Line & Exhibition

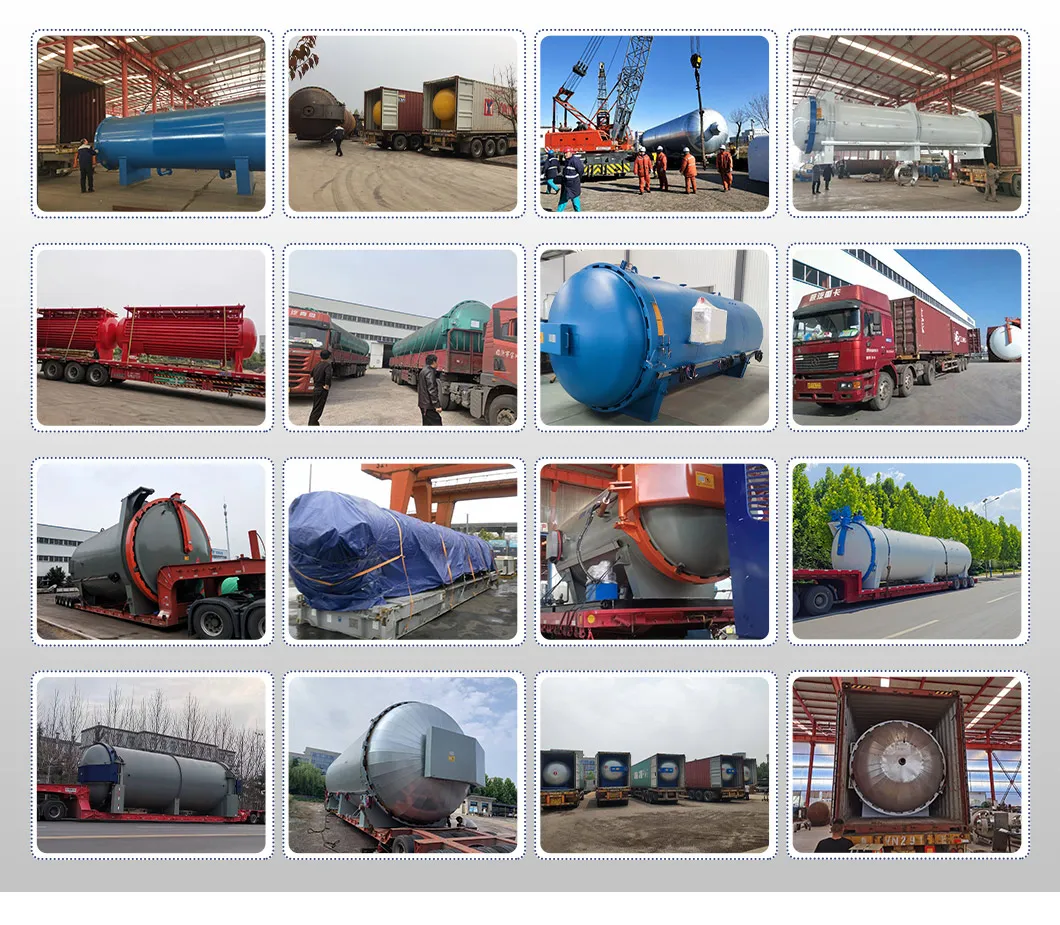

Packaging & Shipping

Frequently Asked Questions

How to choose suitable equipment?

You can provide us with your product size and technological requirements, and our engineers will design a customized solution for you.

How can I get a price quote?

Please provide the product name, required working pressure, working temperature, vacuum demand, and cooling demand for an accurate quote.

Do you supply technical drawings?

Yes, after the deposit is confirmed, we provide general assembly drawings and layout drawings for your facility.

How do I install the equipment?

For small units, we use an assembled design ready for immediate use. For large equipment, we provide assembly drawings and offer online or overseas installation services.

What is the warranty period?

The standard warranty is one year. Special requests for 2-3 years warranty can be accommodated based on requirements.

What is the maximum size you can manufacture?

We can manufacture up to 4.5m in diameter (limited by transportation) and up to 100m in length, with pressures ranging from 0.1-5.0Mpa.
