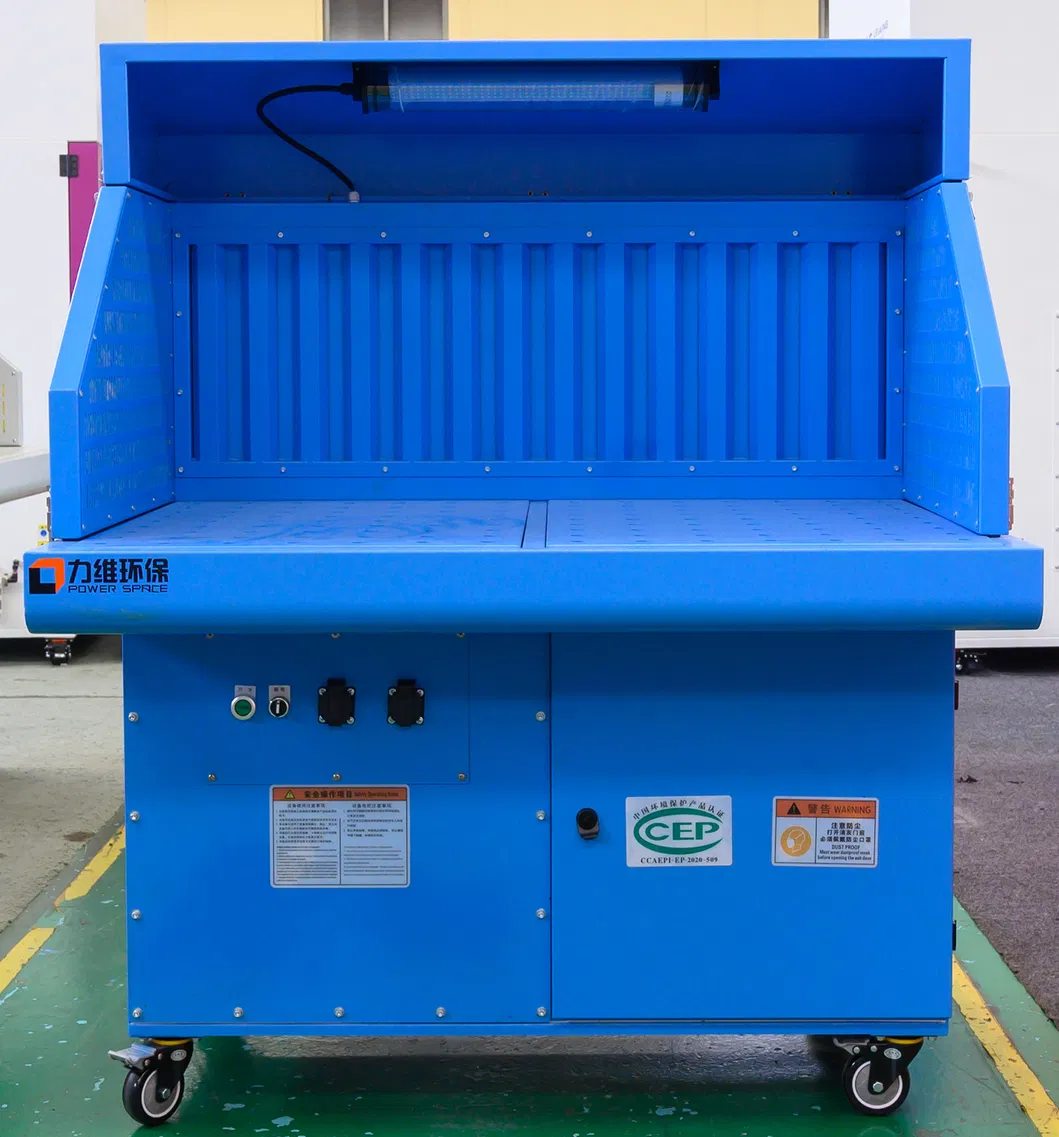

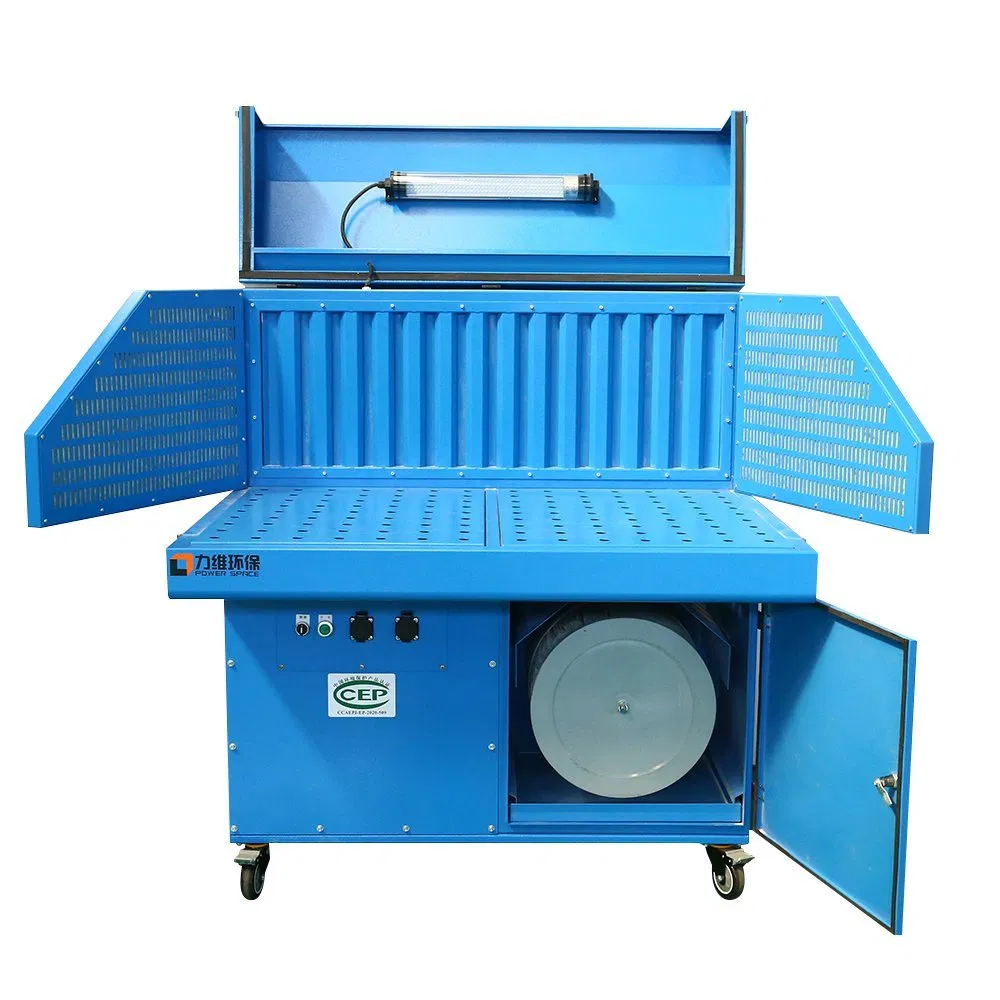

Industrial Dust Collection Systems Manufacturers

📋

Basic Info.

Model NO.

LW14-022W130E

Operation Type

Automatic

Medium Material

Chemical Synthetic Fiber

Dust Collecting Method

Dry

Type

Filter Cartridge Dust Collector

Dimension

1300*1015*1515mm

Process Capacity

2000m3/H

Motor Power

2.2kw

Voltage

3*380V/50Hz(Customizable)

Noise

Under 70dB

Filter Cartridge

1PC

Filter Brand

Ahlstrom

Filter Element

Nano Flame Retardant Filter Element

Filter Efficiency

99.9%

Filter Area

16.5m2

Compressed Air

0.4-0.6MPa

Transport Package

Plywood Case

HS Code

8421392990

💎

Product Description

Model	LW14-022W130E	LW14-030W130E	LW14-030W150E	LW14-030W180E
Dimension	130010151515mm	130010151530mm	150010151530mm	180010151530mm
Process Capacity	2000m³/h	2400m³/h	2400m³/h	2400m³/h
Motor Power	2.2KW	3KW	3KW	3KW
Noise	<=70db	<=70db	<=70db	<=70db
Filter Efficiency	0.3μm; >=99.9%
Filter Element	Ahlstrom nano flame-retardant

Main Advantages:

01

Famous Brand Motors

Equipped with overload and over current protection and high security.

02

High performance fan impeller

Self-developed high-performance Fan impeller. With high negative pressure and large air flow.

04

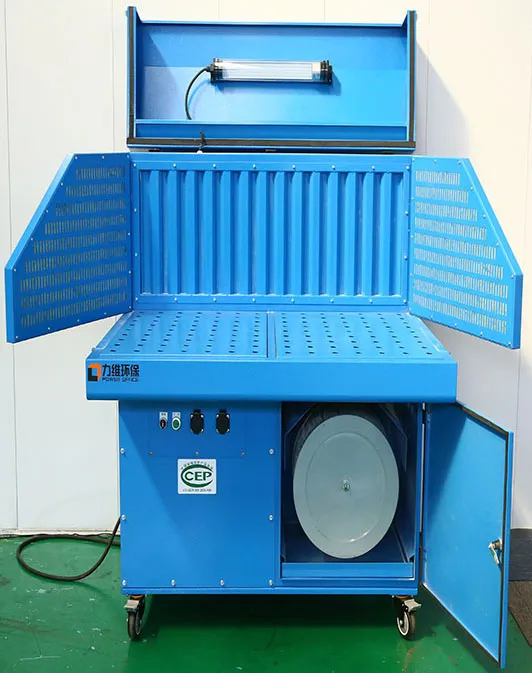

Automatic pulse blow back system

Effectively clean the filter cartridge and prolong its service life.

05

Imported high-quality filter element

Ahlstrom Nano flame-retardant filter with 99.9% efficiency for 0.3μm.

07

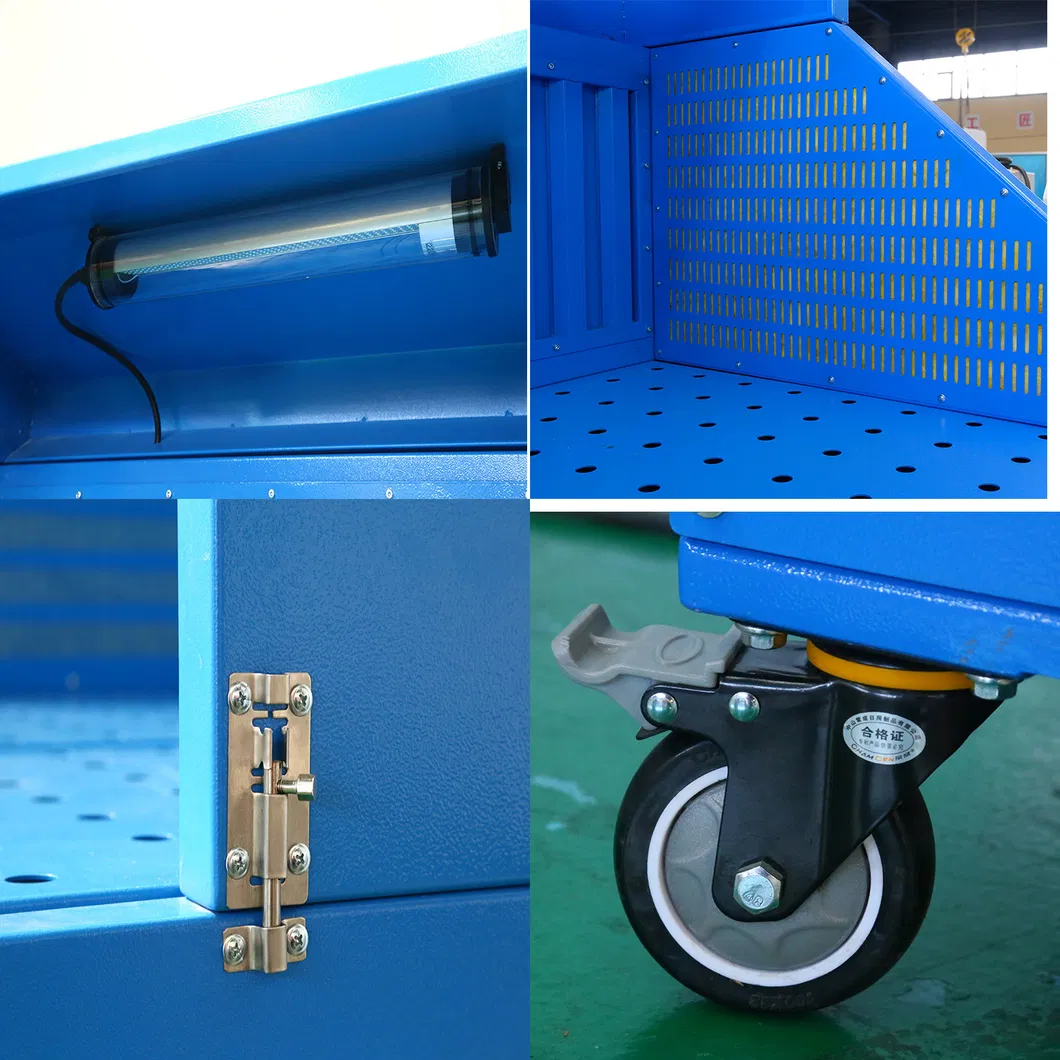

Unique box-type side baffle

Inner wall with slits to prevent splashing sparks. Built-in flame-retardant noise-absorbing fiber. Baffle opens up to 180°.

08

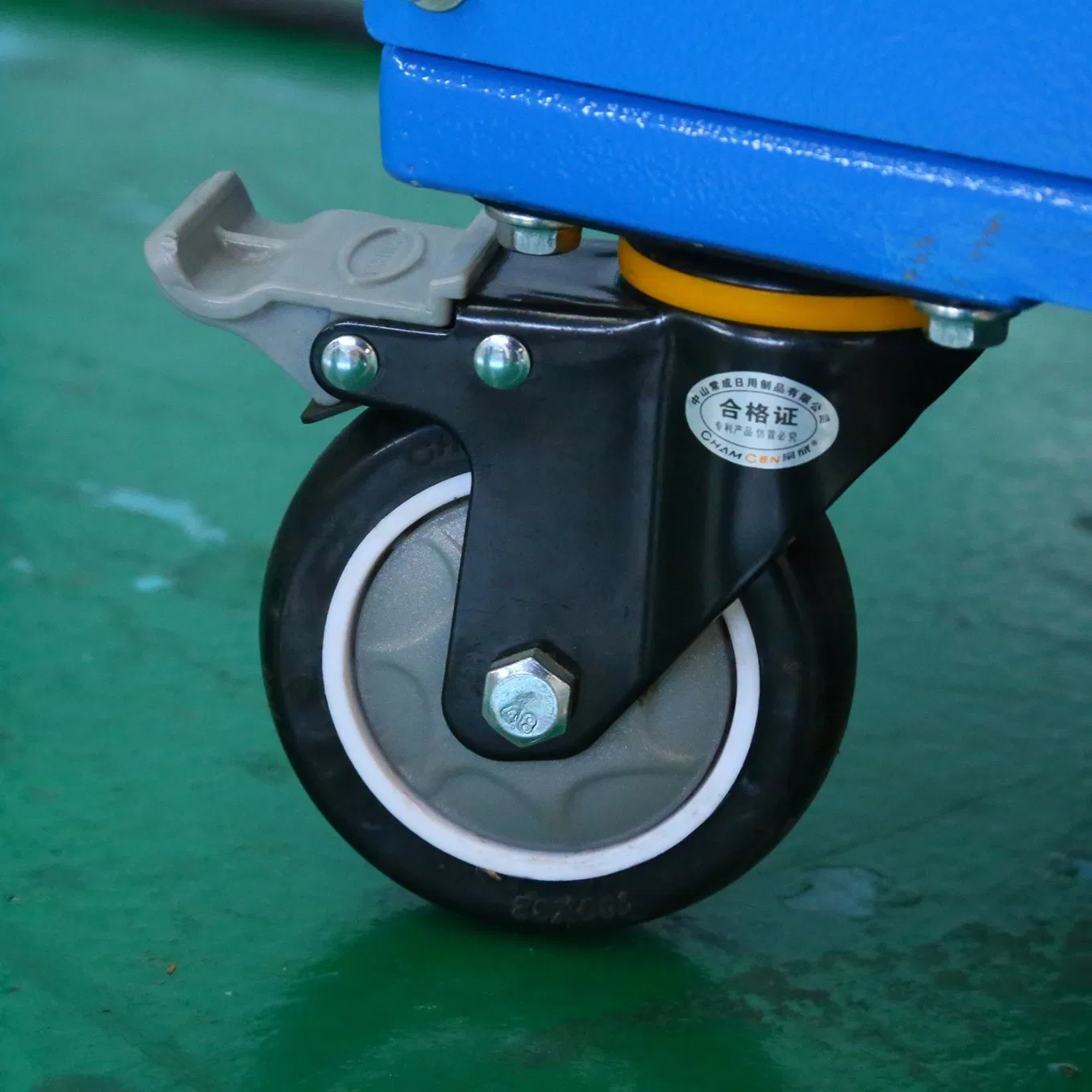

Standard Brake Casters

Flexible movement and reliable fixation for industrial environments.

09

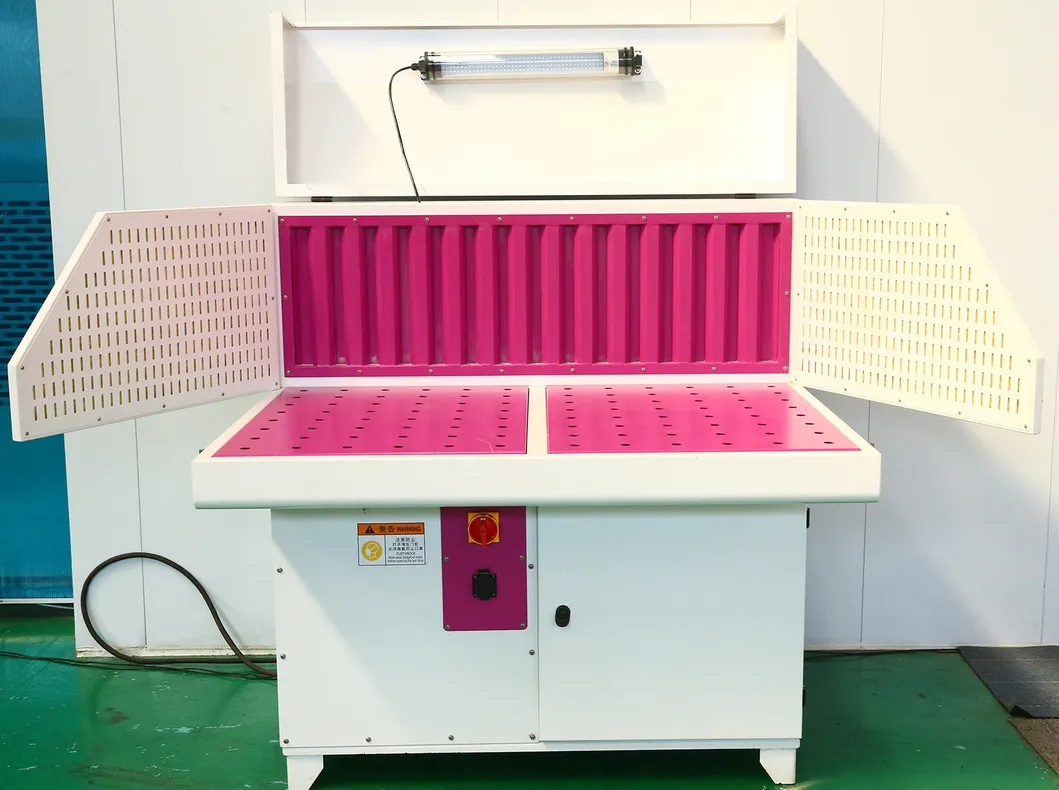

Simulation analysis & Patent design

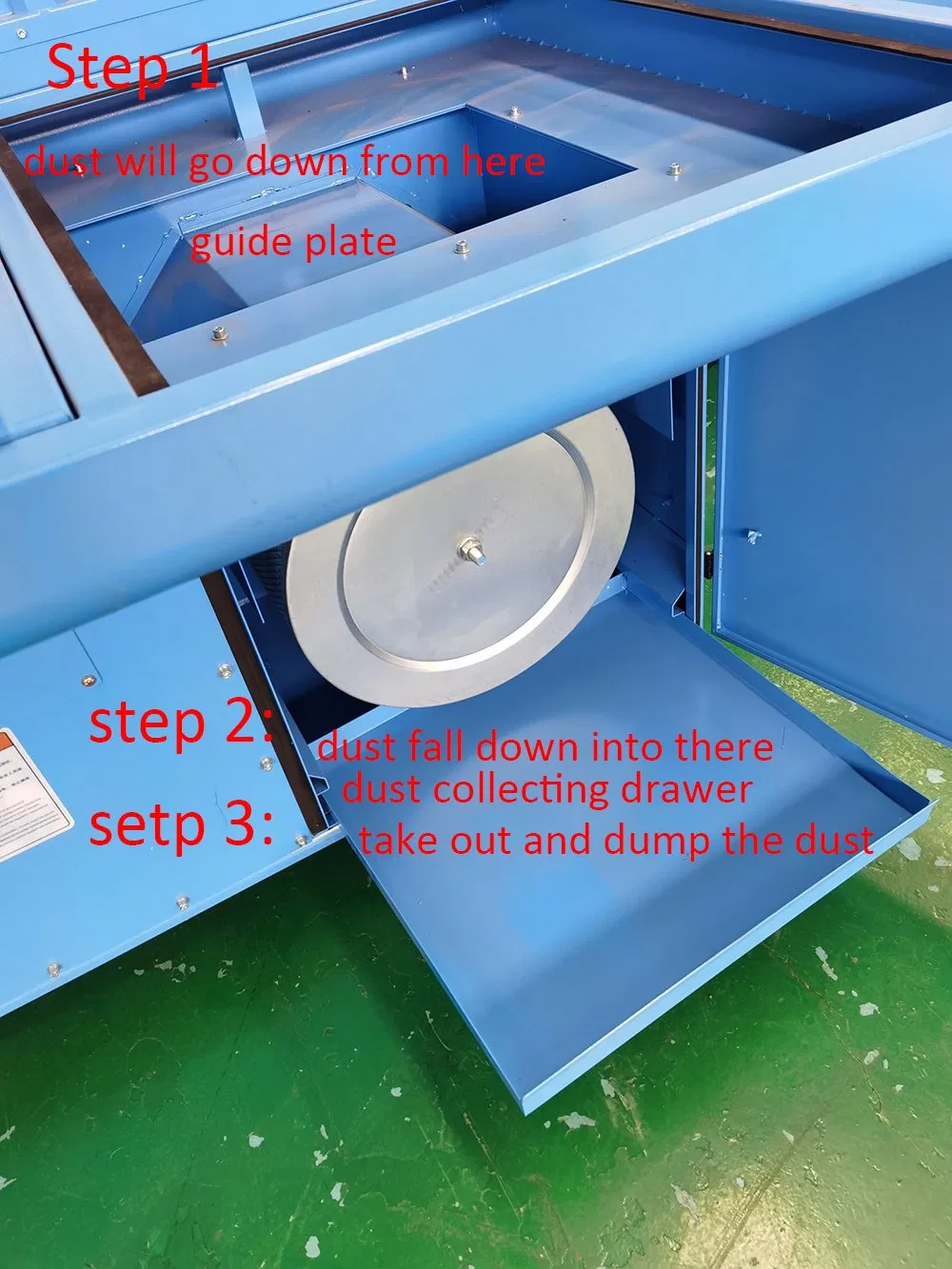

Calculation based on fluid mechanics. Semi-closed dust suppression structure ensures no escape of dust.

11

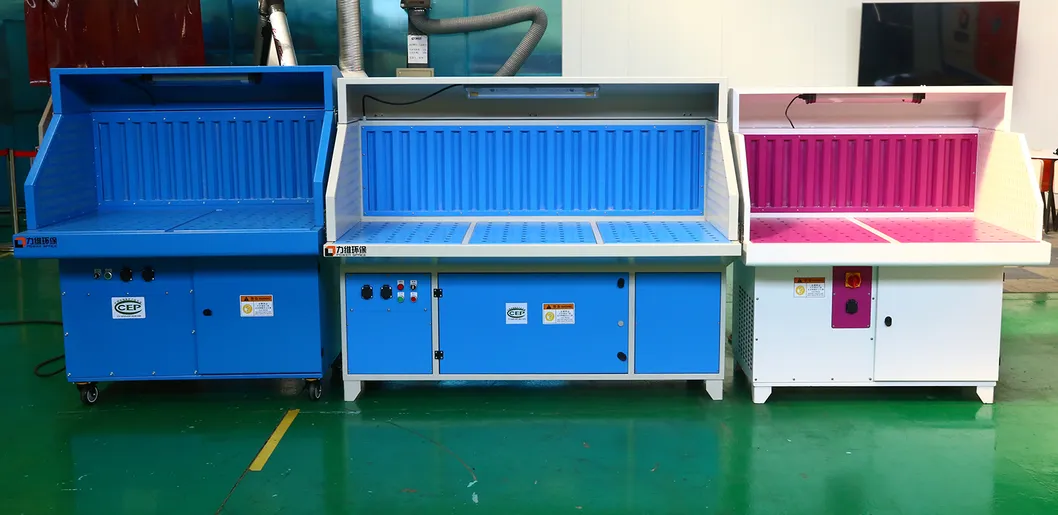

One-piece control panel

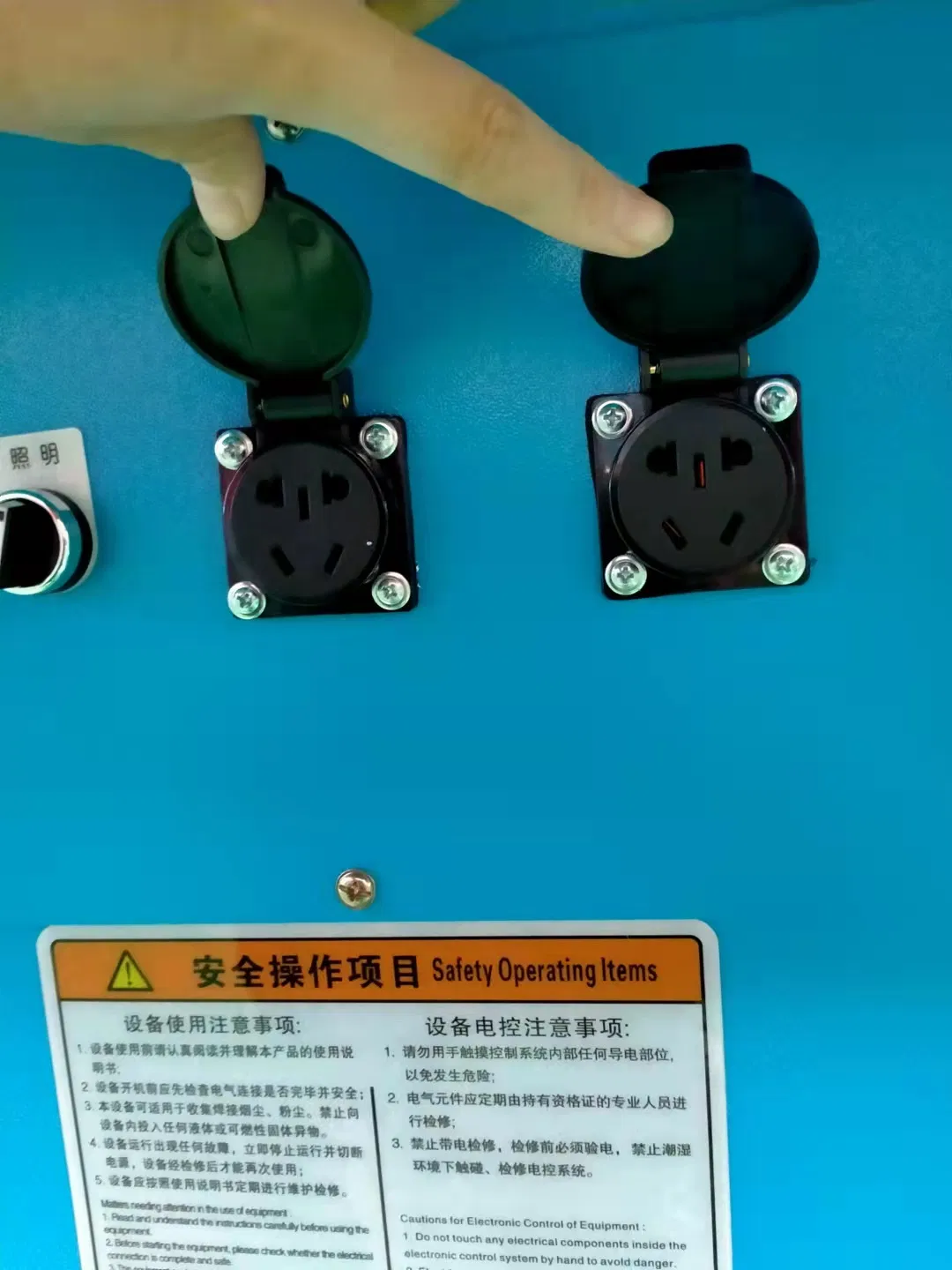

With industrial power supplies for tools. Automatic pulse jet blowing-back system integrated for easy cleaning.

📜

Certifications & Experience

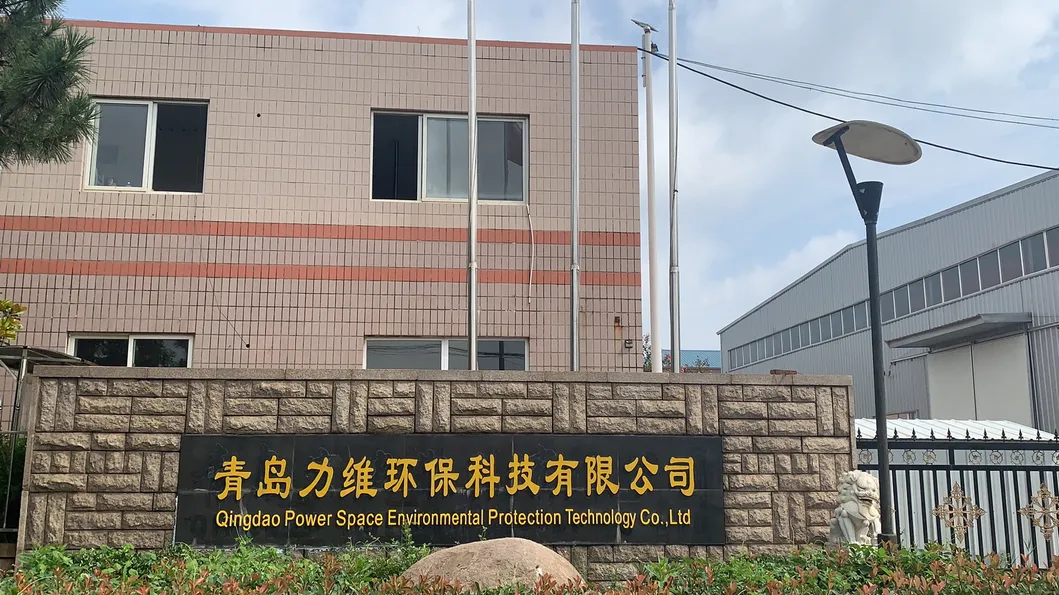

Our manufacturing facility specializes in industrial laser fume, welding, and grinding extractors for more than 12 years. We hold ISO9001, ISO14001, OHSAS18001, and European CE certifications, along with over 45 national patents.

📸

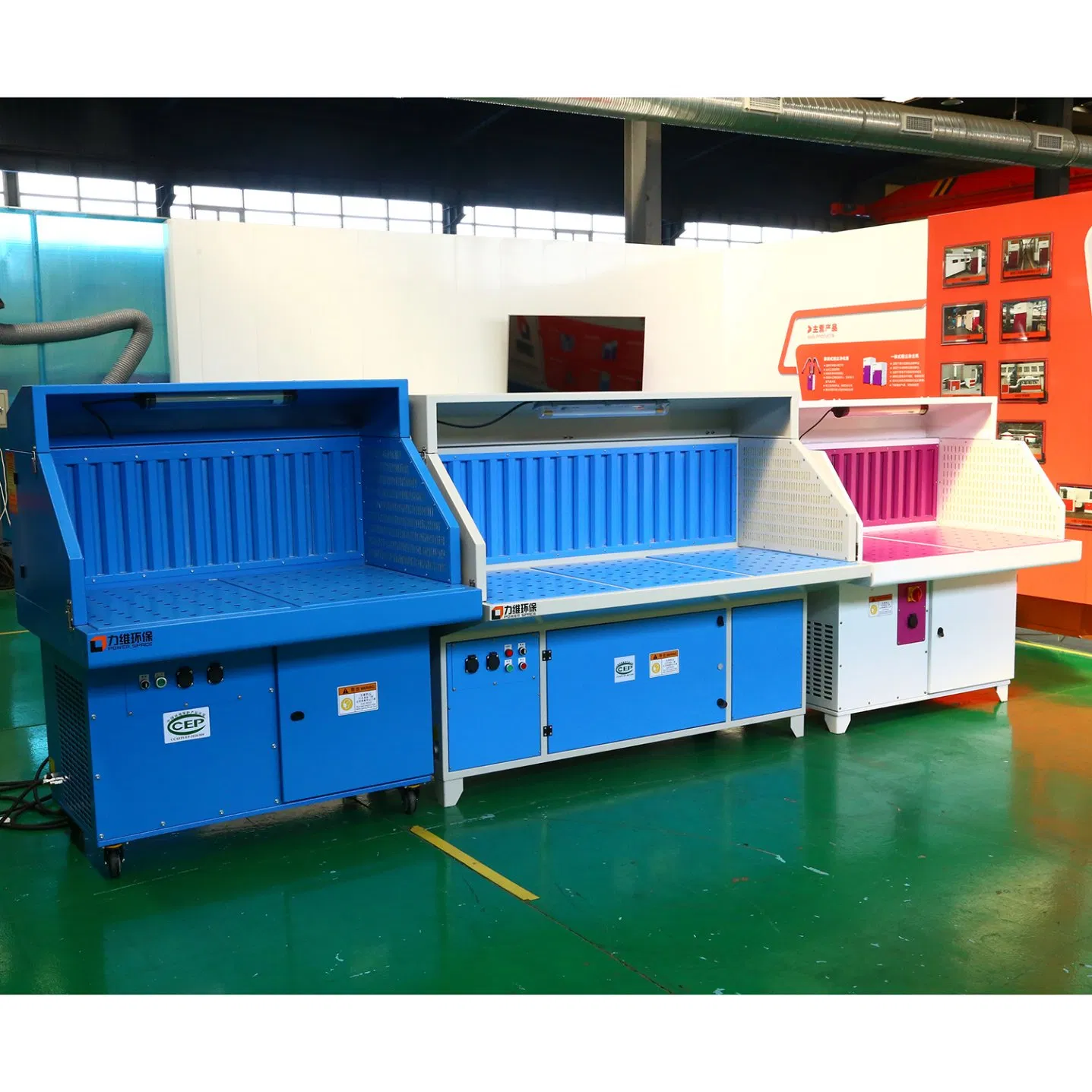

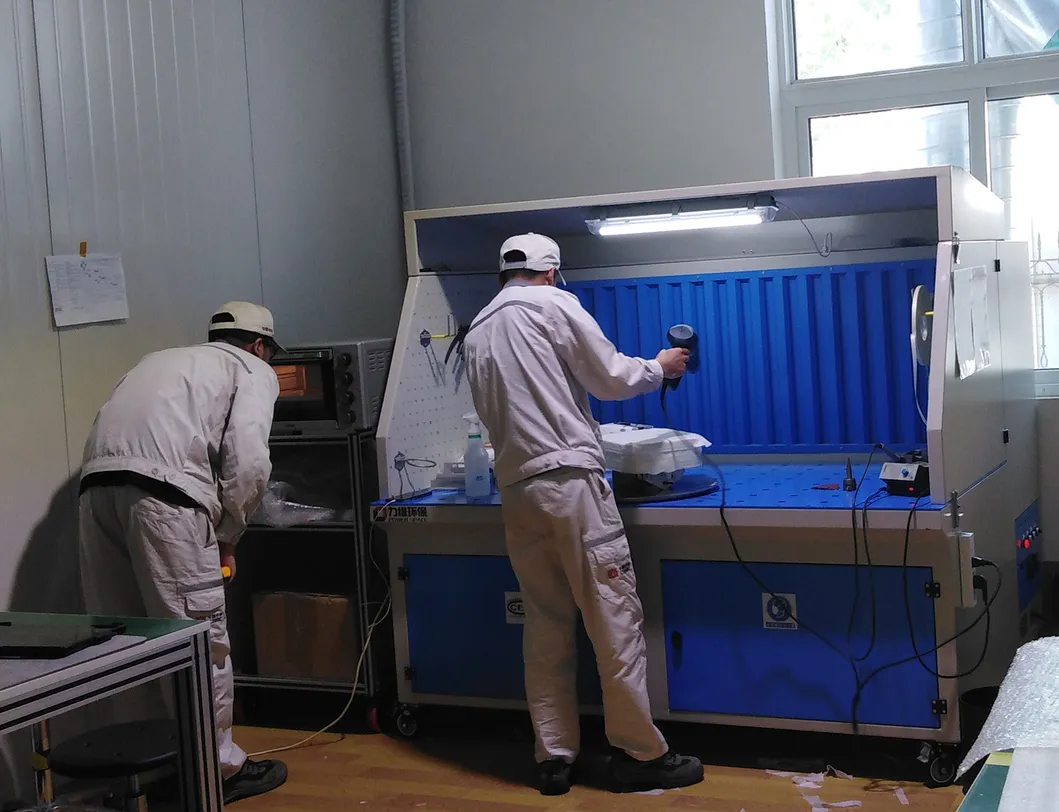

Client Showcase & Exhibition

Packing Details: 3 layers (Air bubble film + Honey Comb + Plywood Case).
Delivery: 15-20 days after deposit.

❓

Frequently Asked Questions

Do you have stock products to sell?

Yes, we maintain stock of our standard products. OEM orders are also accepted based on specific requirements.

What is the filtration efficiency of this system?

The system uses Ahlstrom Nano flame-retardant filter elements, achieving a purification efficiency of ≥99.9% for 0.3μm particles.

What kind of payment and certifications do you offer?

We accept T/T, L/C, and Credit Insurance. Our equipment is fully certified with CE and ISO standards.

What is your minimum order quantity (MOQ)?

The minimum order quantity is 1 set.

How is the after-sales service handled?

We provide lifetime free online technical support. If necessary, engineers can be available for overseas machinery service (subject to extra charges).

How long has your factory been in this field?

We have over 12 years of experience in designing and manufacturing industrial dust collection and air purification machinery.
