Basic Info.
Certification
CE, ISO13485
Group
Middle-aged and Old
Application
Medical Field
Amplitude
0.5,1.0,1.5 and 2.0mv
Channel
2-Channel IBP or 4-Channel IBP
Production Capacity
50000
Introduction

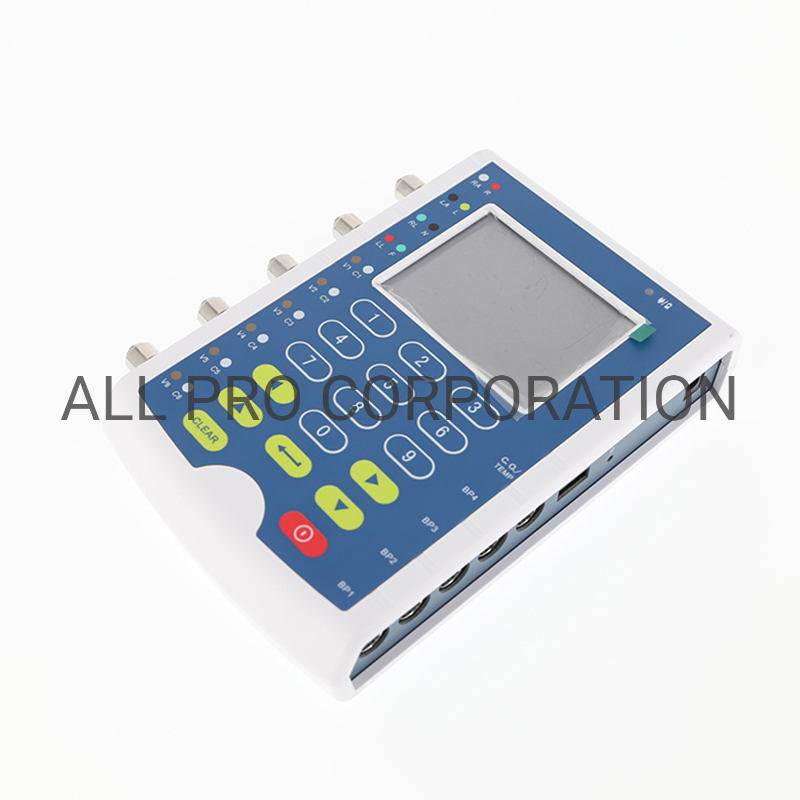

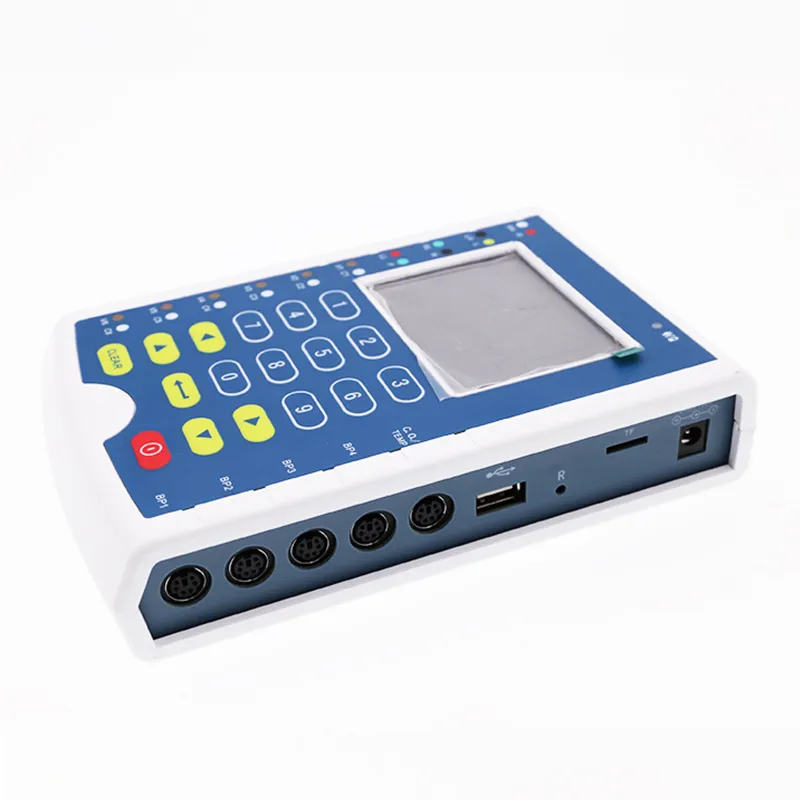

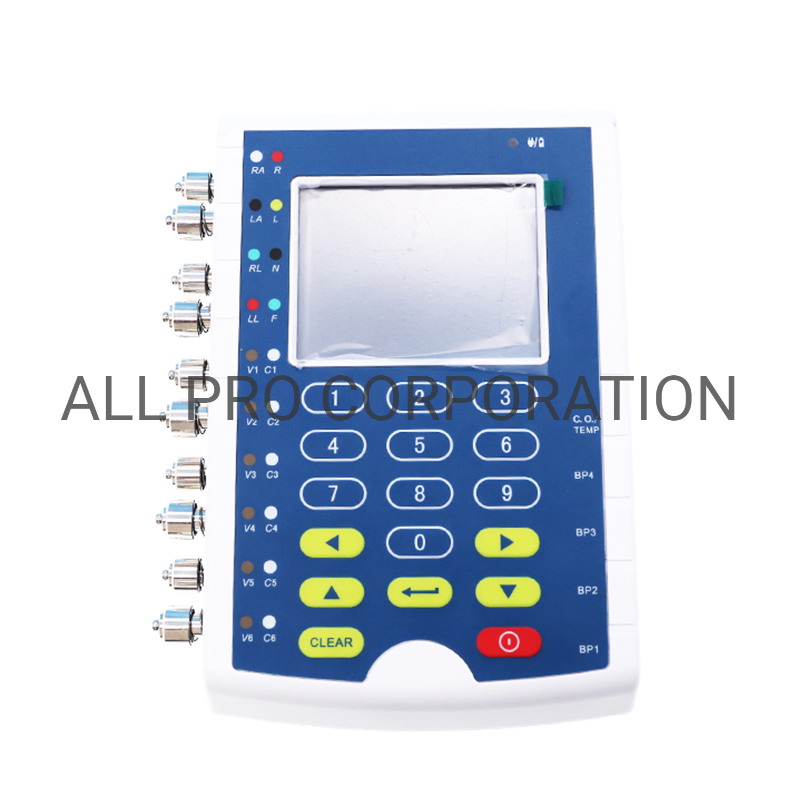

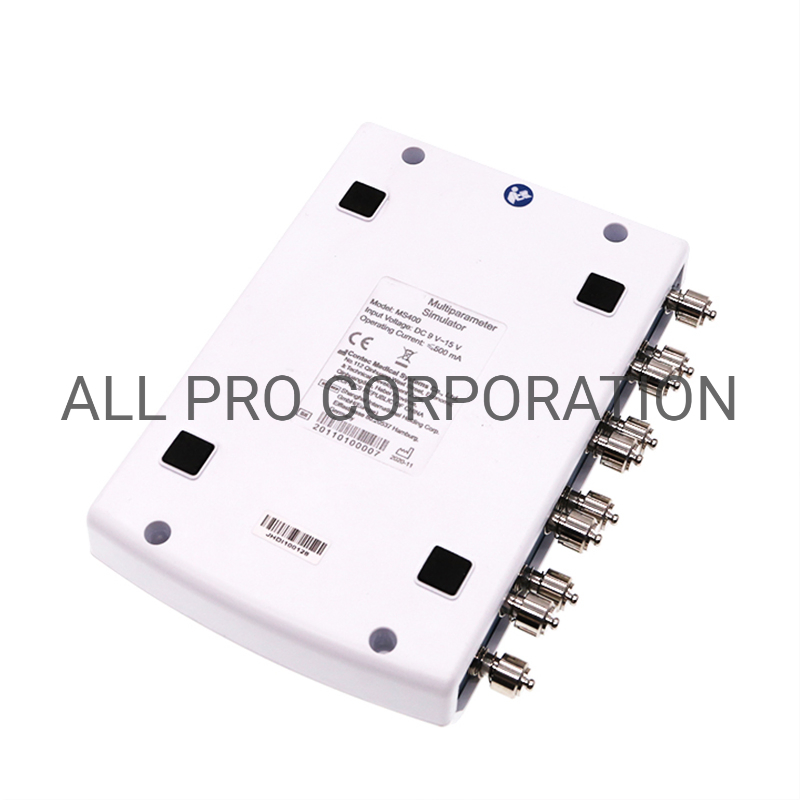

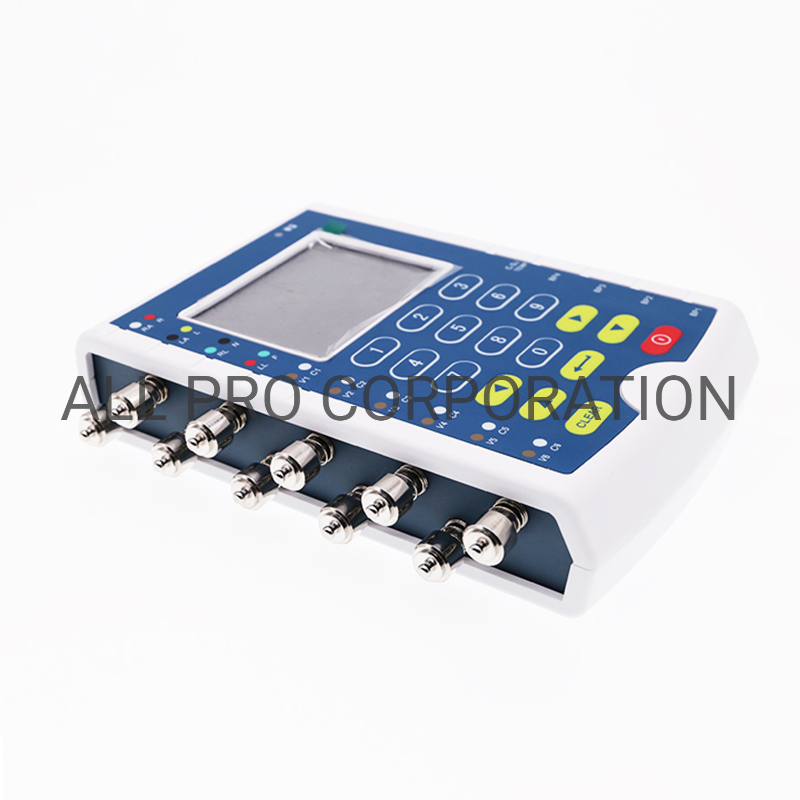

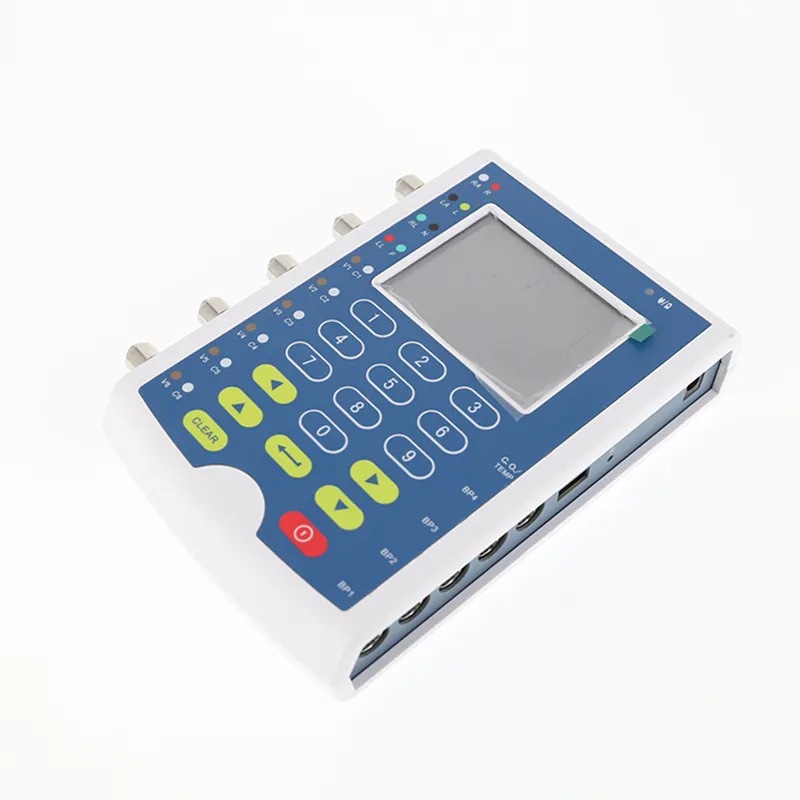

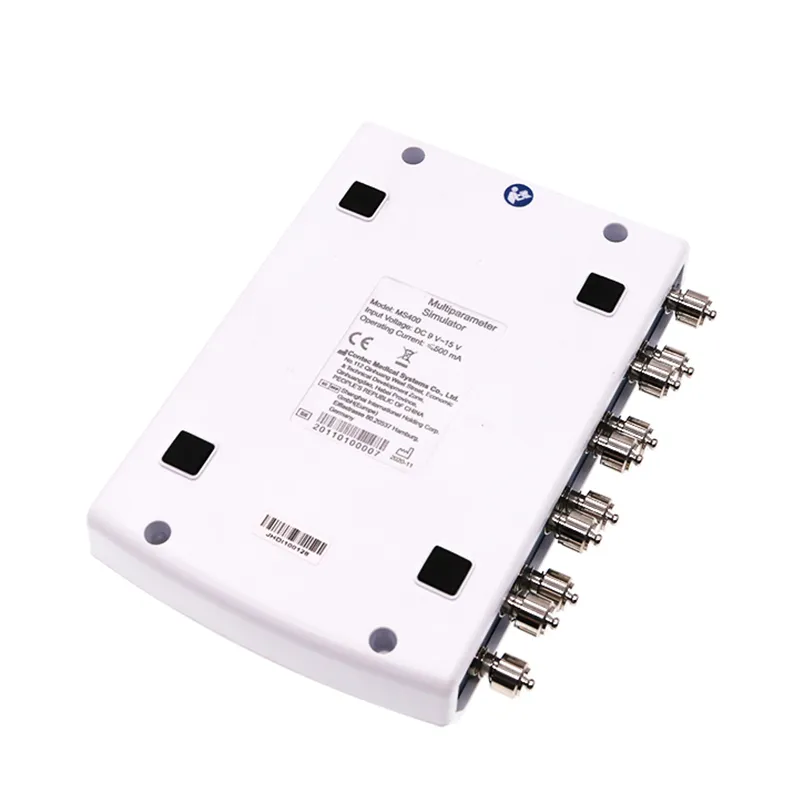

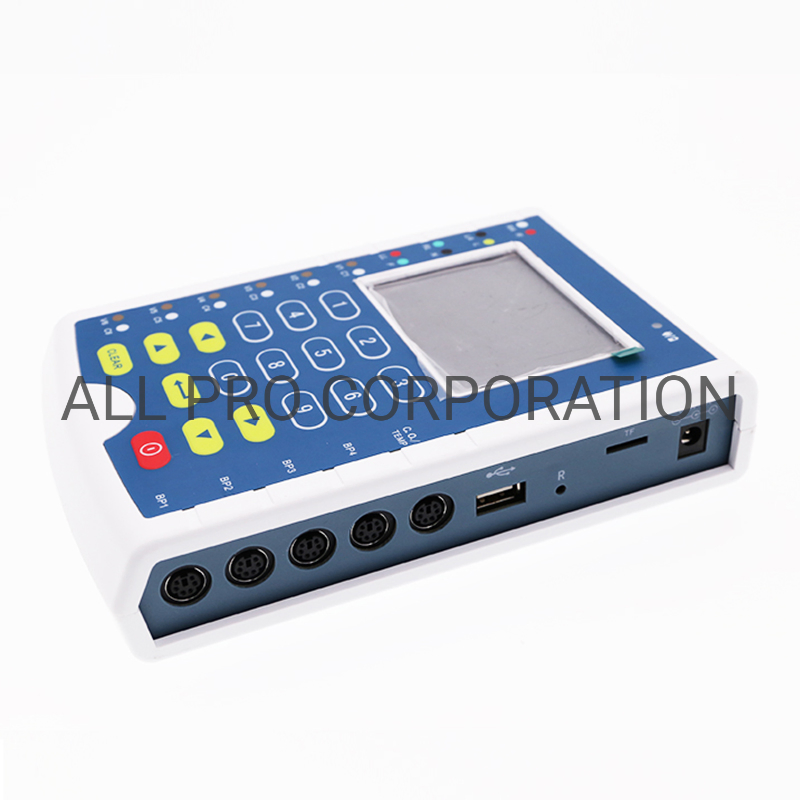

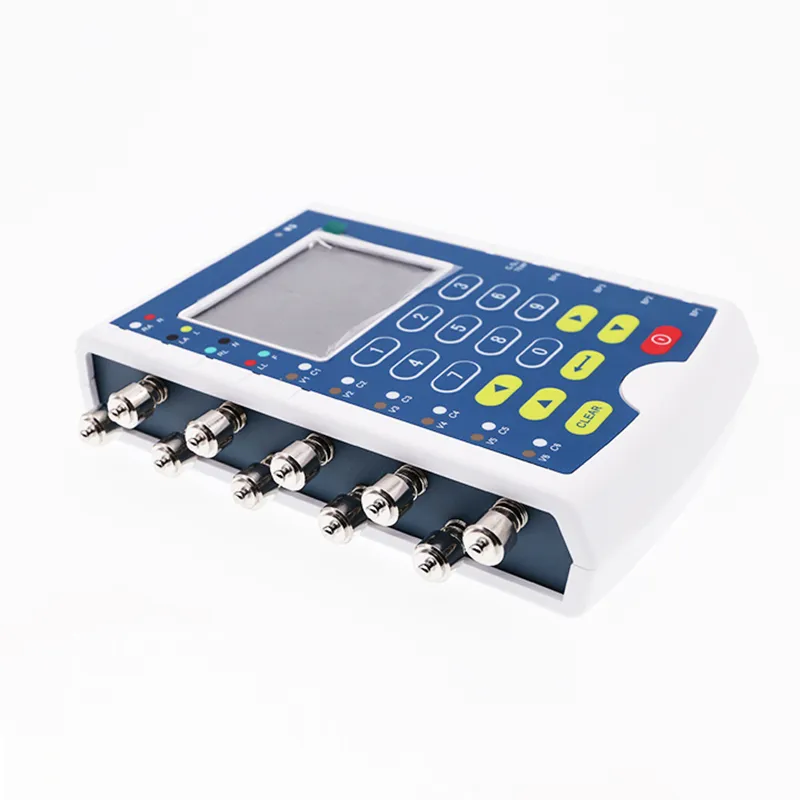

APY-KT-400 Multiparameter Simulator is a portable device, features in small volume and light weight. It can simulate accurately 12-lead ECG, Respiration, Temperature, 2-channel IBP or 4-channel IBP. And it can be tested in where the monitor is used.
Main Features
- Simulate 35 kinds of arrhythmia (including Atrial, Ventricular, Premature Beat and Conduction Defects) and pacemaker waveforms (including Asynchronous, Demand Occ Sinus, Demand Freq Sinus, A/V Sequential, Non Capture, Non Function).
- Simulate four-channel IBP data.
- Simulate respiration signal with adjustable respiration rate, impedance and baseline impedance, and three kinds of apnea data.
- Simulate four kinds of temperature data.
- Simulate square wave, triangle wave, pulse wave and sine wave with adjustable frequency.
- Simulate standard ECG calibration, adult and pediatric ECG signal.
- ECG waveform complied with the standard of ANSI/AAMI EC13-2002, AHA, MIT ECG database, other ECG database and user-defined waveform data stored in TF card can be displayed by the simulator and exported to the equipments to be tested.
- Each waveform can be displayed by sliding the 3.5'' TFT touch screen, easy to operate.

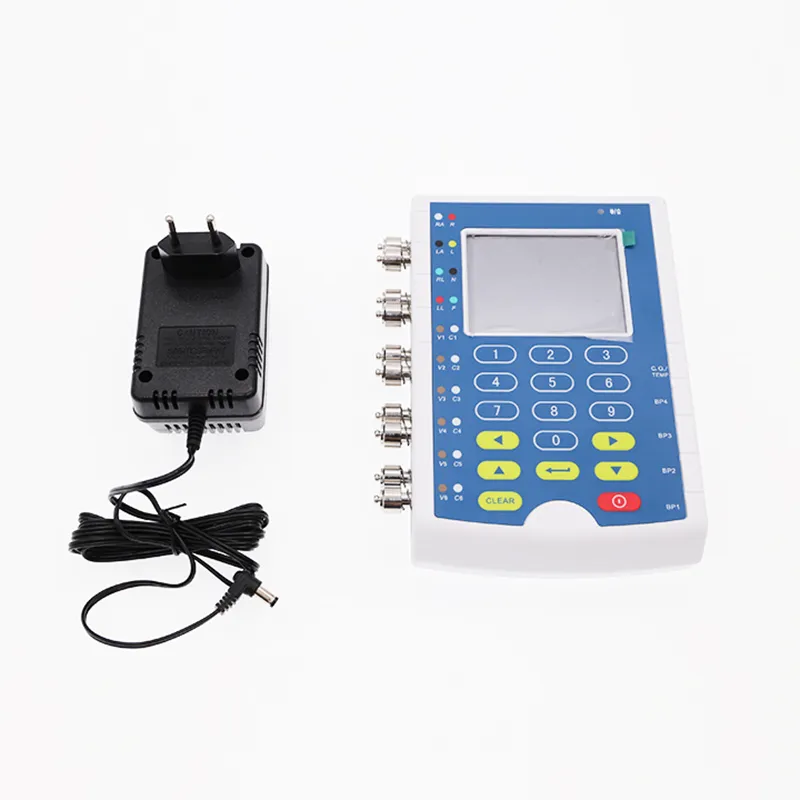

- Power supply: rechargeable lithium battery or linear adapter, which reduces interference.
- Optional operation modes: keys and touch screen.
| Usage |
Medical Test |
| Medical Test |
70%~100%: 2% |
| Application |
Medical Field |
| The elevation of the ST segmen |
The elevation of the ST segmen |
| ECG Rate |
15-350 bpm |
| ECG artifacts |
50 and 60 Hz, muscle, baseline and breathing |
Frequently Asked Questions
Q1: How many types of arrhythmia can the APY-KT-400 simulate?
A: The device can simulate 35 different kinds of arrhythmia, including Atrial, Ventricular, Premature Beat, and various Conduction Defects.
Q2: What parameters does this multiparameter simulator support?
A: It accurately simulates 12-lead ECG, Respiration, Temperature, and provides options for 2-channel or 4-channel IBP (Invasive Blood Pressure).
Q3: Is the device portable and easy to operate?
A: Yes, it is lightweight (1.5kg) and portable. It features a 3.5'' TFT touch screen for easy waveform navigation and operation.
Q4: Does it comply with international medical testing standards?
A: Yes, the ECG waveforms comply with ANSI/AAMI EC13-2002, AHA, and MIT ECG database standards.
Q5: What are the power supply options for the simulator?
A: The simulator can be powered by a rechargeable lithium battery for portable use or via a linear adapter to minimize electrical interference.
Q6: Can I use my own custom waveforms with this device?
A: Yes, user-defined waveform data stored in a TF card can be displayed by the simulator and exported to external equipment for testing.
