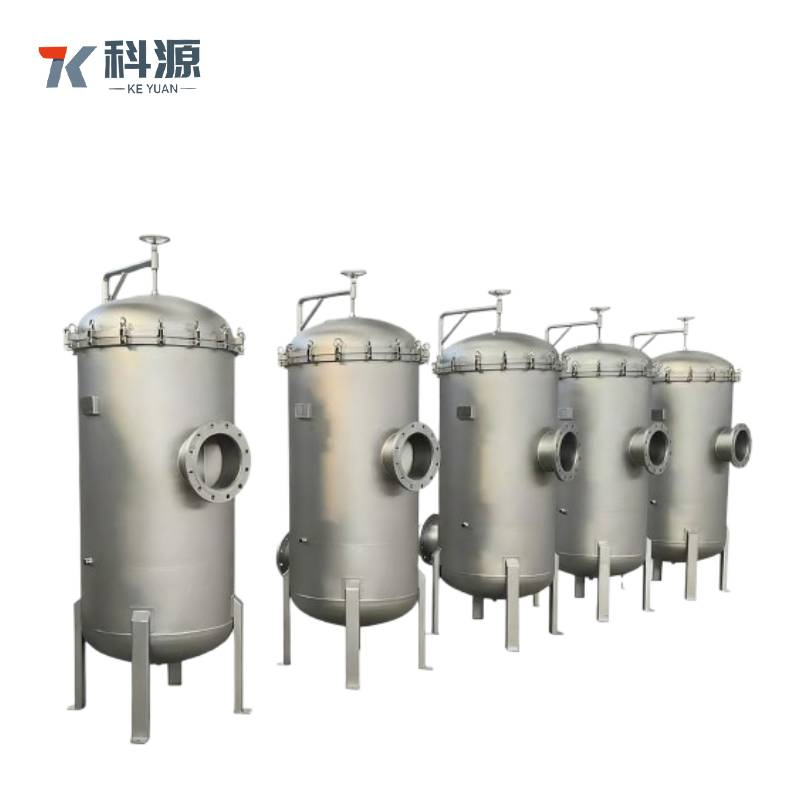

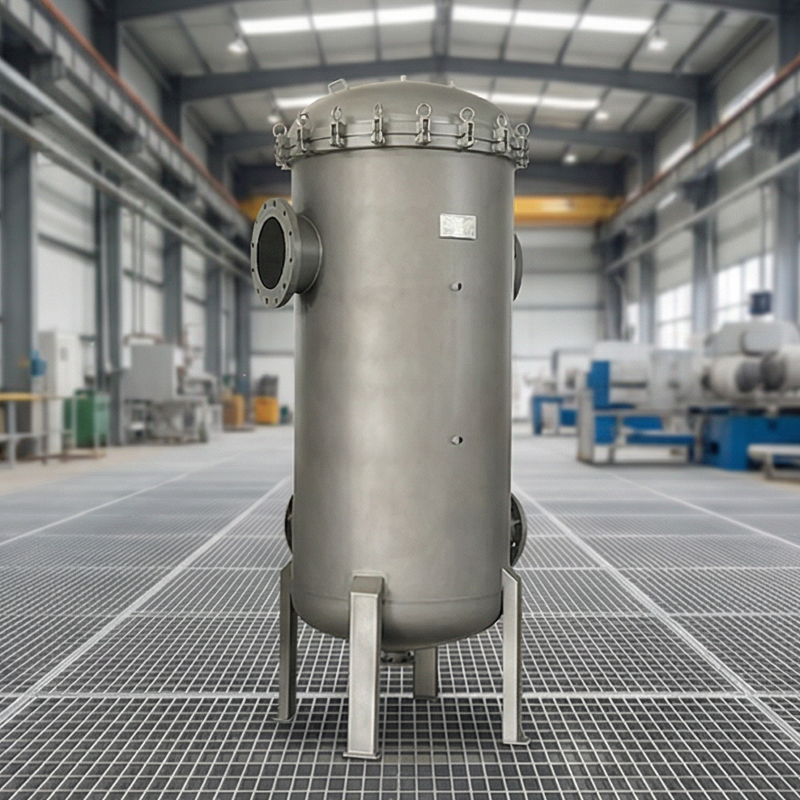

Durable Stainless Steel High Flow Filtration Solution for Clean Water

Customization:	Available
Type:	Water Treatment Filter
Usage:	Environmental Protection, Chemical Industry, Water Treatment

i

Basic Information

Model NO.

High Flow Filters

Motive Force

Pressure

Style

Vertical

Performance

Efficient Filtration

Certification

CE, GS, RoHS

Tank Material

304/316L Stainless Steel (3-12mm Thickness)

Design Pressure

150 Psi (10 Bar) Standard; up to 300 Psi Available

Design Temp.

-20°F to 300°F (-29°C to 149°C)

Flow Capacity

100 to 5,000+ Gpm Per Vessel

Vessel Diameters

6", 8", 10", 12", 14", 16", 18", 20", 24"+

Cartridge Types

Pleated (Standard), String Wound, Melt Blown

Filtration Ratings

1, 5, 10, 20, 30, 50, 75, 100 Microns

Sealing Materials

Silicone, NBR, EPDM, FKM

Interface

Thread/Flange

Surface Treatment

Mirror Polish/Sand Blasting

Warranty

One Year

★

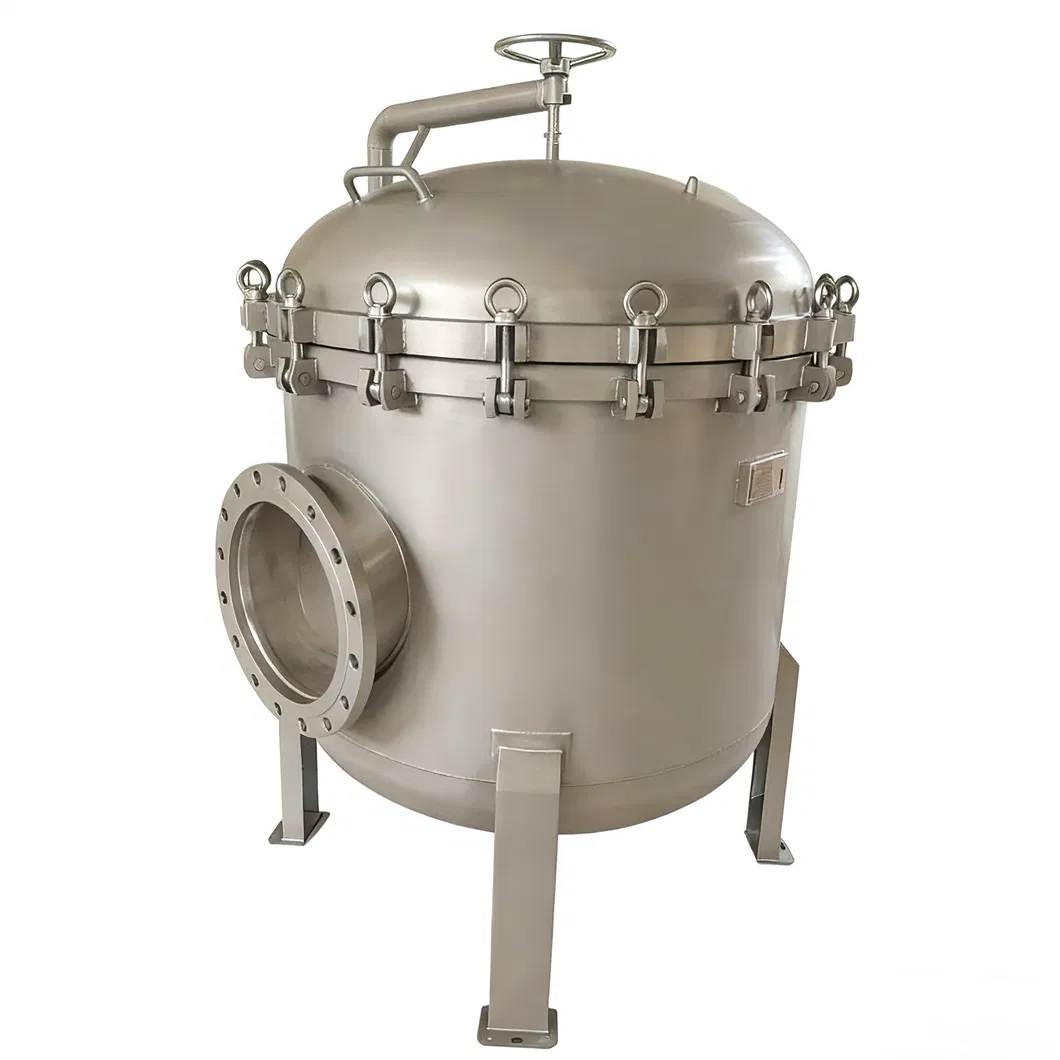

Product Description

Introducing our state-of-the-art Stainless Steel High Flow Filter, built to excel in the toughest industrial environments where large-scale fluid processing is key. This high-performance filtration system features cutting-edge hydraulic optimization and sturdy construction, ensuring outstanding filtration efficiency with minimal resistance. It stands as the perfect choice for managing cooling water, enhancing process water pretreatment, and catering to a multitude of high-capacity needs across diverse industries.

Performance Advantages

1. Superior Flow Characteristics

Minimal Pressure Drop: Typically under 5 PSI at peak flow, reducing energy costs.
High Dirt-Holding Capacity: 5-10 times greater than standard filters.
Uniform Flow Distribution: Patented inlet diffuser guarantees even loading.

2. Operational Efficiency

Extended Service Life: Reduces changeover frequency by 60-80%.
Easy Maintenance: User-friendly top-access design with swing-bolt closures.
Continuous Operation: Optional dual-chamber systems available.

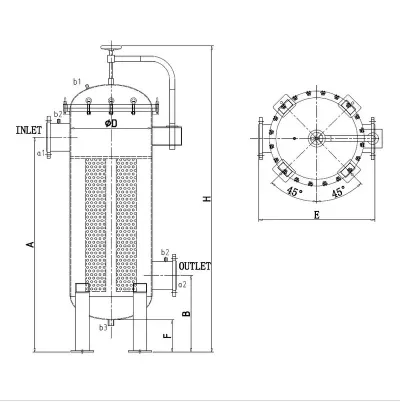

Technical Specifications

Model	Thickness (mm)	Material	Input Inch	Working Pressure (MPa)
2001core40 Inch	1.5	SUS304/316L	Customized	1.6
4002core40 Inch	1.5	SUS304/316L	Customized	1.6
4503core40 Inch	2.0	SUS304/316L	Customized	1.6
5004core40 Inch	2.0	SUS304/316L	Customized	1.6
5505core40 Inch	2.0	SUS304/316L	Customized	1.6
6006core40 Inch	2.5	SUS304/316L	Customized	1.6
6507core40 Inch	2.5	SUS304/316L	Customized	1.6
7008core40 Inch	2.5	SUS304/316L	Customized	1.6
7509core40 Inch	3.0	SUS304/316L	Customized	1.6

✔

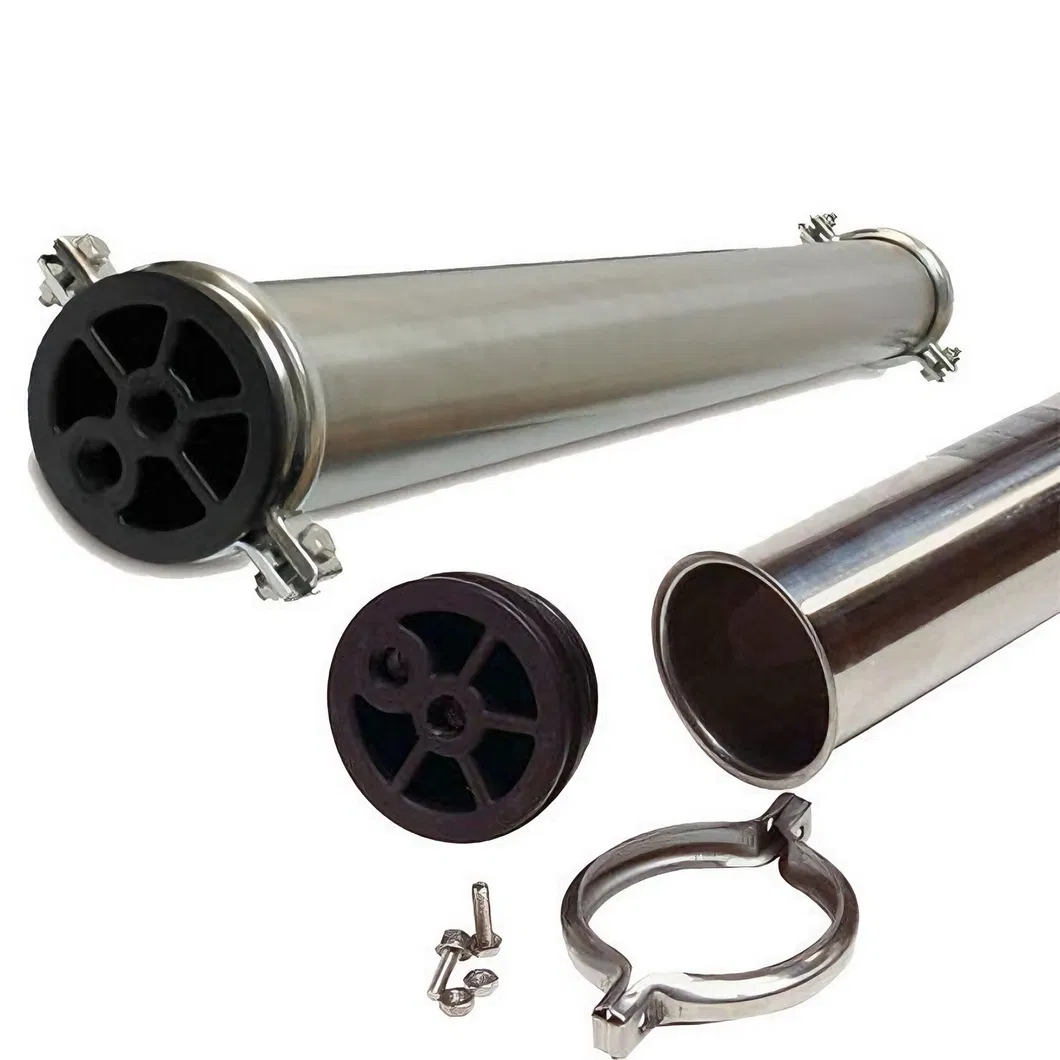

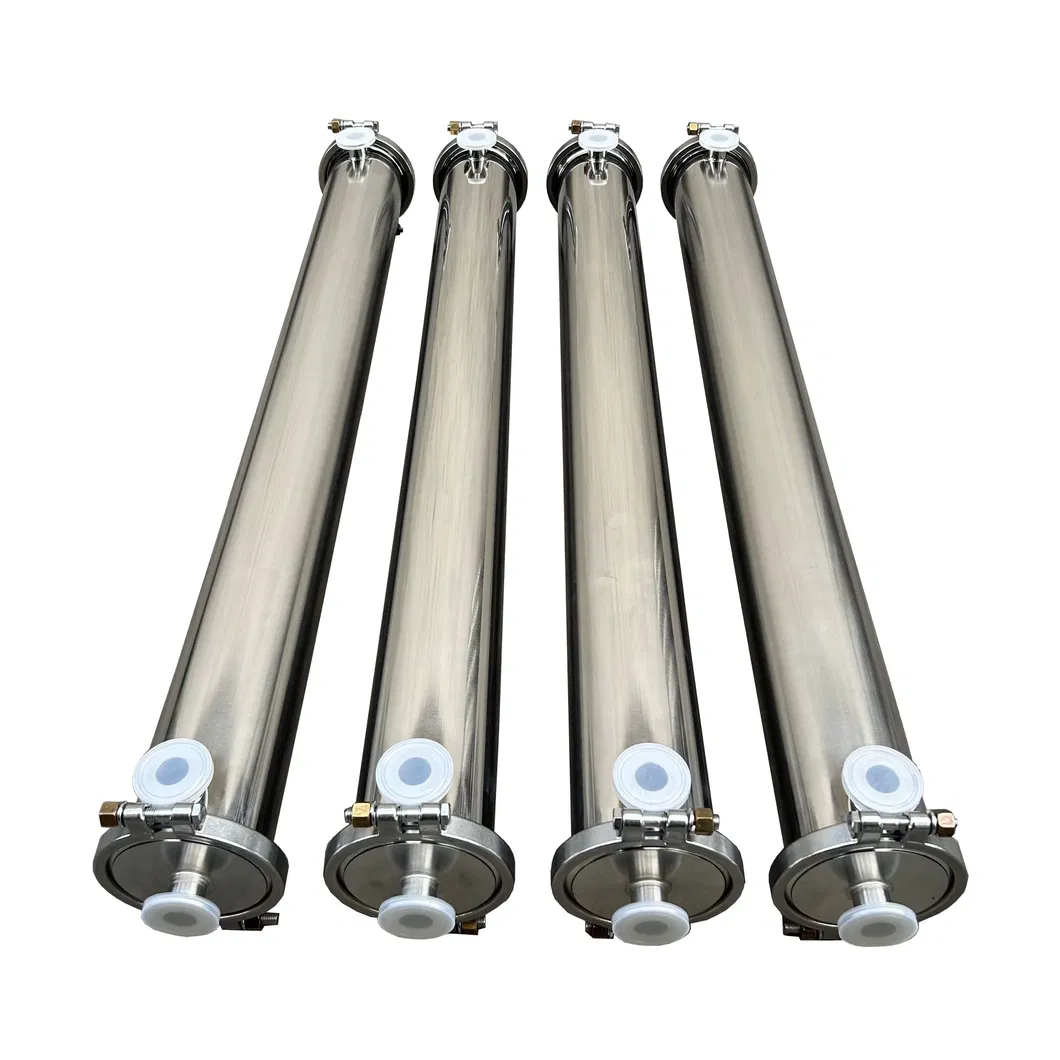

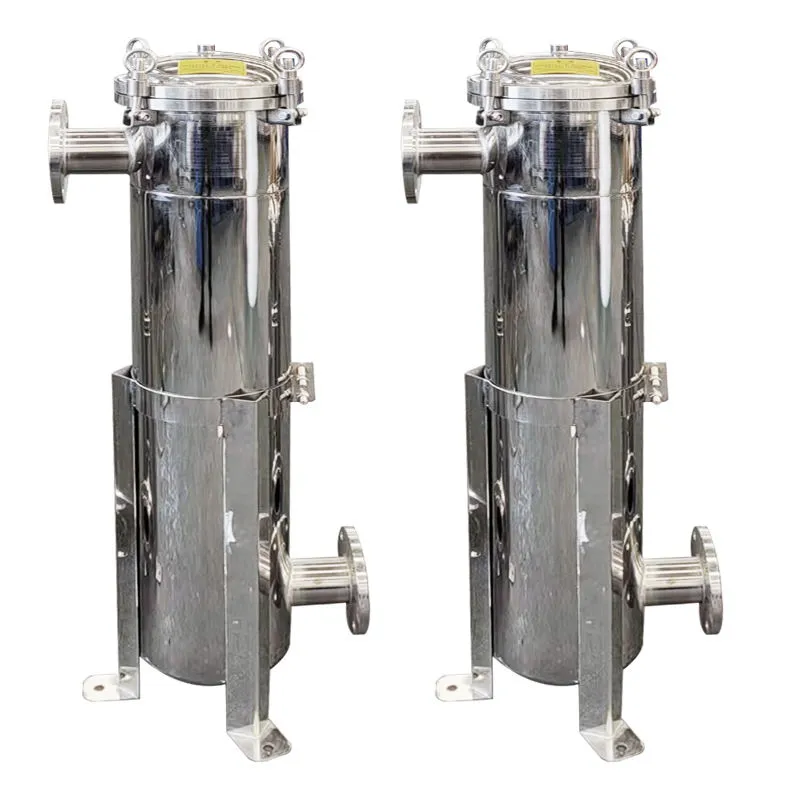

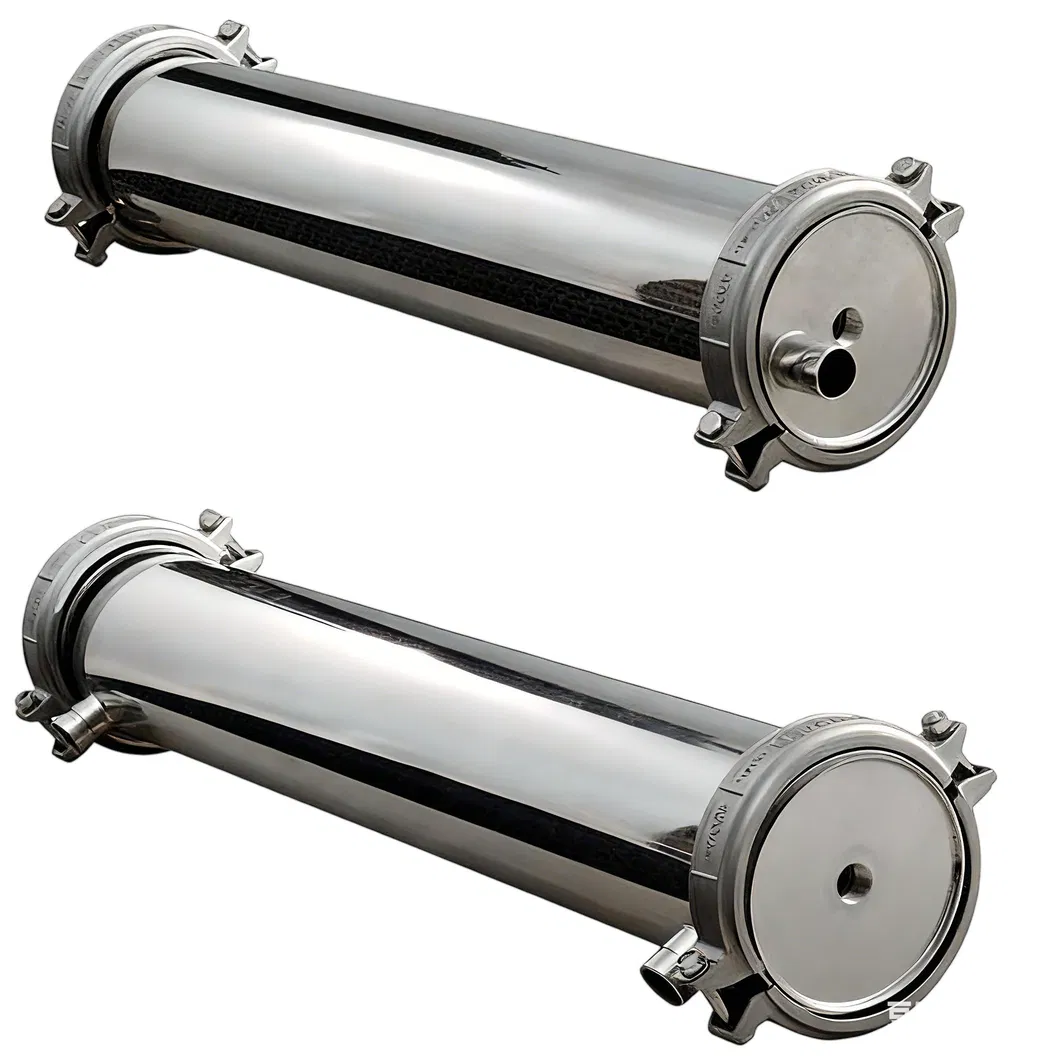

Recommended Products

⚙

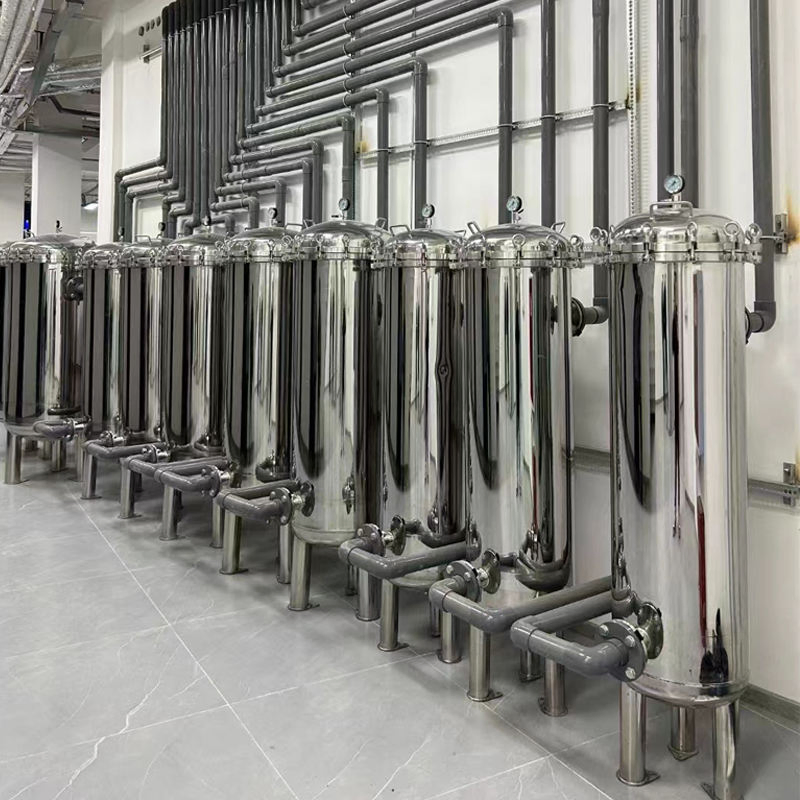

Industry Applications

Cooling Water Systems: Chiller plants, cooling towers, and process cooling loops.
Process Water Treatment: RO pretreatment, industrial makeup water, and wastewater reuse.
Chemical Processing: Bulk chemical filtration, catalyst recovery, and polymer processing.
Oil & Gas: Produced water treatment, injection water, and refinery process water.
Food & Beverage: Ingredient water treatment and CIP systems return filtration.

⚓

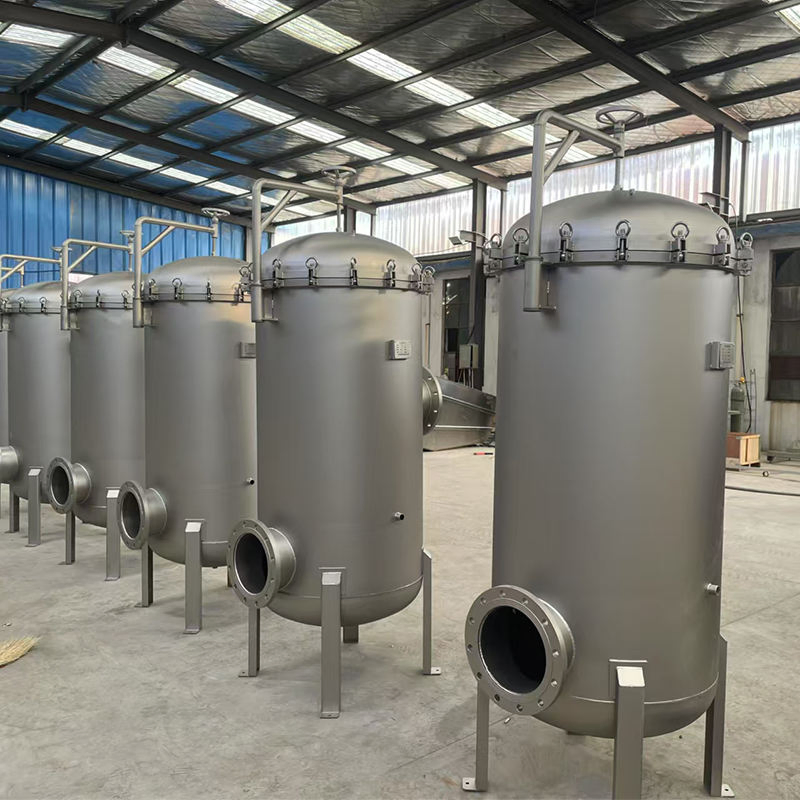

Production & Logistics

?

Frequently Asked Questions

What materials are available for the high flow filter housing?

Our filter housings are primarily constructed from high-quality 304 or 316L Stainless Steel, with thicknesses ranging from 3mm to 12mm depending on pressure requirements.

What is the maximum flow capacity of these vessels?

The system is designed for high-capacity needs, ranging from 100 GPM to over 5,000 GPM per vessel, making it ideal for large-scale industrial fluid processing.

How does the "High Flow" design save on operational costs?

The optimized hydraulic design ensures a minimal pressure drop (typically under 5 PSI), which significantly reduces the energy required for pumping and extends the service life of filter cartridges.

Are the filtration ratings customizable?

Yes, we offer a wide range of filtration ratings including 1, 5, 10, 20, 30, 50, 75, and 100 microns to meet specific process requirements.

What kind of sealing materials do you use?

We provide various sealing options to ensure chemical compatibility, including Silicone, NBR, EPDM, and FKM (Viton).

Is technical documentation provided with the filters?

Absolutely. We provide full mill test reports, material certifications, and pressure test reports to ensure safety and compliance with ISO 9001 standards.
