| Model NO. | HD series |
| Certification | CE, ISO 9001:2000, ISO 9001:2008 |
| Power Source | Electric |
| Operation Pressure | Atmospheric Pressure |
| Material | Cast Steel |
| Type | Mud Non Landing System |
| Origin | China |
| Production Capacity | 2000 |

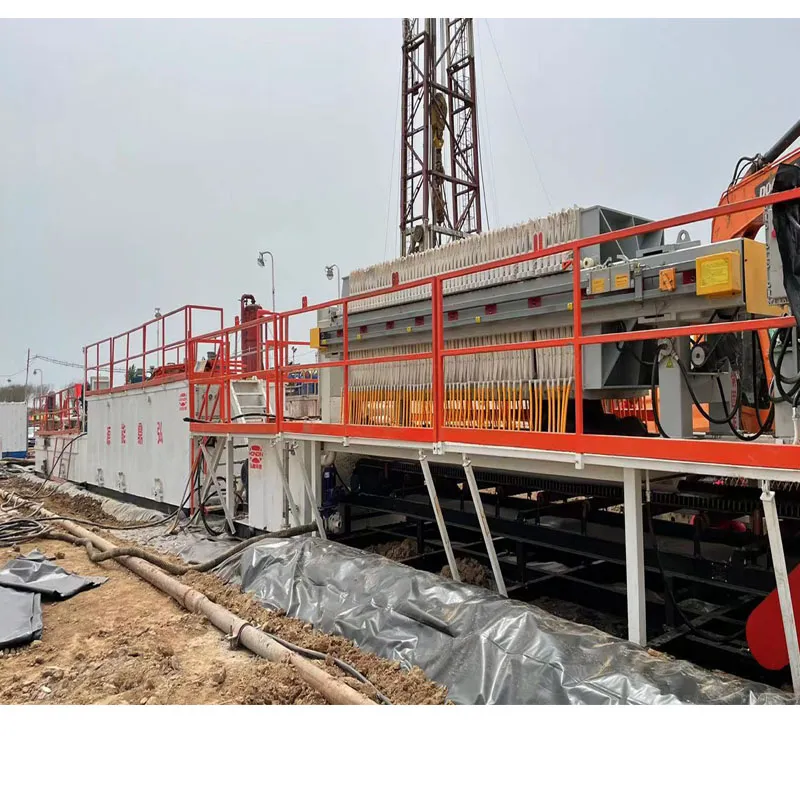

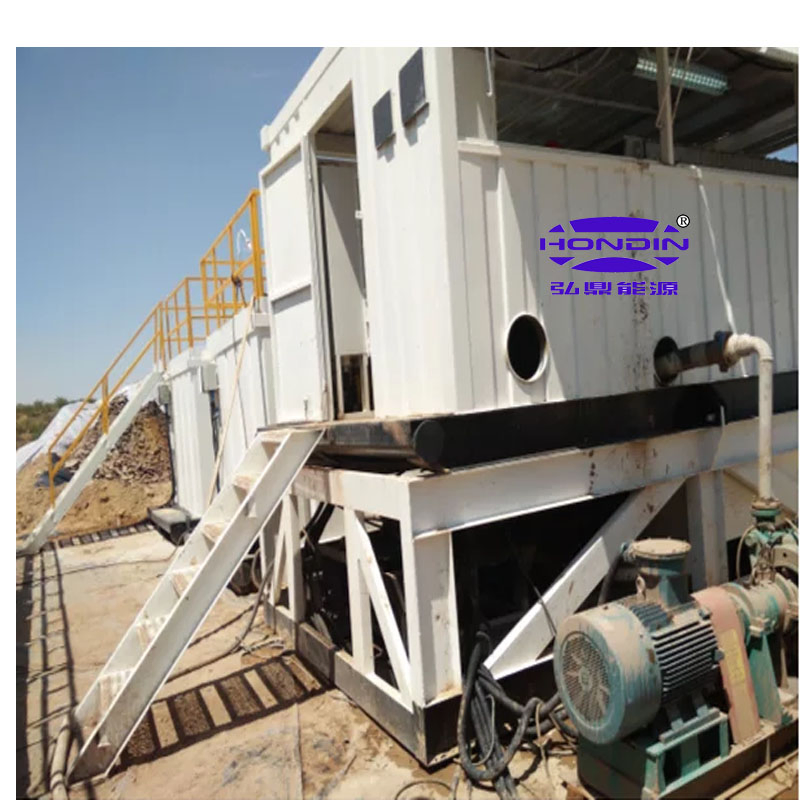

Mud non-landing is a common name for equipment suspension treatment, also known as equipment liquid non-landing, which refers to the use of mud non-landing equipment to screen out the suspension in the equipment liquid. Equipment that prevents mud from falling to the ground generally includes drying screens, cuttings dryers, filter presses, water pump centrifuges, pipeline machines and cuttings boxes, etc.

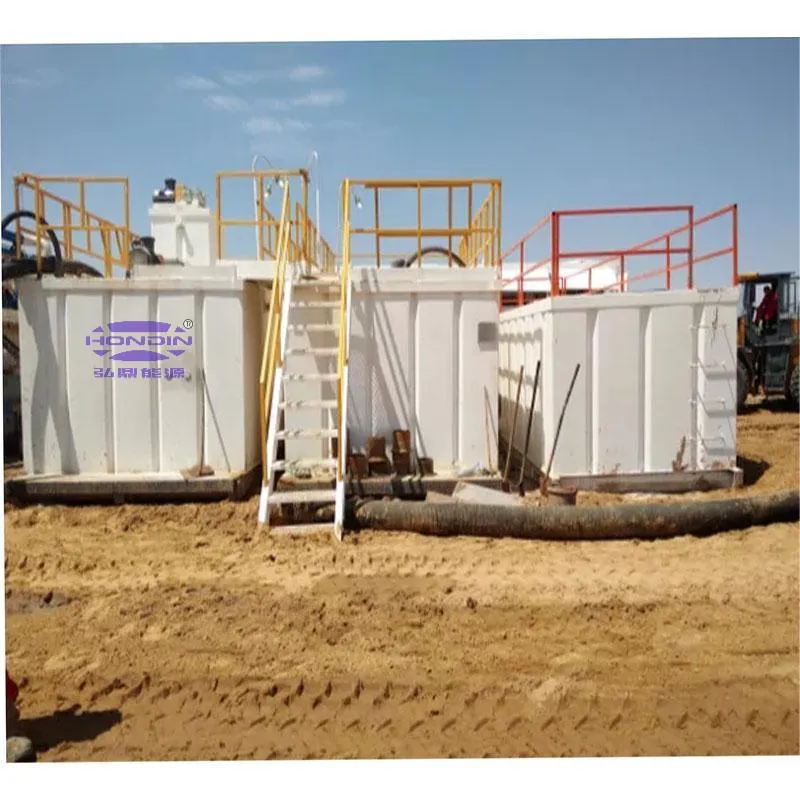

Water-based system equipment: high-speed drilling fluid centrifuge, drilling fluid drying screen, drilling hydraulic filter, screw conveyor, dosing unit, mud tank and cuttings box.
Oil-based system equipment: high-speed drilling fluid centrifuge, cuttings dryer (also called cuttings dryer), dosing device, screw conveyor, and cuttings box.

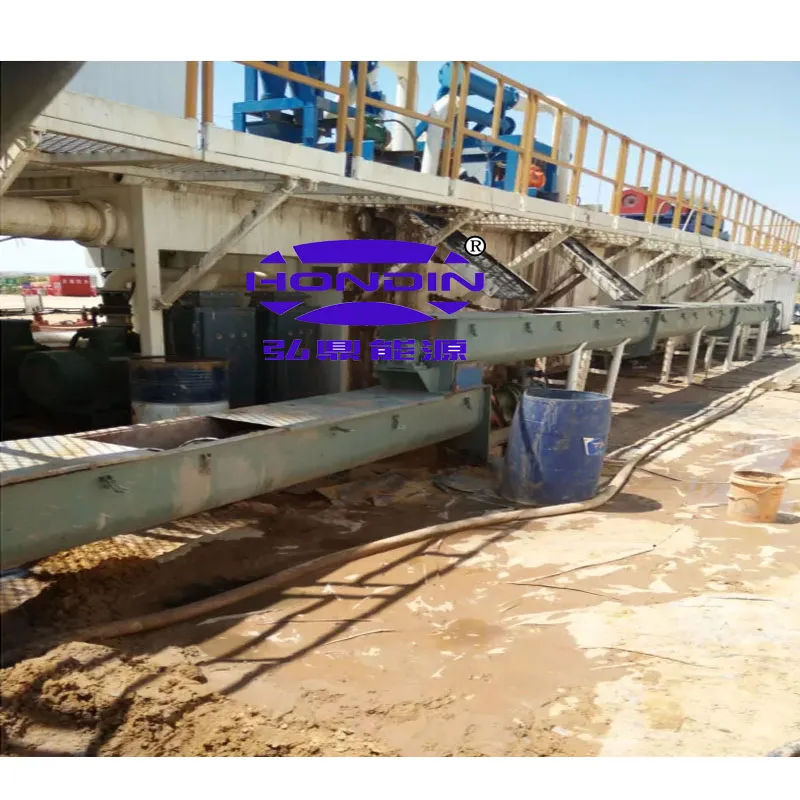

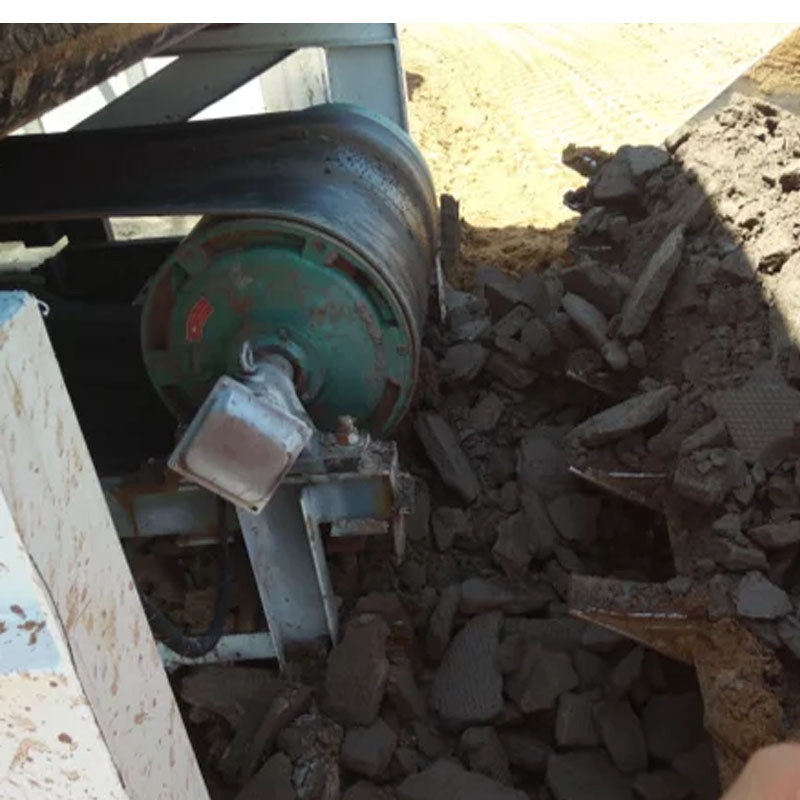

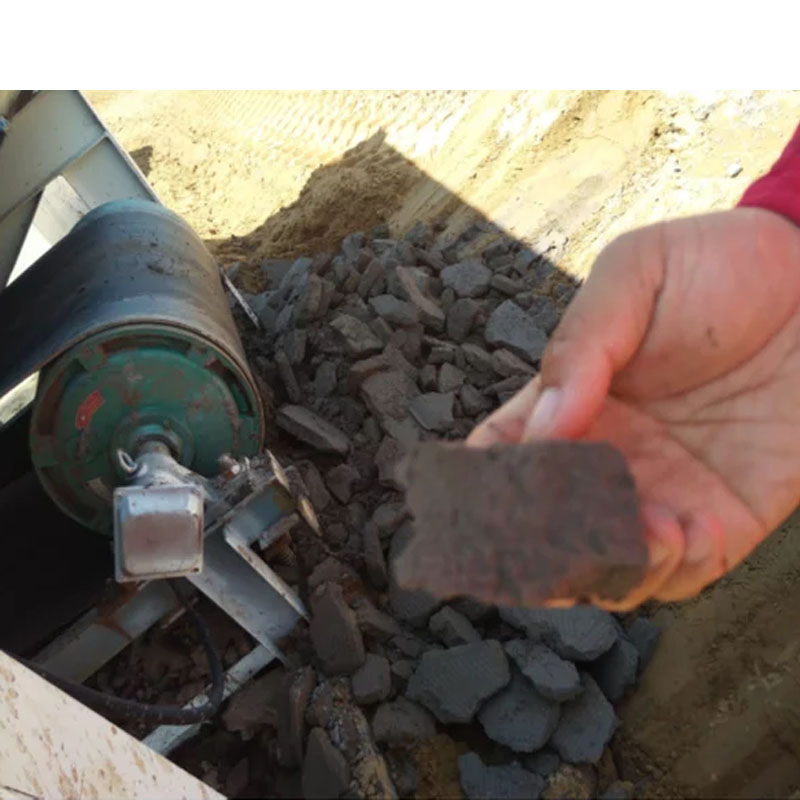

Water-based mud process: The mud to be treated is transported to the drilling fluid drying screen through the manifold. The treated mud enters the drilling fluid centrifuge through the screw pump for further processing. The treated mud is injected into the mud circulation system for recycling. The waste left during the treatment process is transported to the drilling hydraulic filter through a screw conveyor for further processing. Finally, the solid materials coming out of the filter press are sent to a cuttings box and transported to a designated location for processing.
Oil-based mud process: The drilling fluid mud to be processed is transported to the drilling cuttings dryer. The processed drilling fluid mud is transported to the drilling fluid centrifuge for further processing. The drilling fluid centrifuge completes the processing. The final mud liquid is reinjected into the mud circulation system. The waste after the treatment process is transported to the cuttings bin.
