| Basic Information | |
|---|---|
| Model NO. | HG CHL S100 |
| Display | Digital |
| Portable | Portable |
| Appliance | Food Analysis, Medical Research, Biochemistry |
| Certification | ISO9001 |
| Accuracy | ≤ ± 3% |
| Communication | RS485 |
| Power Supply | 12/28V DC |
| Detection Range | (0 - 500) μg/L |
| Transport Package | Wooden Case |

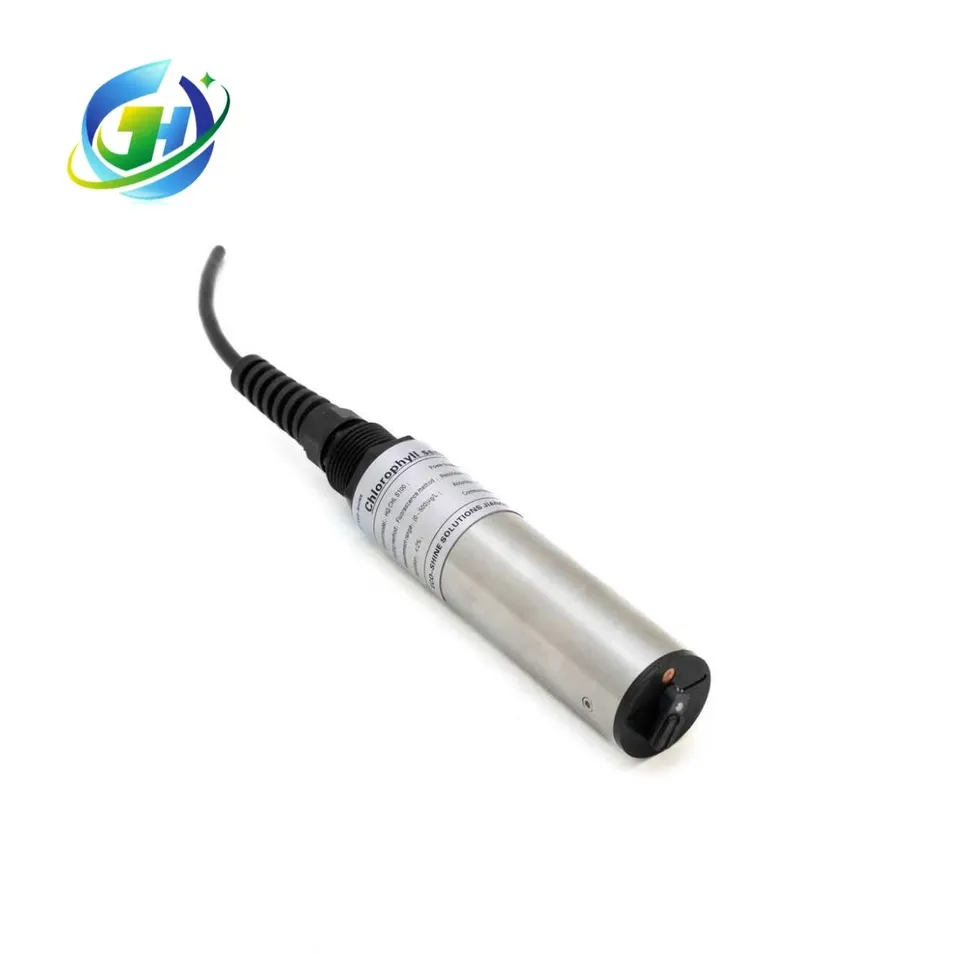

Based on the fluorescence detection principle, high-brightness LED of specific wavelengths are used to excite chlorophyll in the water sample. The excited chlorophyll will emit fluorescence, and the intensity of this fluorescence signal is related to the concentration of chlorophyll.
The sensor adopts a digital and intelligent sensor design concept, which automatically compensates for light source intensity fluctuations, device aging, and temperature changes. It outputs standardized digital signals, allowing for seamless network formation and system integration.
| Parameter | Details |
|---|---|
| Detection Method | Fluorescence method |
| Detection Range | (0 - 500) μg/L |
| Resolution | 0.01 μg/L |
| Accuracy | ≤ ± 3% |
| Repeatability | ≤ 2% |
| Working Voltage | 12/28V DC |
| Communication | RS485 (Modbus RTU) |

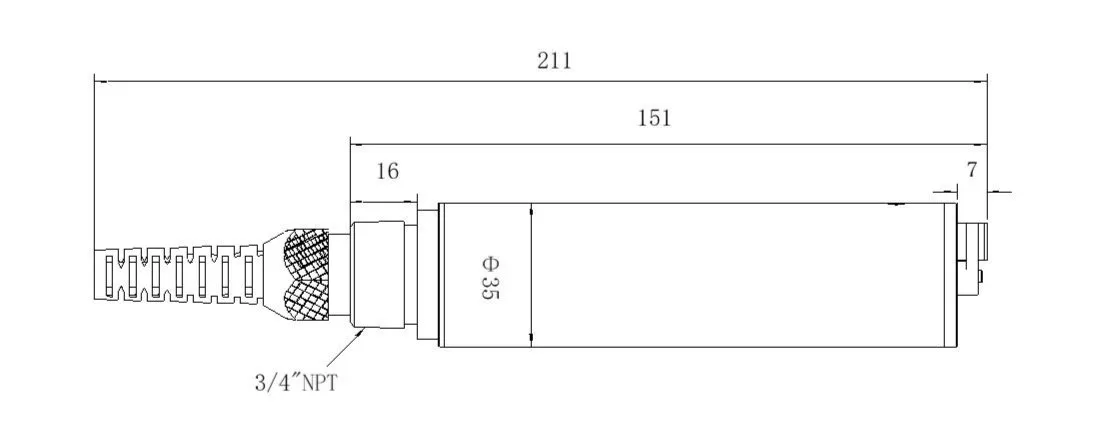

| Dimensions | φ35mm × L151mm |

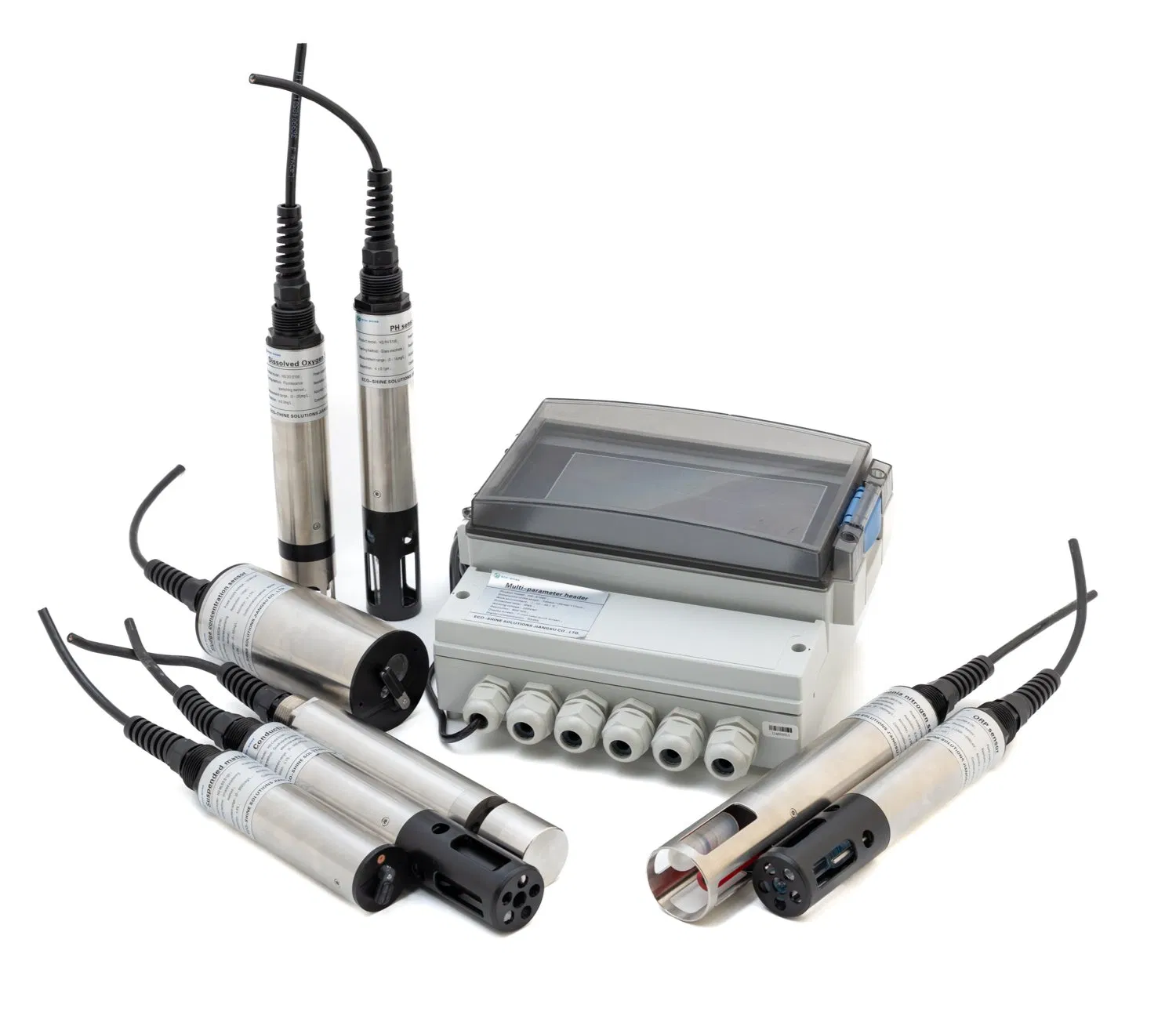

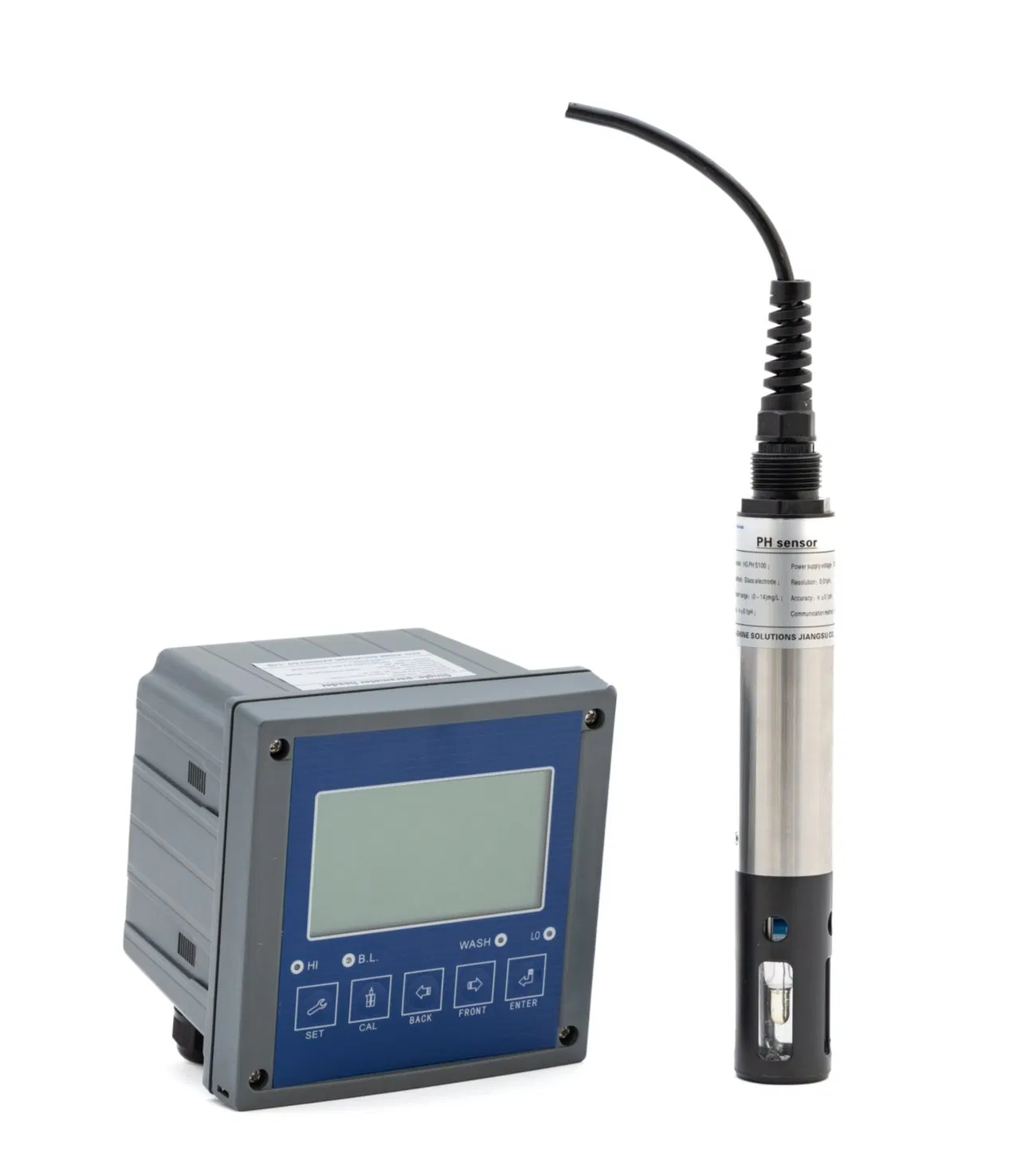

Header + pH Sensor

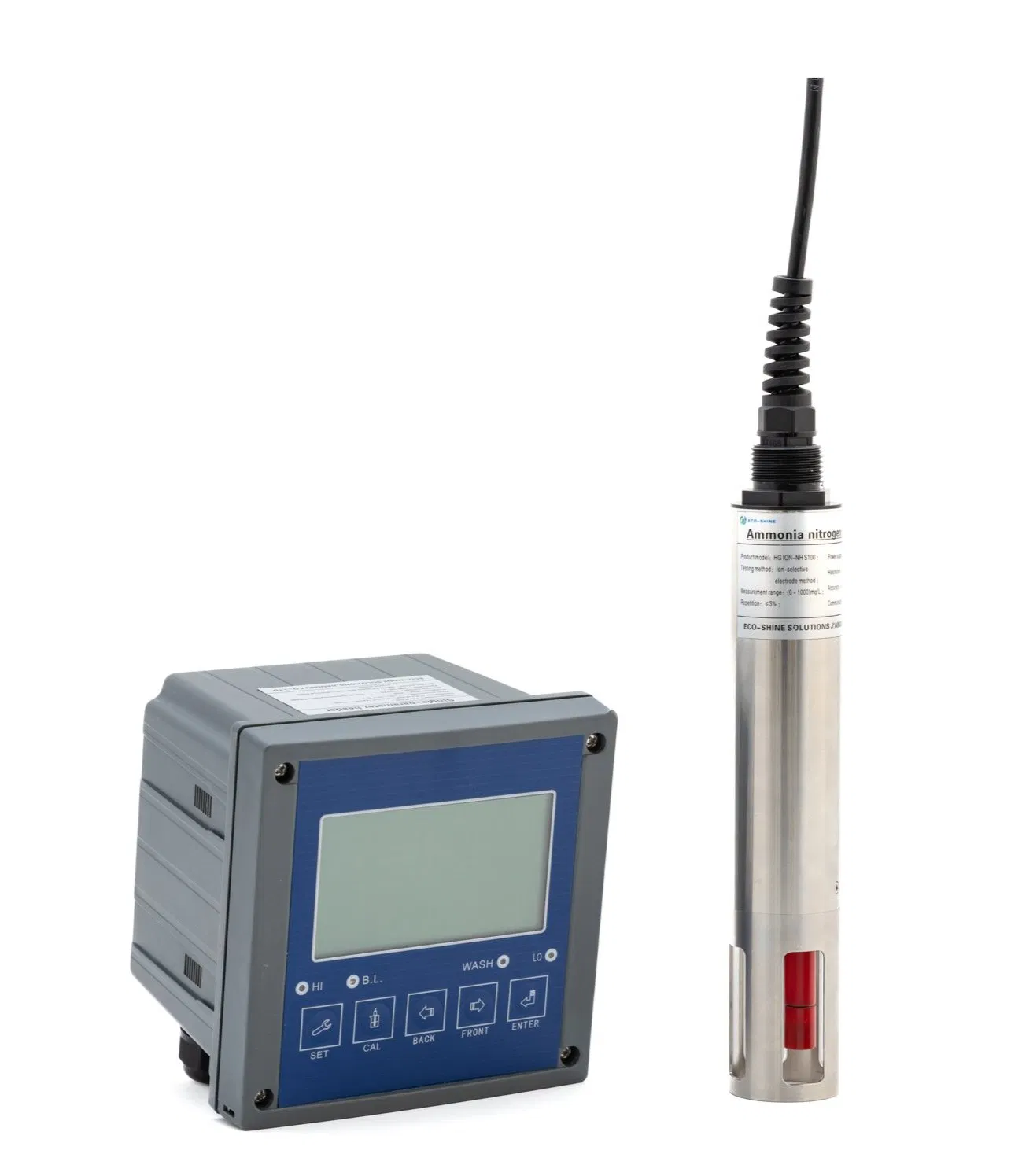

Header + Ammonia Nitrogen

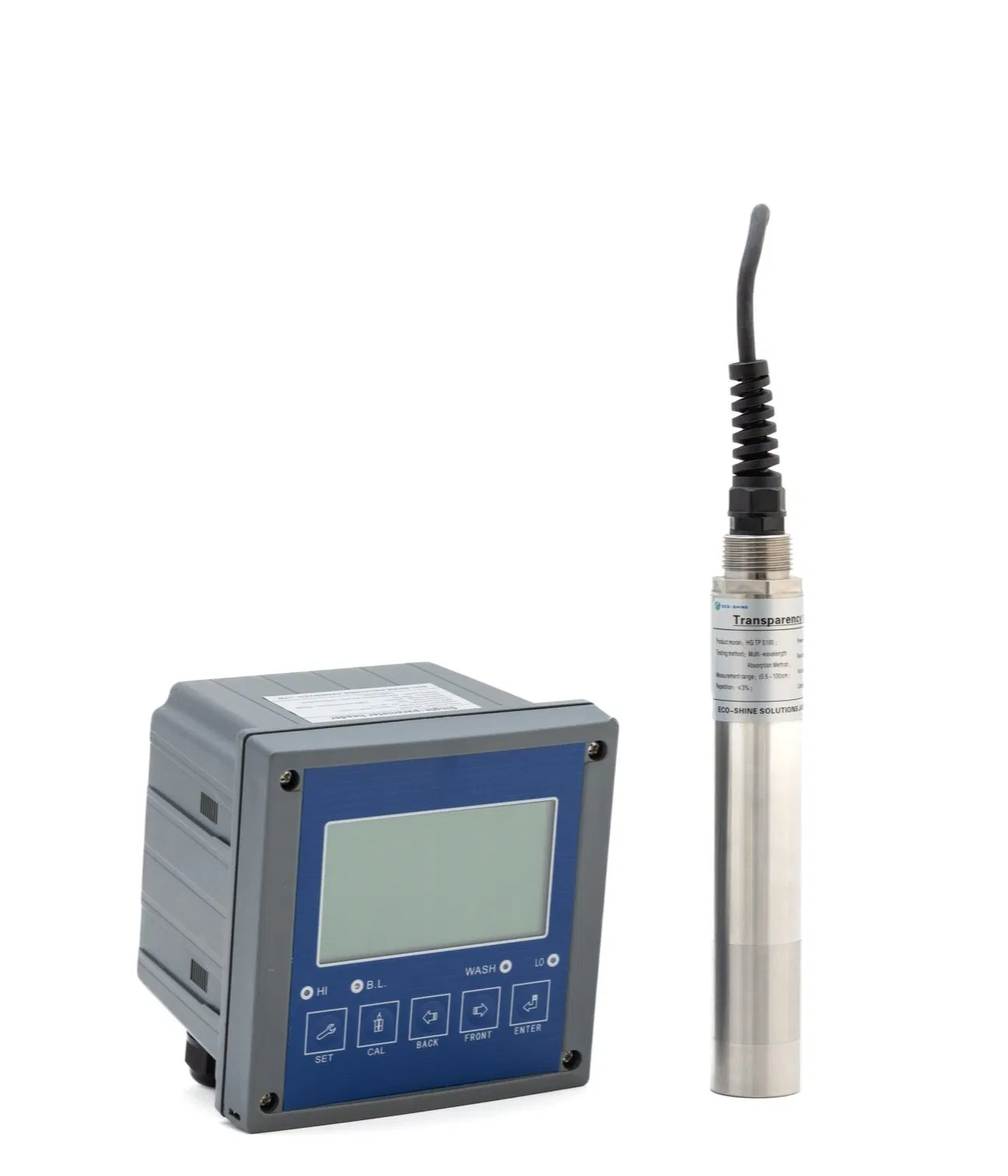

Header + Transparency

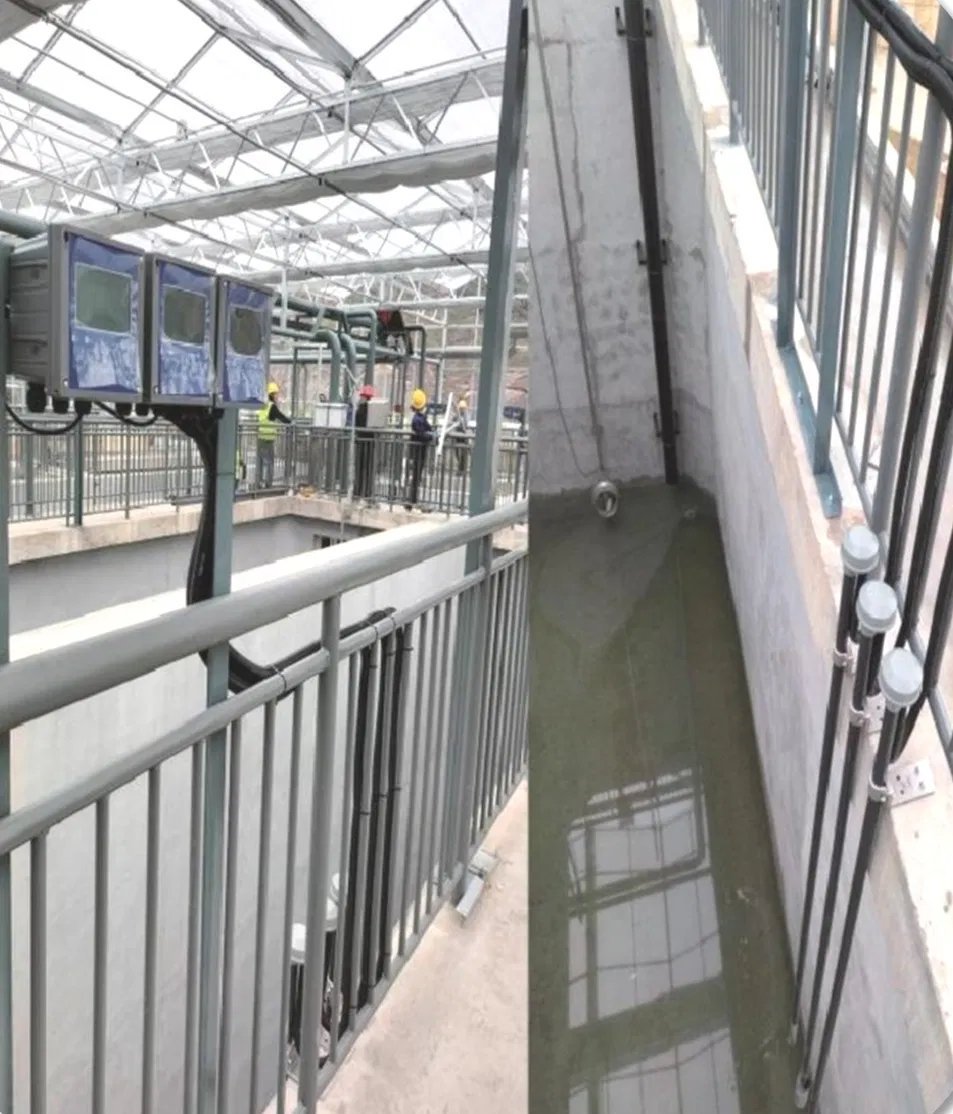

Wastewater Treatment: Real-time monitoring of ammonia nitrogen and total phosphorus for municipal plant efficiency.

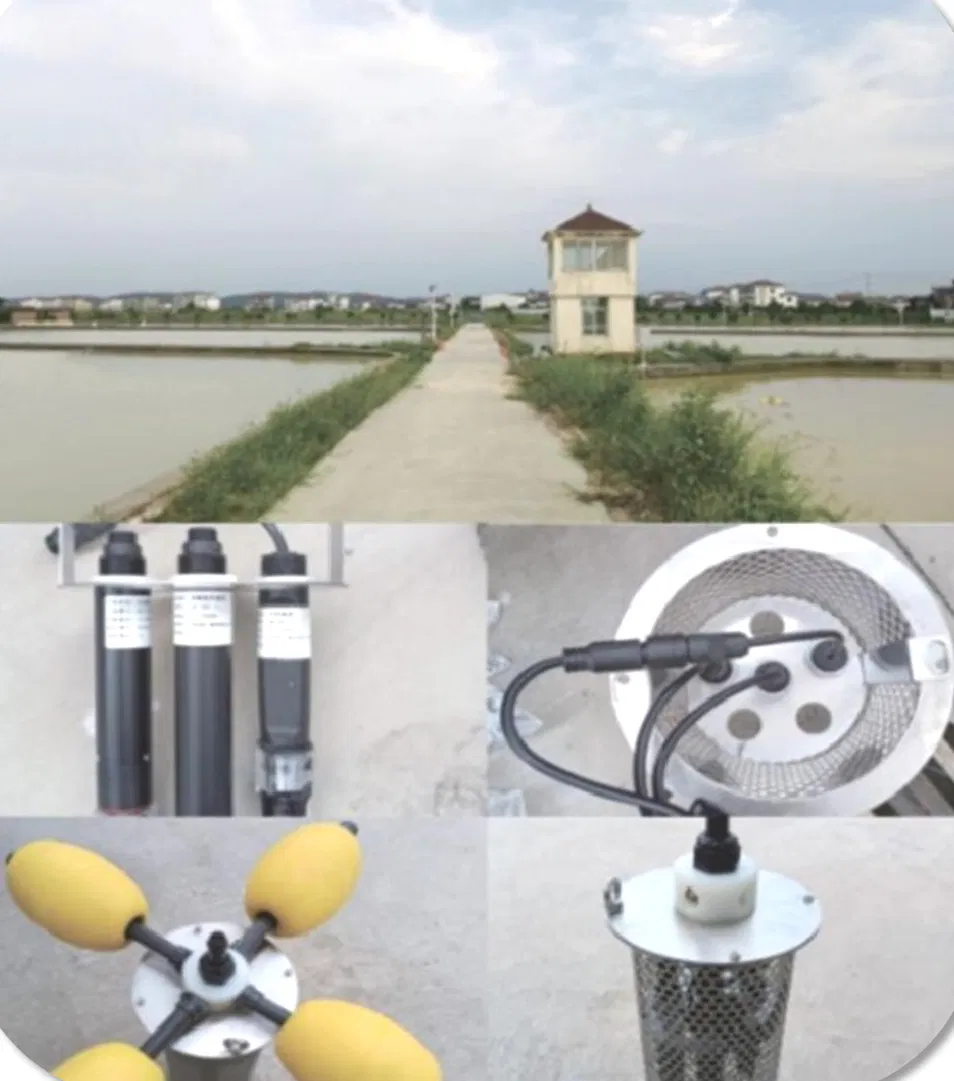

Aquaculture Monitoring: Managing algae density and water temperature to increase survival rates in turtle farming.
