Cheap Price New Customized Advanced Blood Collection Technology/Compact Blood Sampling Device

1 / 5

Cheap Price New Customized Advanced Blood Collection Technology/Compact Blood Sampling Device

Certification:	CE, GMP, ISO
Condition:	New
Customized:	Customized

Send Inquiry

Product Description

🔹 Basic Information

Model NO.

Customized -1

Fill Range

≤49ml

Filling Principle

Auger Filling

Machine Type

Liquid Filling Machine

Working Speed

15000-18000PCS/Hour

Voltage

380V

Power

380V/50Hz, 19kw

Drying Method

PTC Heating

Applicable Tube

13*75/100mm; 16*100mm

Transport Package

Wooden Case

⚙️ Product Description

EDTA Blood Specimen Filling and Sealing Machine / PET Blood Tube Injection Molding Device

High Automation: Fully automated assembly operation, sensible and optimised integration of work processes. Only one skilled operator required.
Integrated Design: Modular design with high degree of standardisation, compact footprint, and low maintenance requirements.

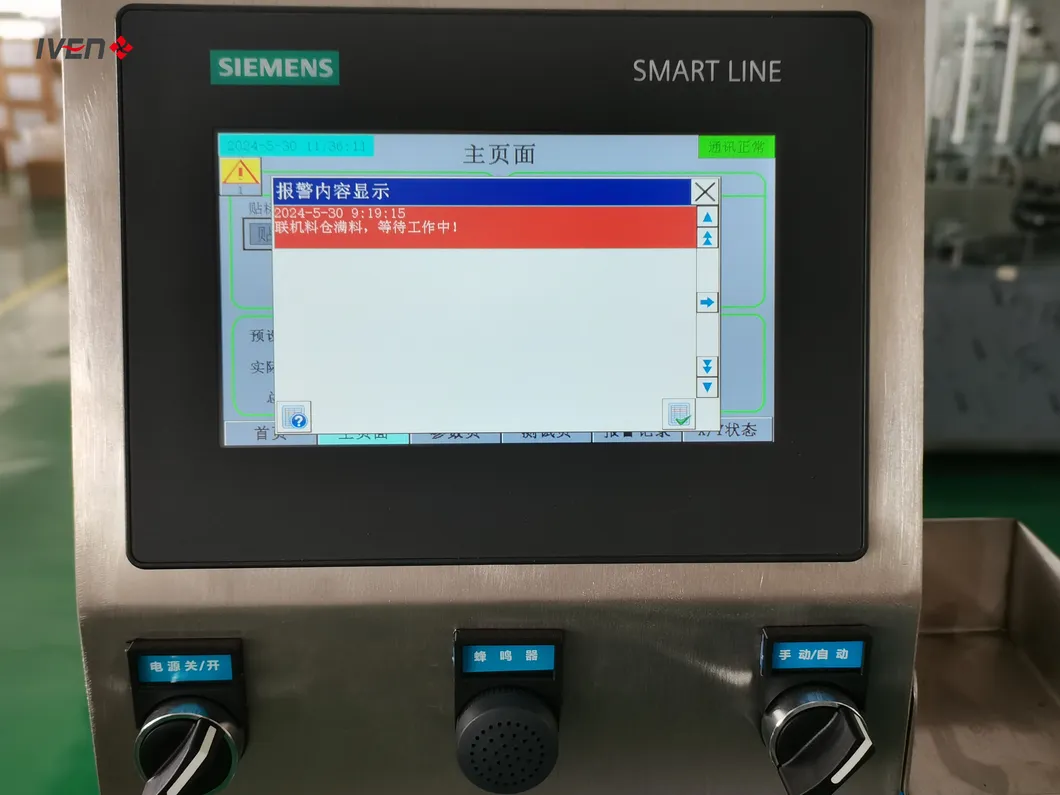

Human-Machine Dialogue: User-friendly HMI (human-machine interface) program design with multifunctional auxiliary operation prompts.
Precise Positioning: Precise mould frame positioning with positioning pin holes and lift-positioning capability.
Online QC Station: Trigger QC sampling on the HMI in automatic mode for easy inspection without stopping the line.
Durable Construction: SUS304 material sheet, frame and door with nano treatment, tempered glass doors, and shock-resistant steel structure.

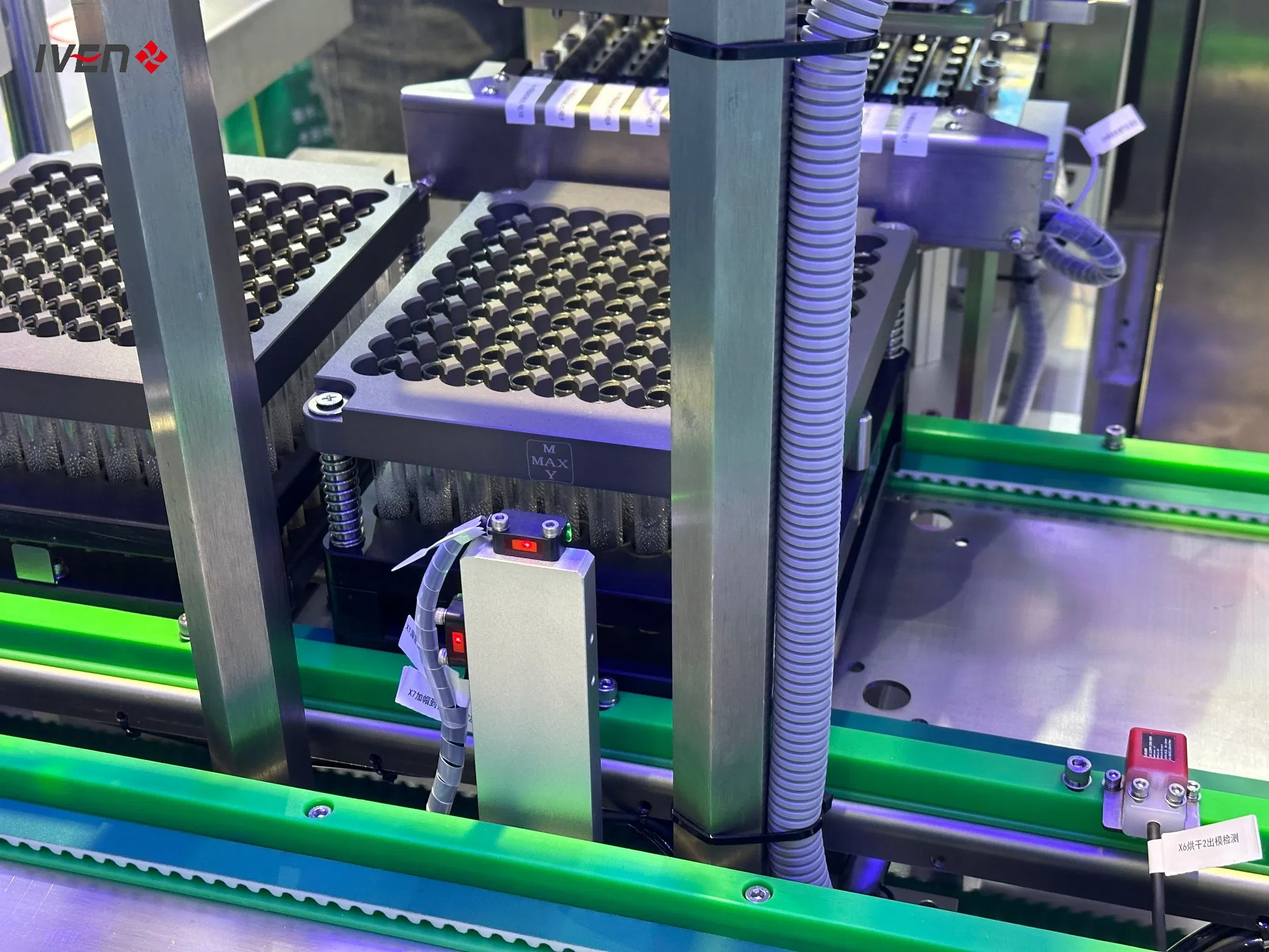

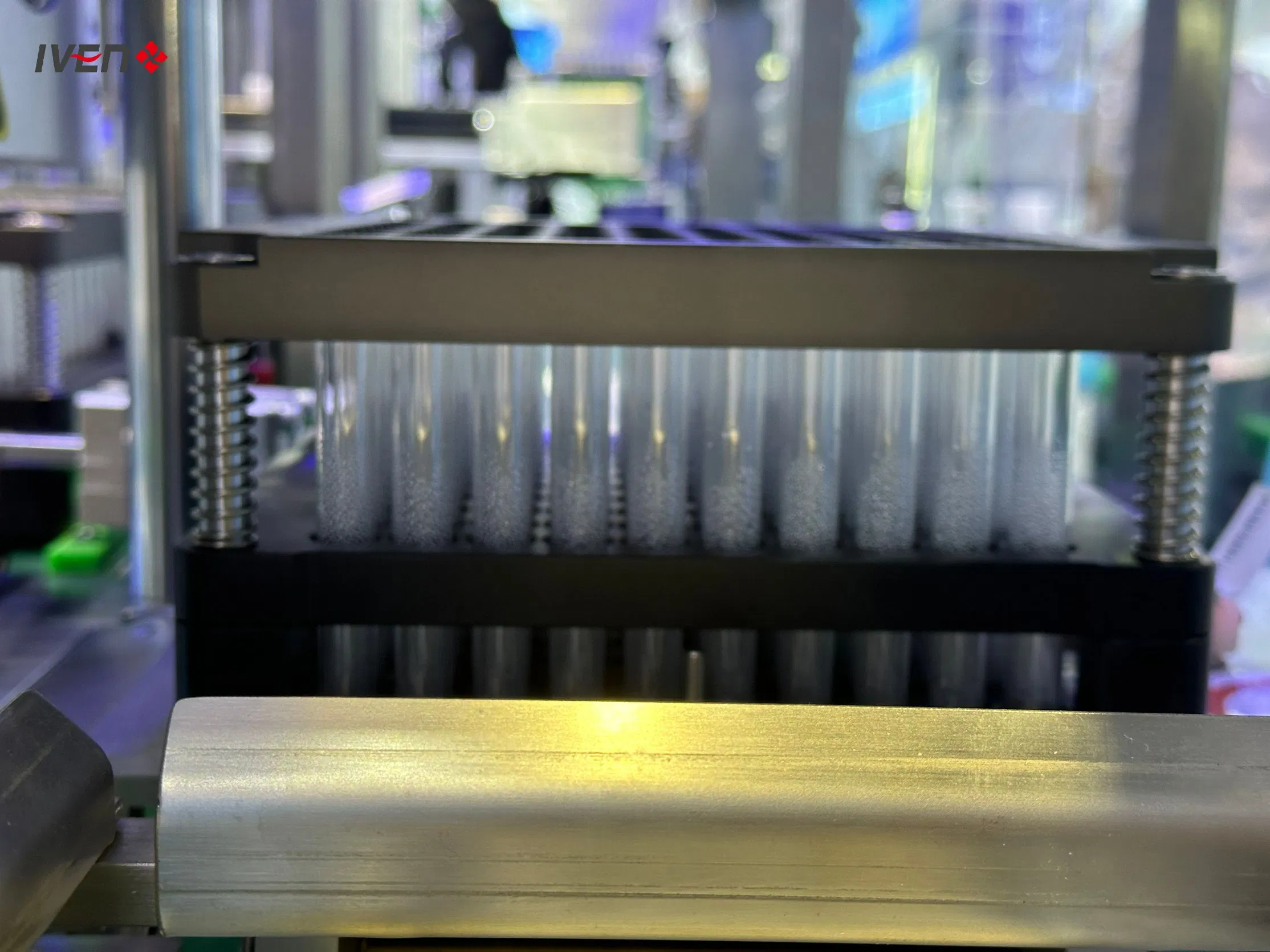

📸 Detailed Photos

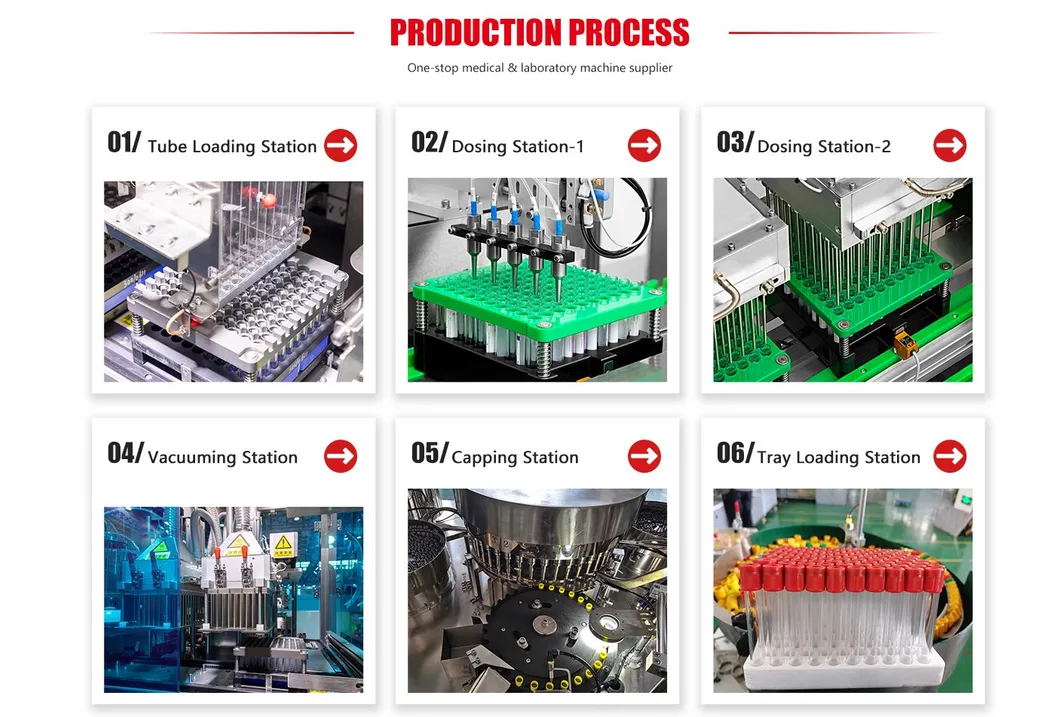

Process Flow Description:

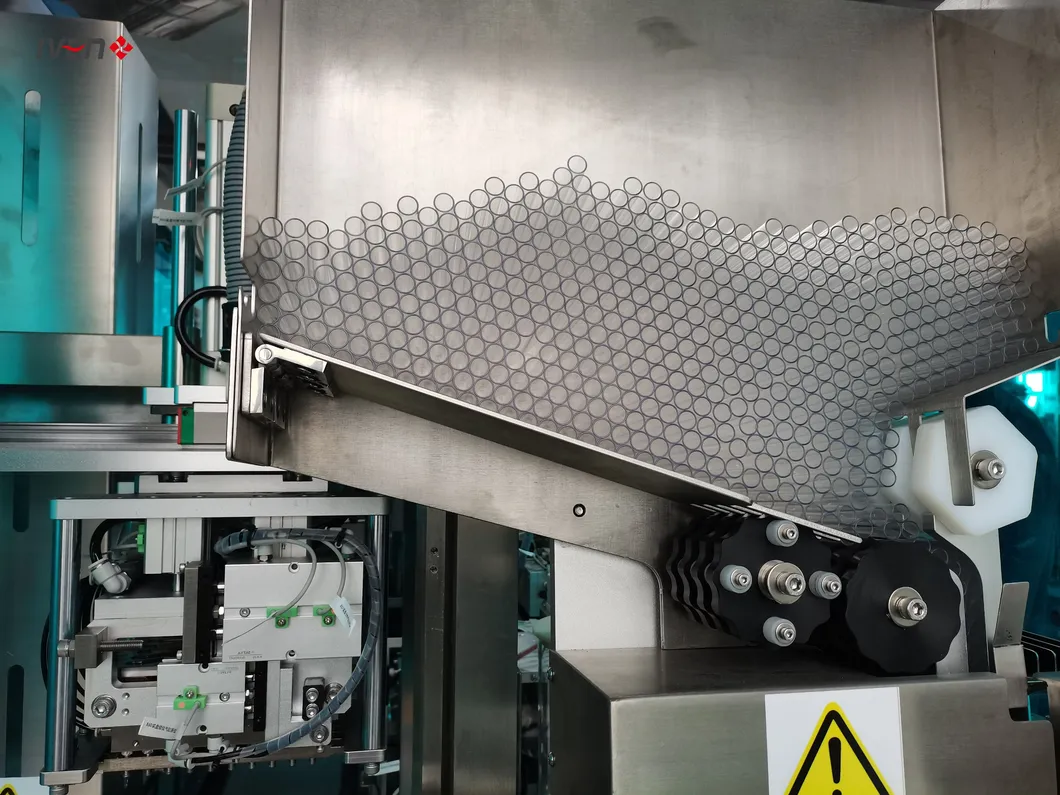

1. Manual test tube placement in hopper.
2. Flexible tube loading & Inverted tube detection.

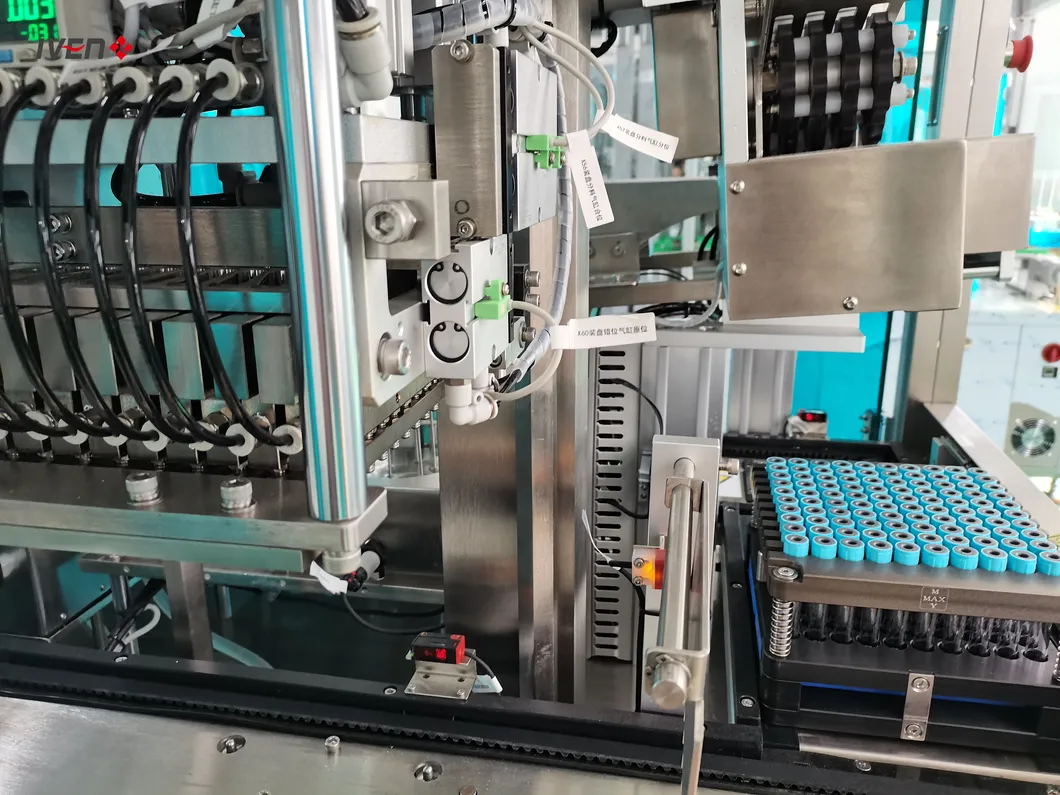

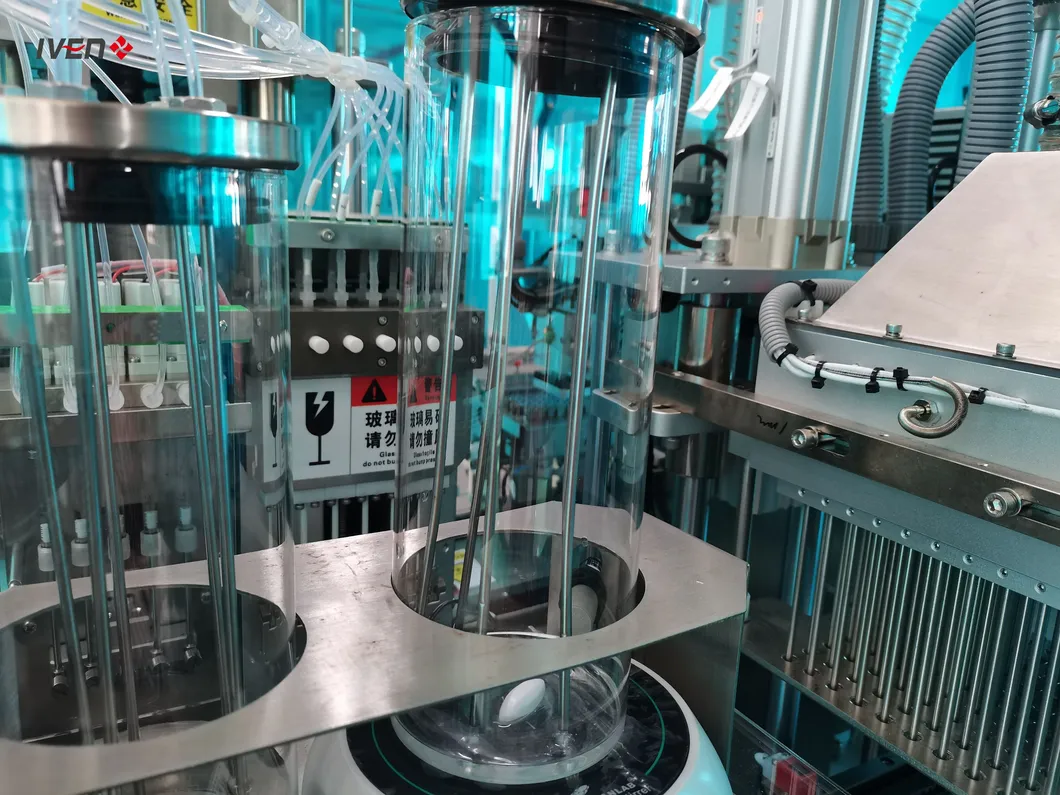

3. Liquid dosing and spraying (3 sets of systems).

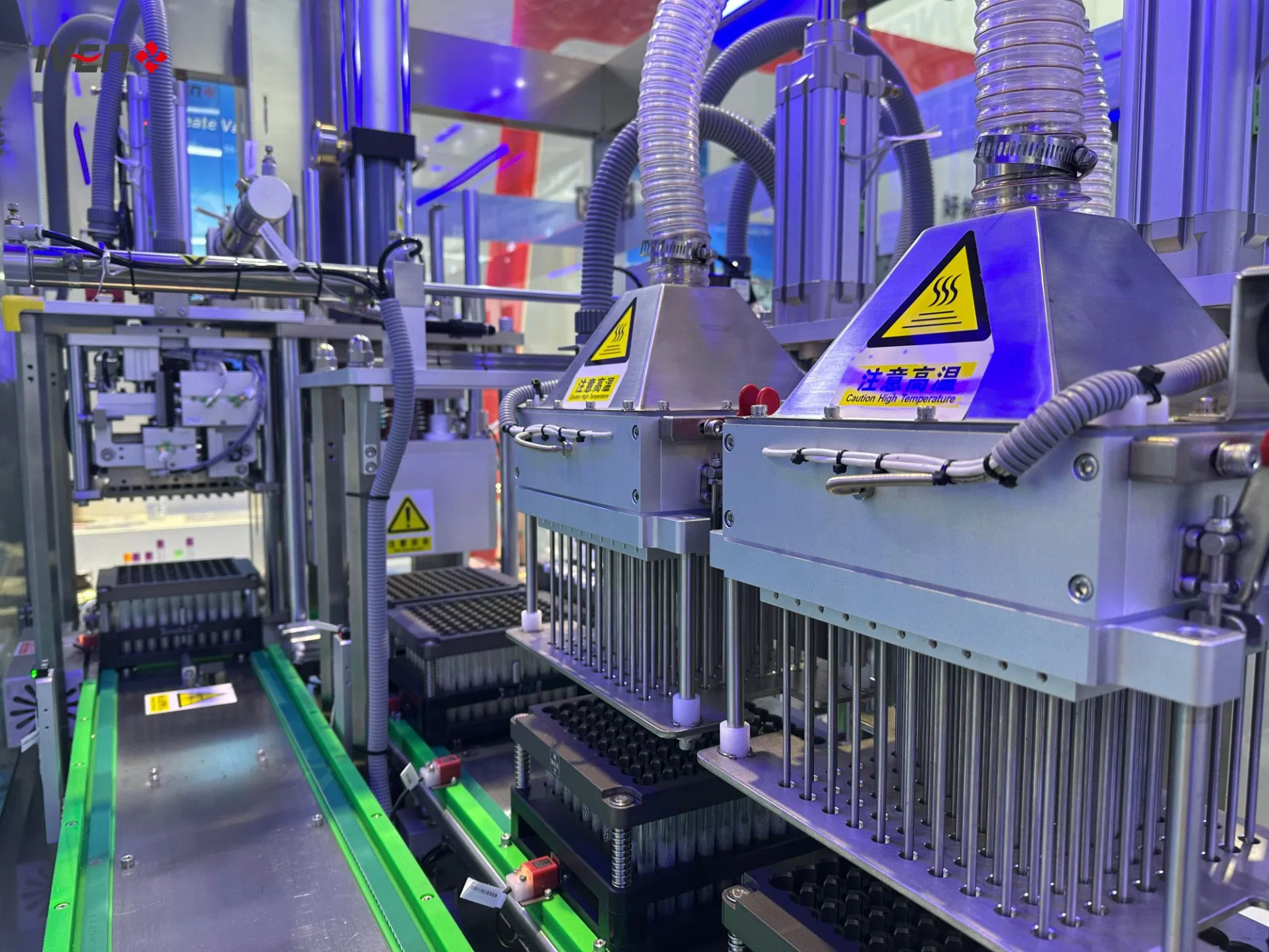

4. Drying (2 sets).

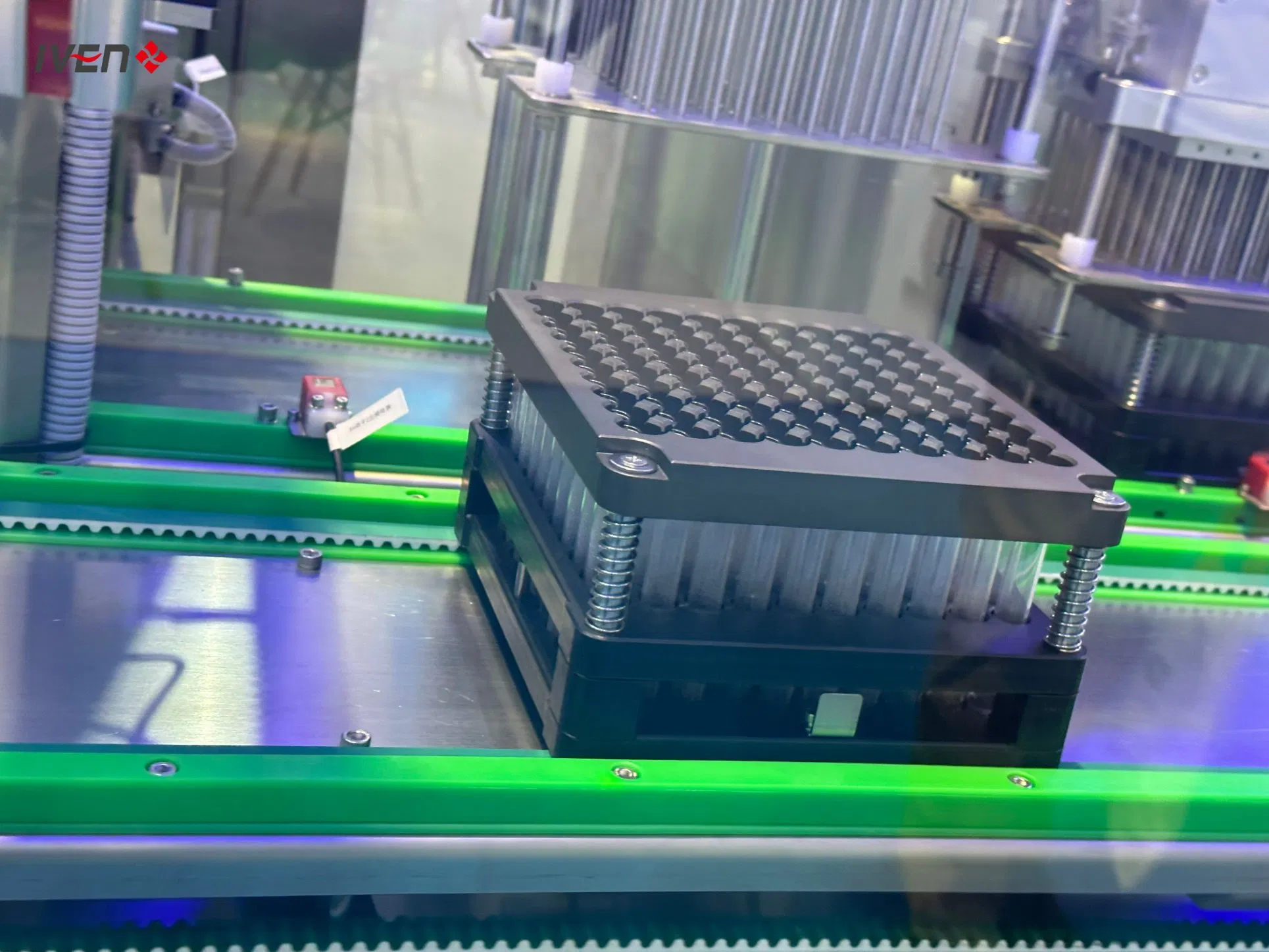

5. Capping, Vacuuming & Staggered loading tray.

📊 Technical Parameters

Name	Parameters
Applicable test tube specifications	Ø 13 × 75/100mm
Production capacity	~10000 pieces/hour
Liquid filling method and accuracy	Ceramic injection pumps (≤± 3%) / ILS glass infusion pump (≤± 5%)
Vacuum degree	≤± 3% (100 tubes, measuring range 4mL)
Power Supply	380V / 50HZ
Air Consumption	0.6-0.8Mpa, <500L/min
Dimensions	2400 * 1200 * 2000 mm

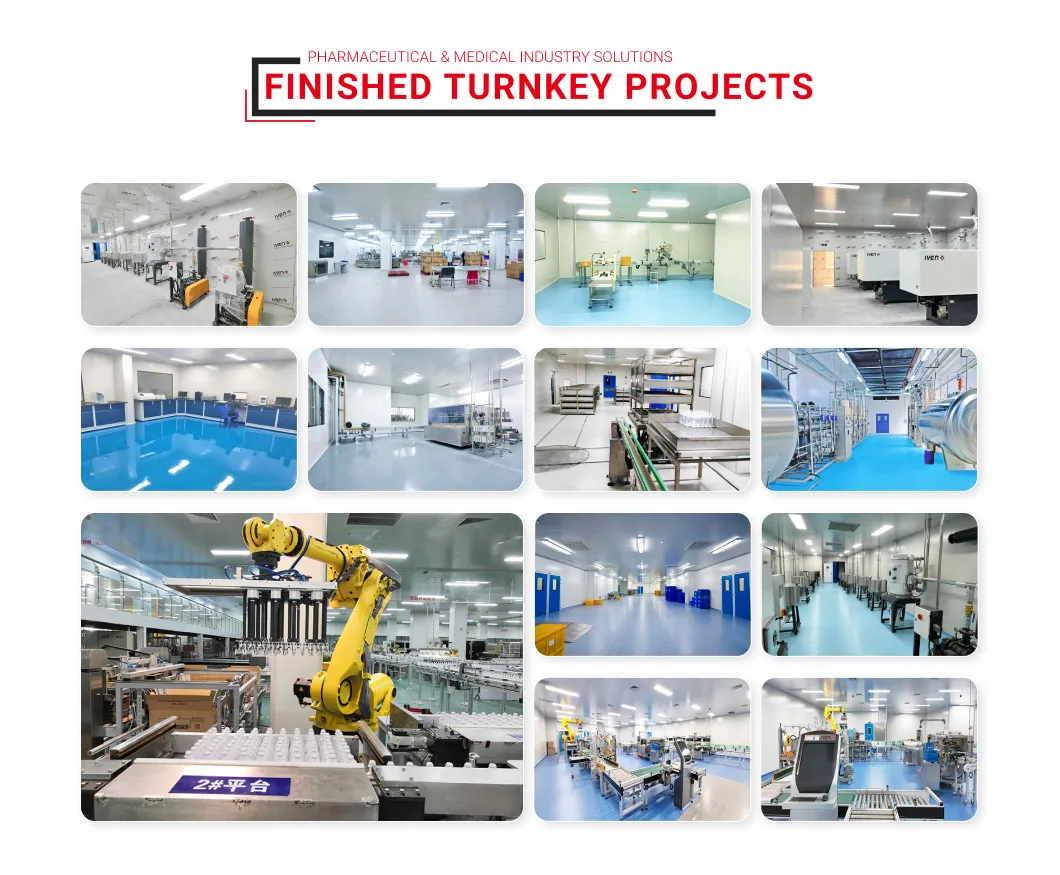

🏢 Production Facilities

❓ Frequently Asked Questions

What is the production capacity of this filling machine?

The machine features a high-speed production capacity of approximately 10,000 to 18,000 pieces per hour, depending on the specific configuration.

What test tube sizes are compatible?

The equipment is compatible with standard test tube specifications, including Ø 13 × 75/100mm and 16 × 100mm.

How many operators are required to run the production line?

Thanks to its high degree of automation and integrated design, the entire production line only requires one skilled operator to manage the process.

What filling precision does the machine offer?

The machine utilizes high-precision ceramic or glass injection pumps, achieving a filling accuracy of ≤± 3% to 6% depending on the dosing volume.

Does the machine include quality control features?

Yes, it features an online QC sampling station that allows operators to trigger sampling via the HMI without interrupting the automatic production cycle.

What are the power and air requirements?

The system requires a 380V/50Hz power supply and clean compressed air with a pressure of 0.6-0.8MPa and consumption under 500L/min.
