16/32/48/96 Samples DNA Extraction Automatic Nucleic Acid Purification System

Customization:	Available
Type:	IVD Instrument
Transport Package:	Carton Package

Send Inquiry

Product Description

Basic Specifications

Model No.

CHL-AP Series

Specification

400x520x50mm (28Kg)

Technology

Magnetic Bead Separation

HS Code

90278099

Capacity

10,000 Pieces/Year

Product Overview

16/32/48/96 Samples DNA Extraction Automatic Nucleic Acid Purification System

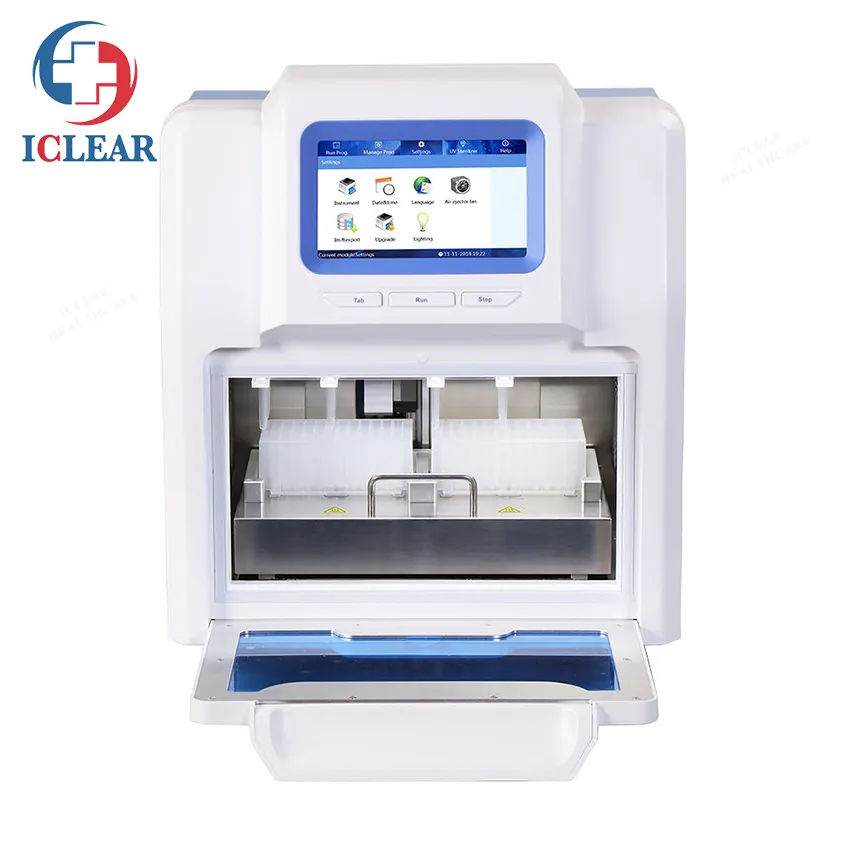

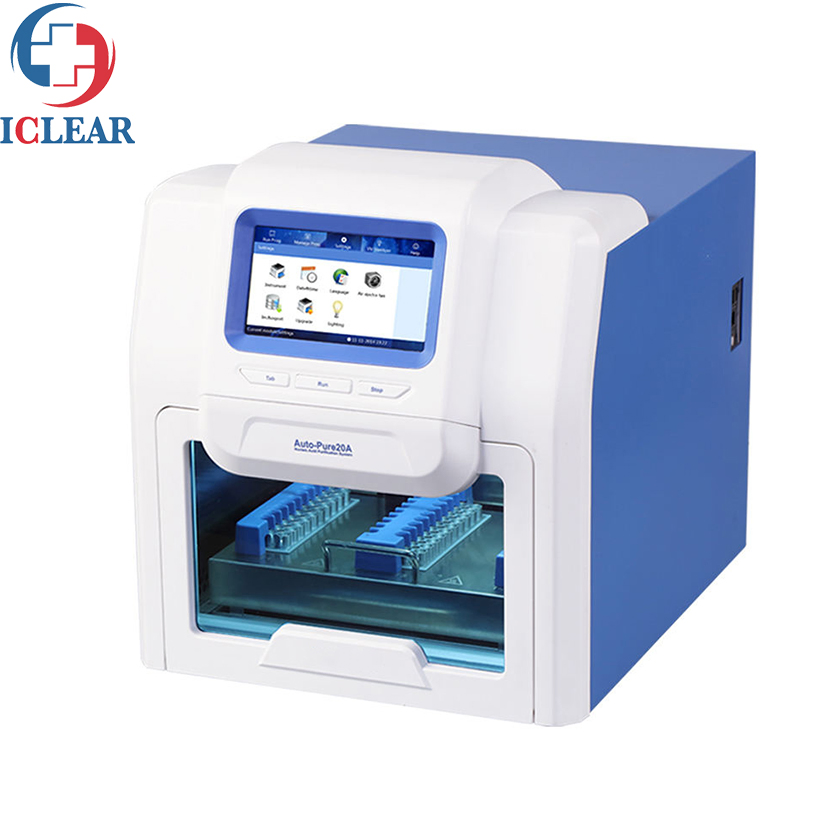

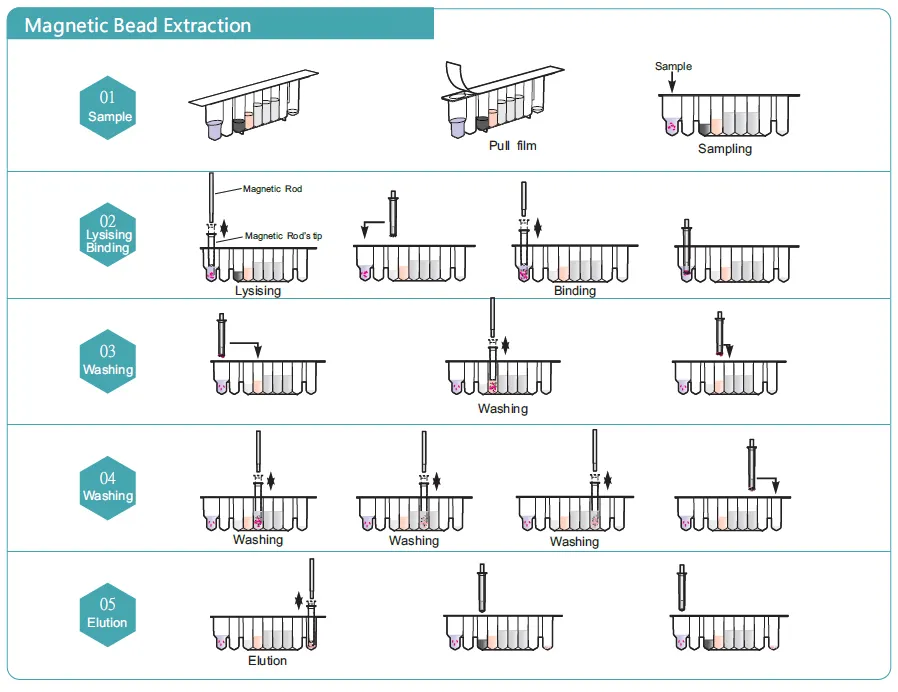

The Auto-Pure Series is a state-of-the-art benchtop device designed for efficient DNA and RNA purification. Utilizing advanced magnetic separation technology, it processes a wide variety of starting materials including blood, cultured cells, bacteria, tissues, cell-free body fluids, and plant samples. The system uses magnetic rods to automate the transfer of particles through binding, mixing, washing, and elution phases, significantly reducing hands-on time while ensuring high-quality molecular weight output.

Core Features

✔ Easy to use with a 7-inch integrated touch screen.

✔ Fast protocol: 15–40 minutes per cycle depending on method.

✔ Built-in UV lamp to prevent cross-contamination.

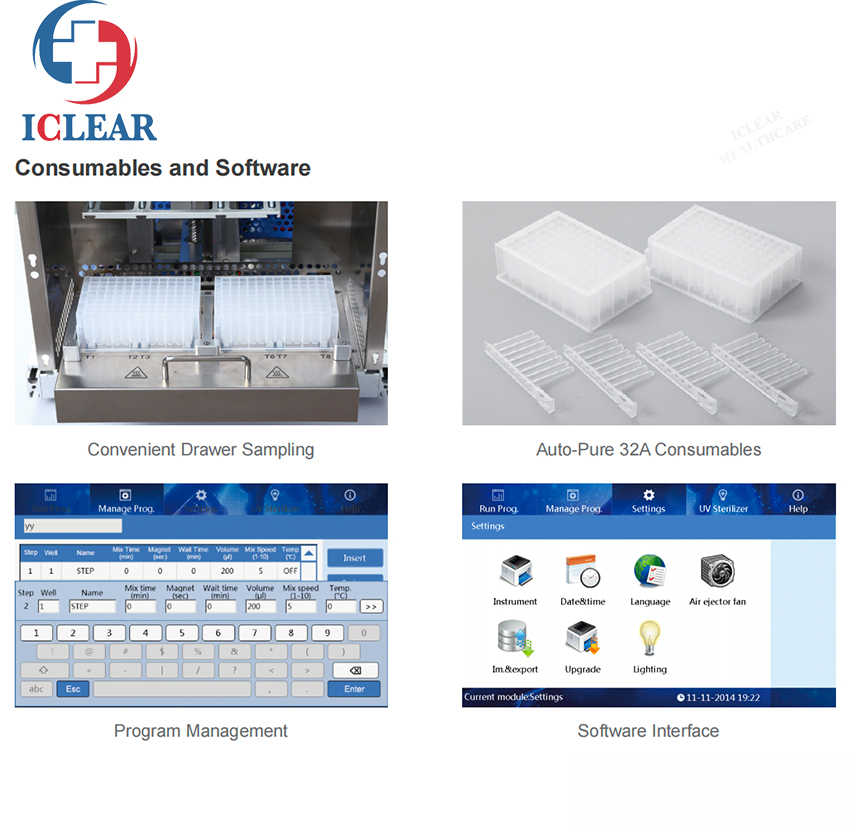

✔ Open system compatible with various magnetic bead kits.

✔ Drawer design for safety and ergonomic operation.

✔ High purity and excellent yield for downstream analysis.

✔ Supports volumes up to 1ml, 3ml, and 5ml for higher yields.

✔ Comprehensive storage for over 100 protocol programs.

Technical Parameters

Feature	Standard Mode	Large Volume Mode A	Large Volume Mode B
Throughput	1~32 Samples	1~20 Samples	1~20 Samples
Process Volume	50~1000ul	50~5000ul	50~3000ul
Collection Efficiency	>95%	>95%	>95%
Magnetic Rods	32	20	20
Heating Range	Up to 120°C	Up to 120°C	Up to 120°C

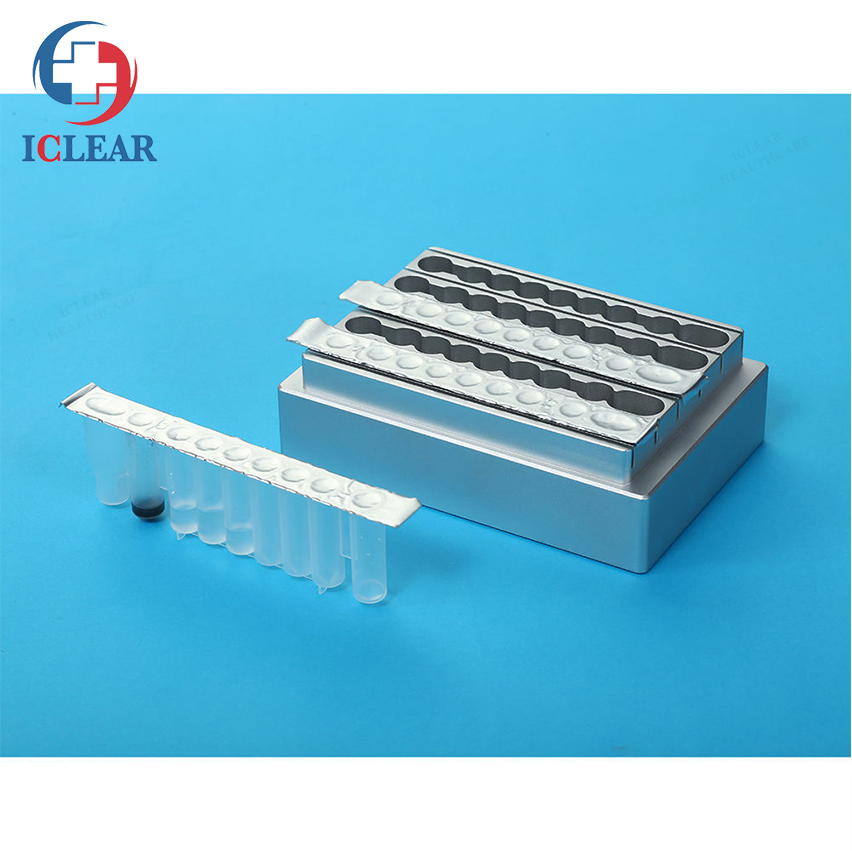

Plate Types	96 Deepwell Plate	5ml Tube Strip	3ml Tube Strip
Interface	4 Standard USB ports, Built-in SD card
Dimensions	400 × 520 × 450 mm (28Kg)

Manufacturing & Quality Control

Frequently Asked Questions

1. What types of samples can be processed by this system?

The system is highly versatile and can process DNA and RNA from blood, cultured cells, bacteria, various tissues, cell-free body fluids, and plant samples.

2. How does the system prevent cross-contamination?

Cross-contamination is prevented through a built-in UV lamp sterilization system and the use of specialized plastic consumables designed for single-use safety.

3. Does the system require a separate computer for operation?

No, the device is completely standalone. It features a built-in 7-inch color touch screen for all configurations, monitoring, and operation.

4. What is the typical extraction time for a single run?

The extraction protocol is very fast, typically taking between 15 to 40 minutes per cycle, depending on the sample type and specific method used.

5. Can the processing volume be adjusted for larger samples?

Yes, by changing the instrument configuration, customers can increase the sample processing volume to 3ml or 5ml to achieve higher yields of purified products.
