Advanced Patient Temperature Regulation and Monitoring System

Customization:	Available
Transport Package:	Box
Trademark:	Rayland

Send Inquiry

Product Description

Basic Info.

Model NO.	Body Temperature Management System
Origin	China
Production Capacity	10,000 Units

Product Description

Product Overview

A professional solution for medical institutions to physically heat and keep surgical/non-surgical patients warm, assisting in body temperature regulation with wireless monitoring and infusion fluid warming functions.

Specifications & Details
Color	Blue / Purple
Type	Reusable Device & Consumables
Screen Specification	10.1-inch tablet-level screen with high screen-to-body ratio
Operation Mode	Multifunctional touch screen panel + shuttle controller
Waterproof & Dustproof	Temperature blanket: IPX8; Aviation Lemo interface: IP68
Safety Protection	26 items of safety protection design
Patented Technology	14 items of patented full-process technologies
Safety Warnings	11 safety warnings (equipment failure, body overheating, etc.)
Measurement Feature	Accurate, continuous and non-invasive
Control Mode	Automatic, intelligent and closed-loop

Core Advantages: 7 Safety Guarantees

Hypothermia Prevention: Maintains stable body temperature with high-precision monitoring and intelligent heating.

Sealed Design: IPX8 blanket and IP68 interface prevent liquid inflow or electric leakage.

Scientific Control: Built-in sensors avoid low-temperature scalds and local overheating.

Protection Mechanism: Patented air guide channel prevents equipment overload and downtime.

Biocompatible Materials: Medical-grade, non-allergenic materials suit all patient types.

Precise Warnings: 11 safety warnings enable full-process risk prevention.

Humanized Design: Flexible composite blanket reduces pressure ulcers and enhances comfort.

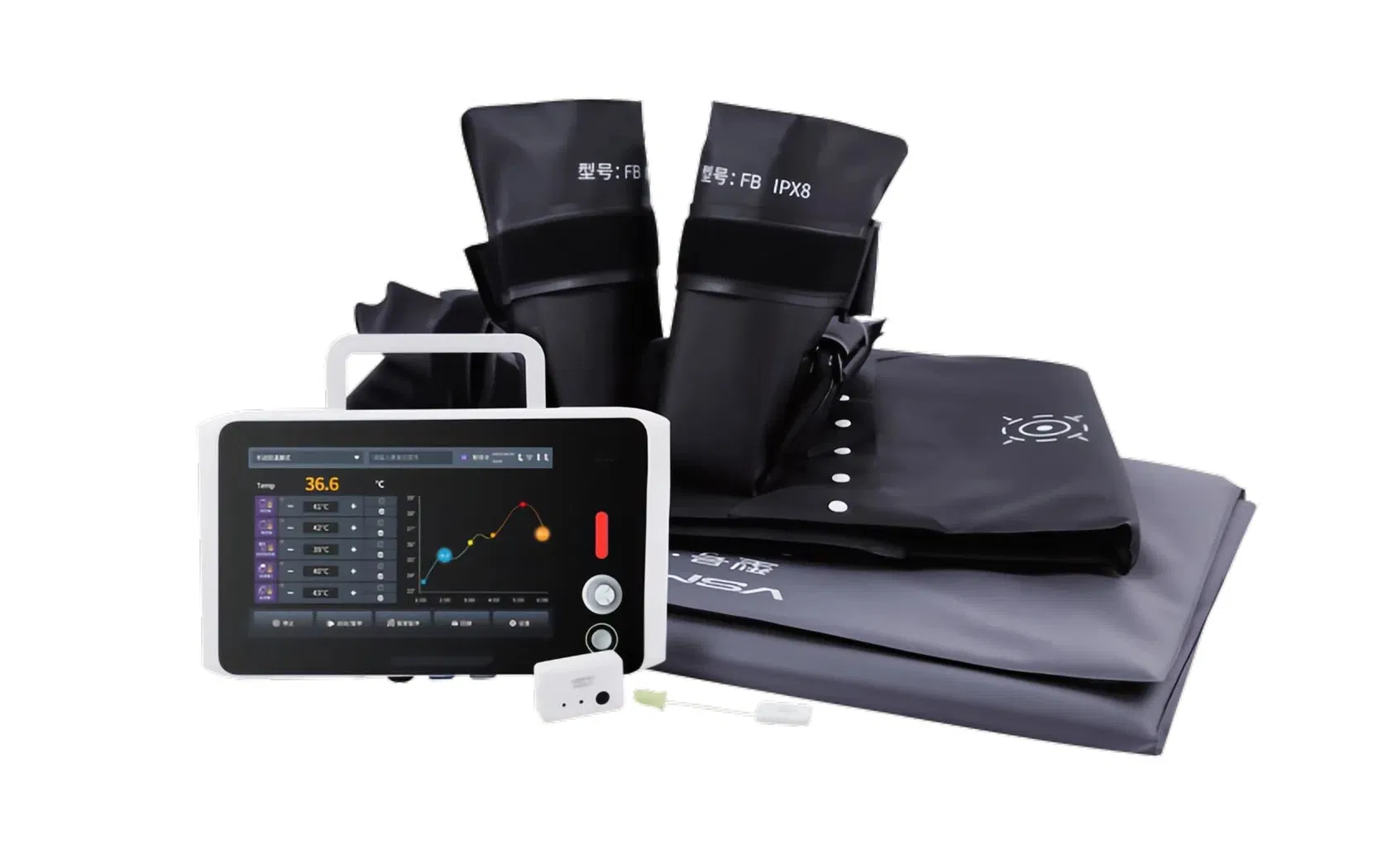

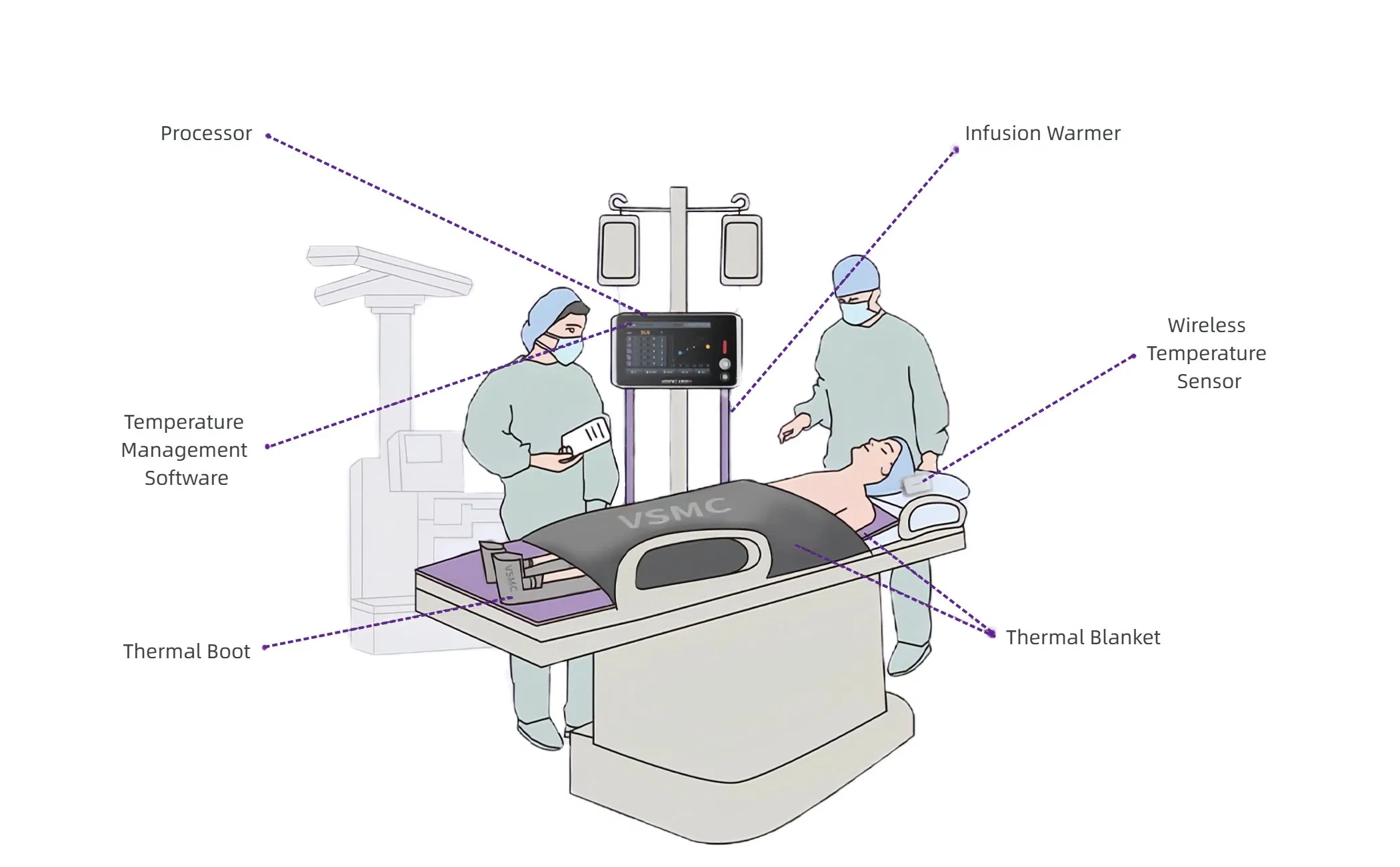

System Composition

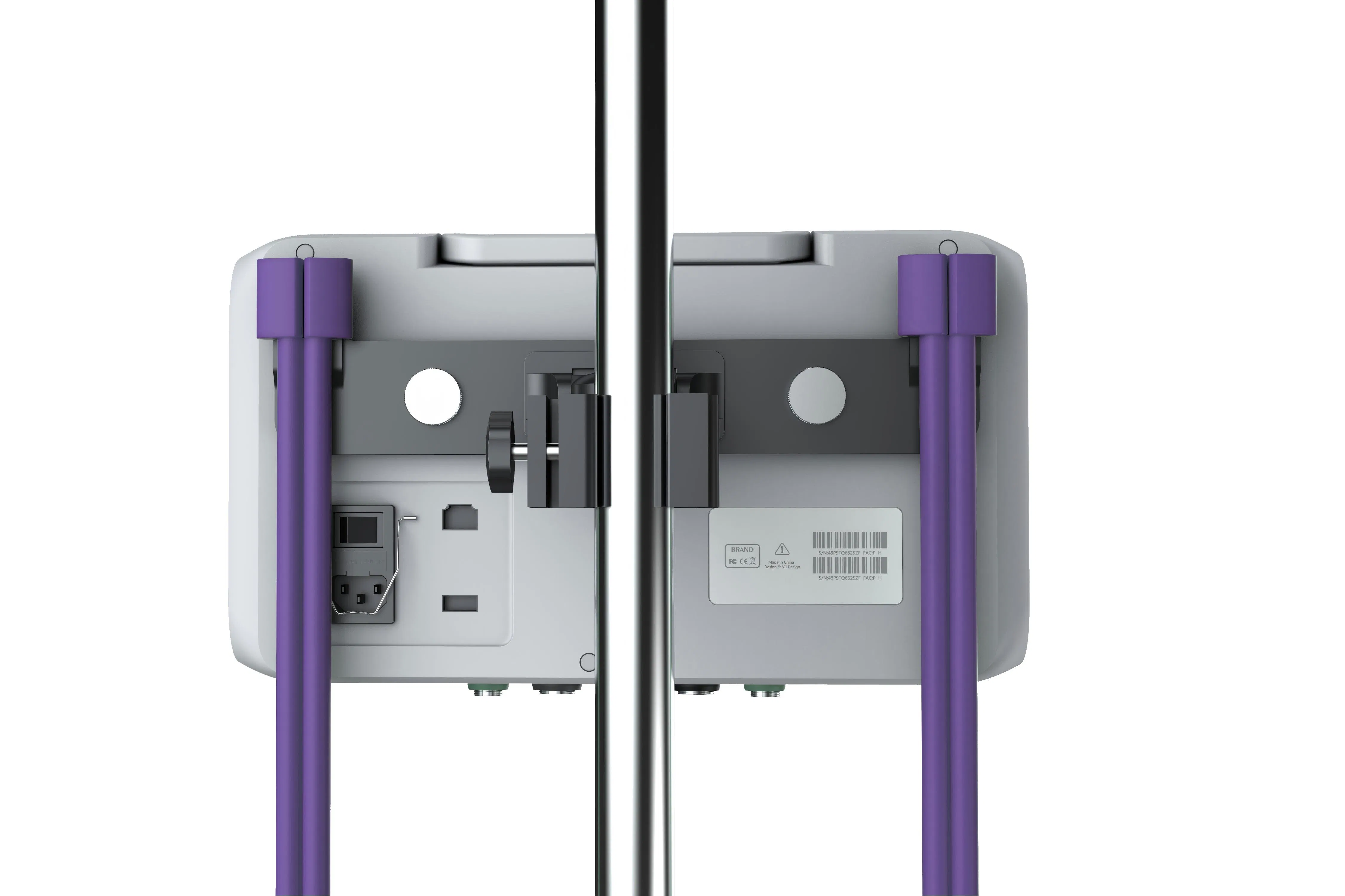

Core Unit: Temperature Control Host & Heating Tube.

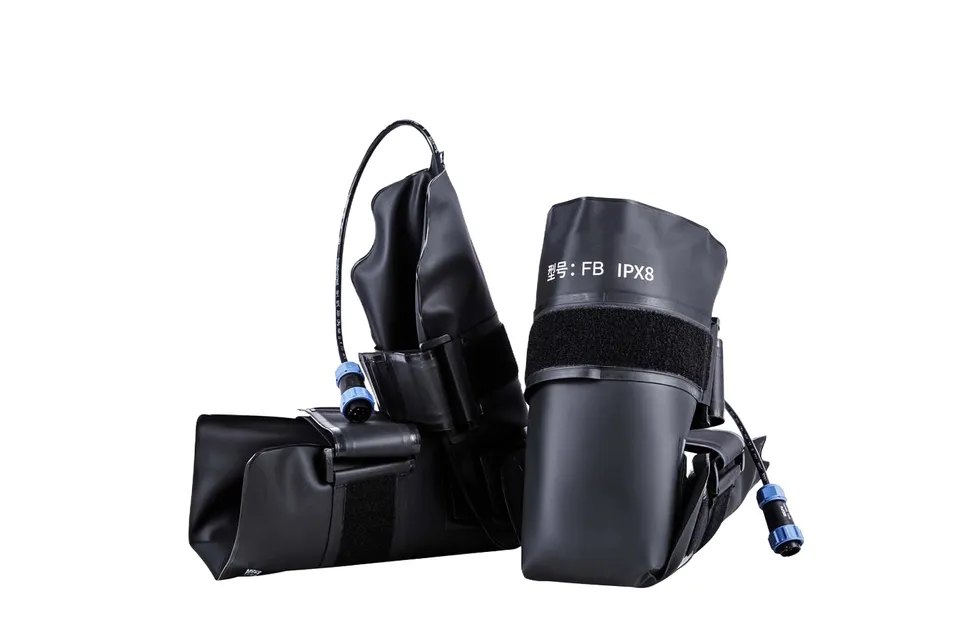

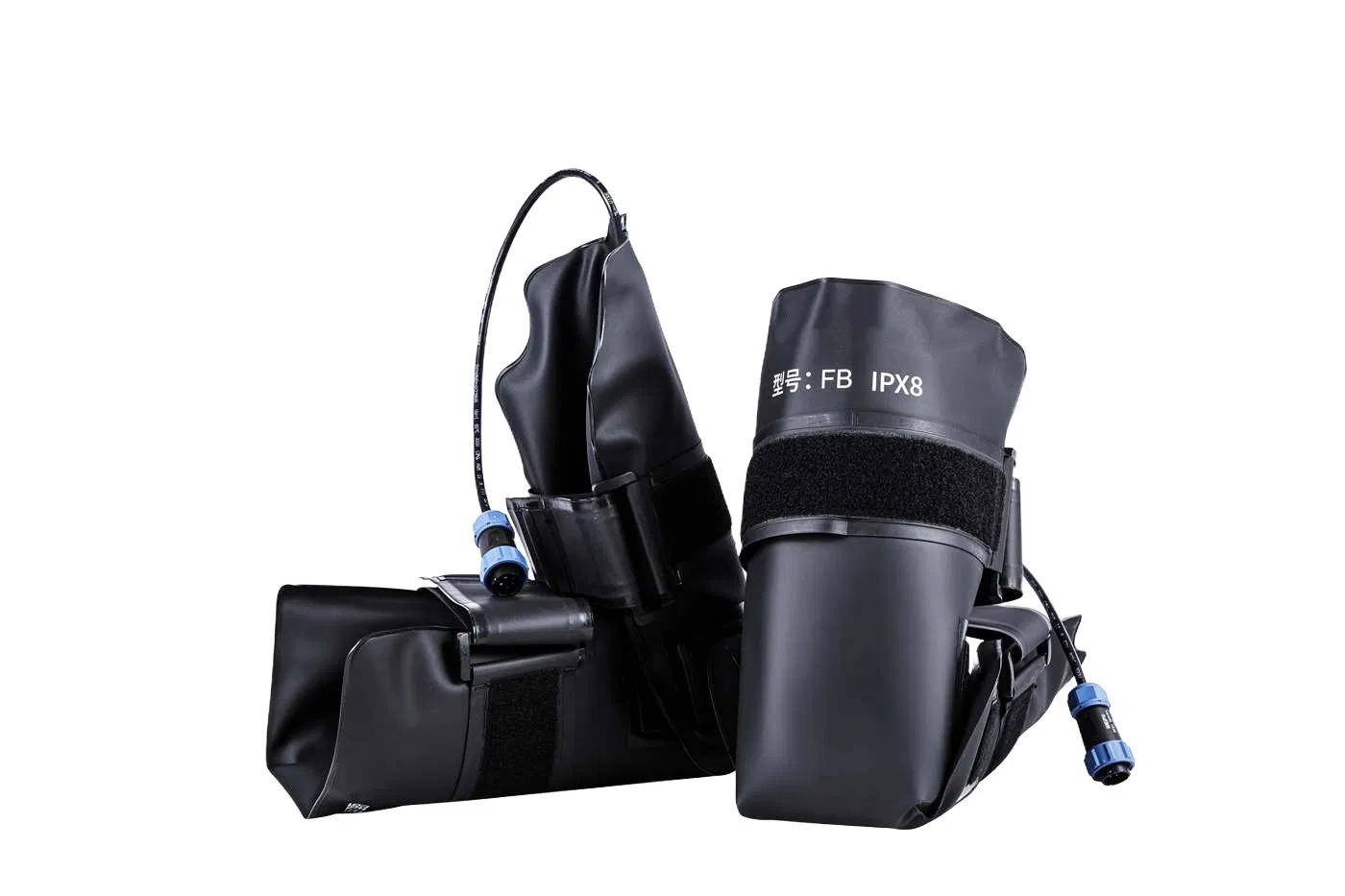

Optional Accessories: Heating Blanket, Cover Blanket, Foot Blanket, and Repeater.

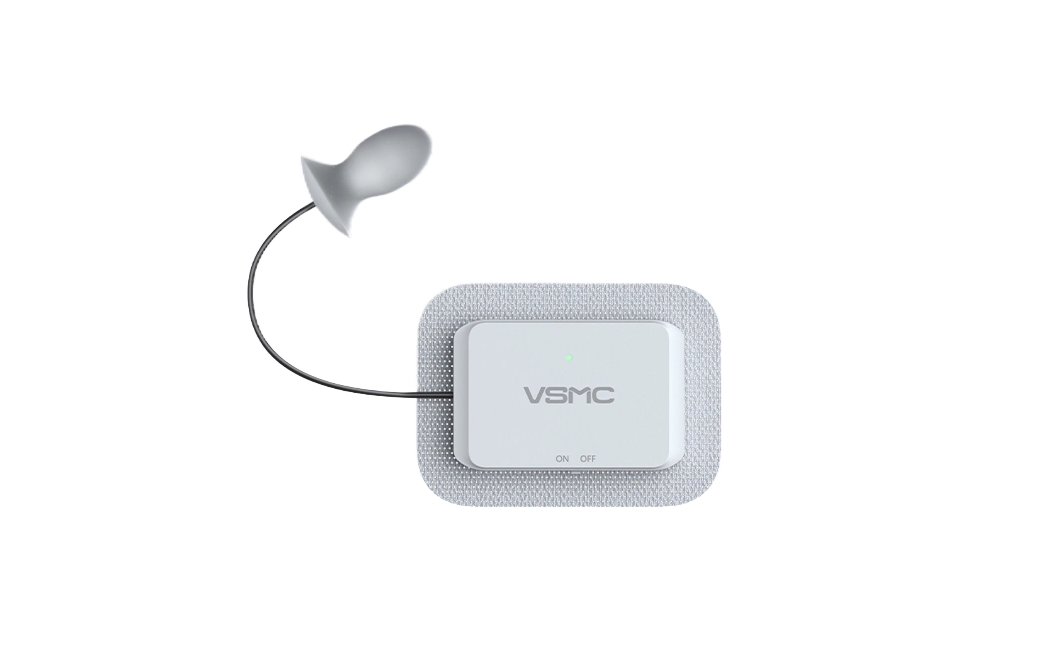

Monitoring: Wireless Continuous Temperature Monitoring Sensors (Disposable or Reusable).

Material & Key Performance

5-layer flexible composite material, soft and non-allergenic.
Heat sealing technology + aviation-grade LEMO interface.
In vitro infusion fluid warming (excludes chemotherapy/insulin).
Wireless real-time data collection and transmission.

Target Application Scenarios

Surgical: Perioperative heating and preservation.
Outpatient: Infusion and transfusion fluid warming.
General Ward: Daily temperature management.
Long-term Care: Reducing nursing burdens for bedridden patients.

Frequently Asked Questions

Q1: How does the system ensure patient safety during heating?

The system features 26 safety protection designs and 11 safety warnings, including an automatic heating stop mechanism and human body overheating alarms to prevent any risk of scalds.

Q2: Can the temperature monitoring sensor be used wirelessly?

Yes, the system supports wireless continuous temperature monitoring sensors for real-time body temperature data collection and transmission, ensuring non-invasive and accurate tracking.

Q3: Is the heating blanket waterproof?

The temperature blanket is rated IPX8 (edge heat-sealing technology), and the aviation LEMO interface is rated IP68, making it highly resistant to liquids and suitable for medical cleaning procedures.

Q4: Are the blankets and sensors disposable or reusable?

Both options are available. Reusable versions are cost-effective and durable, while disposable versions help avoid cross-infection in sterile scenarios.

Q5: Can the system warm infusion fluids?

Yes, the system includes an infusion fluid warming function for liquids in vitro. However, it is not intended for use with analgesics, chemotherapy drugs, or insulin.

Q6: What makes the blanket material suitable for long-term bedridden patients?

The blanket uses a 5-layer flexible composite material that is soft, non-allergenic, and designed to provide even heating, which helps in reducing the risk of pressure ulcers.
