| Model NO. | JM-100S | Application | Industry, School, Hospital, Lab |
|---|---|---|---|
| Certification | CE, ISO | Structure | Desktop |
| Material | Stainless Steel | Voltage | 220V |
| Key Selling Points | Easy to Operate | After-Sale Service | Online Technical Support |
| Production Capacity | 5000 | Origin | Henan |

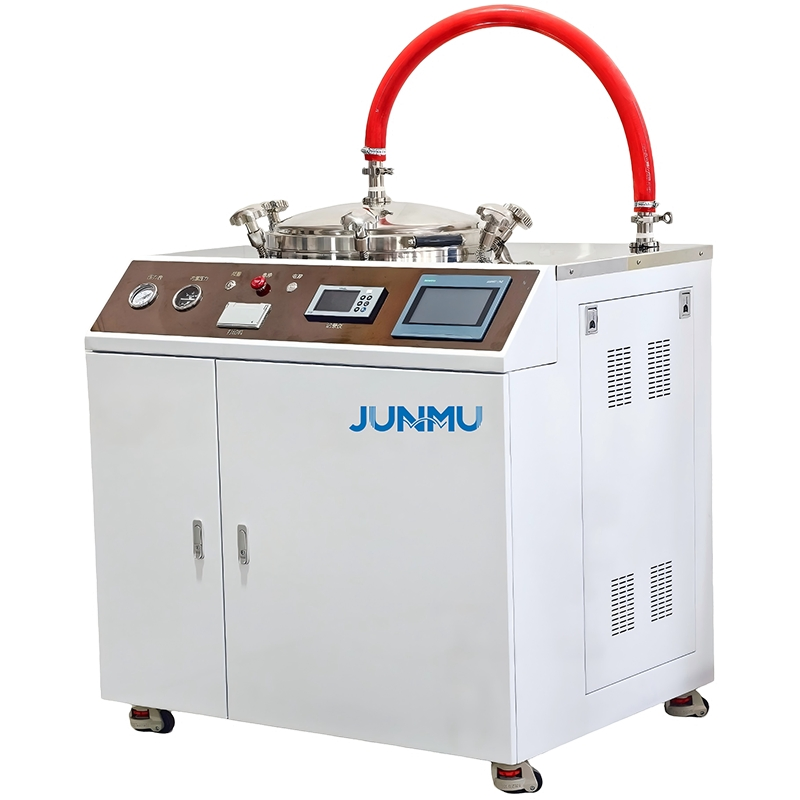

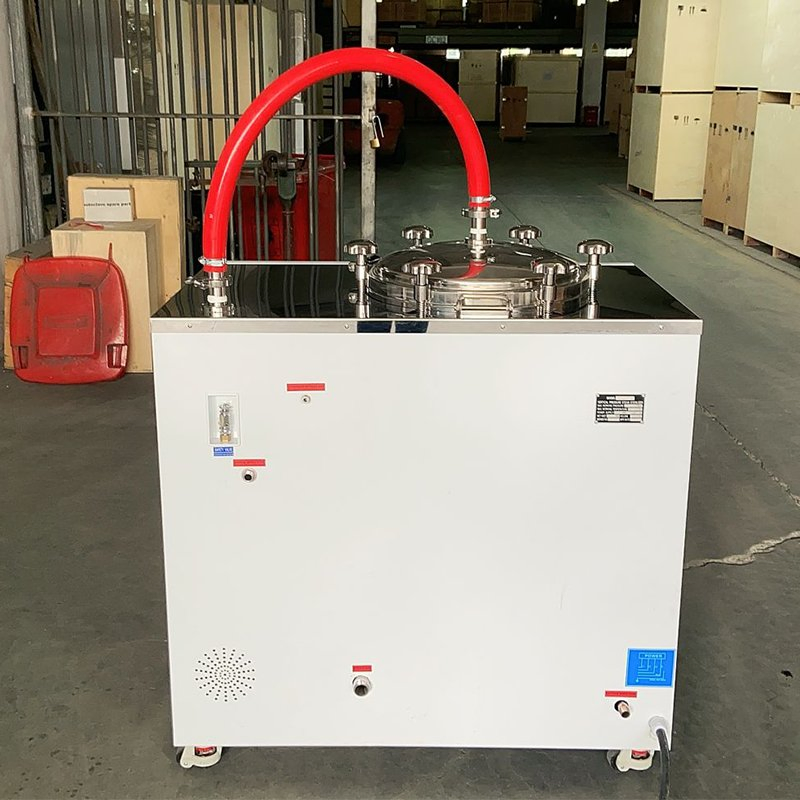

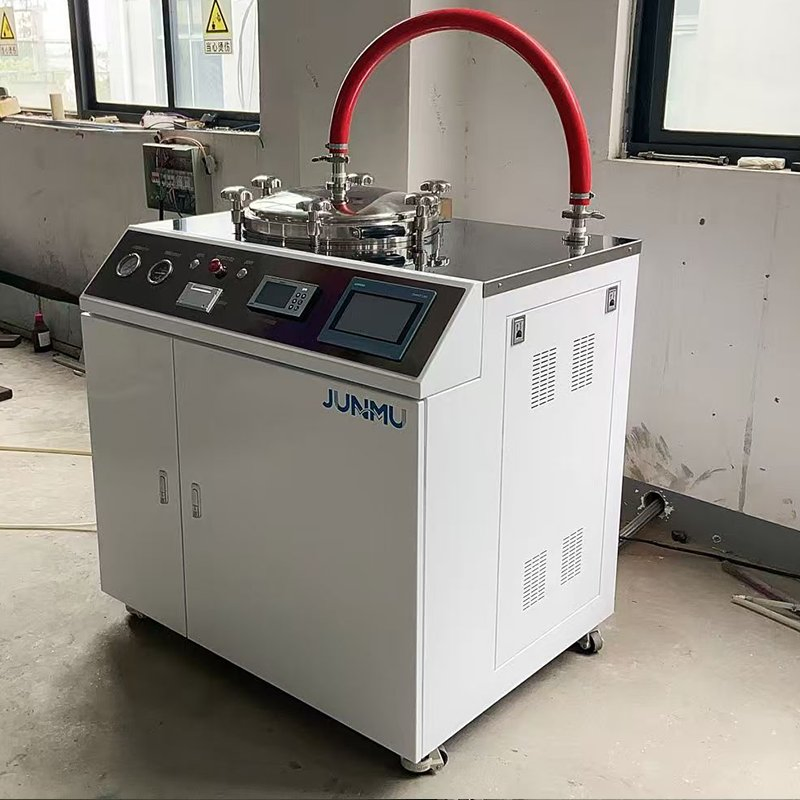

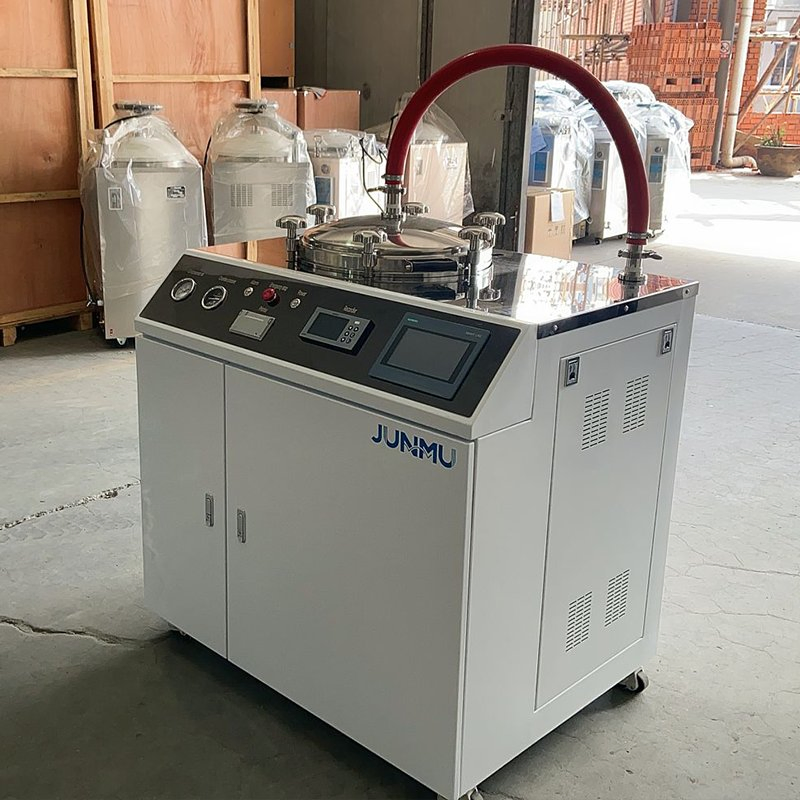

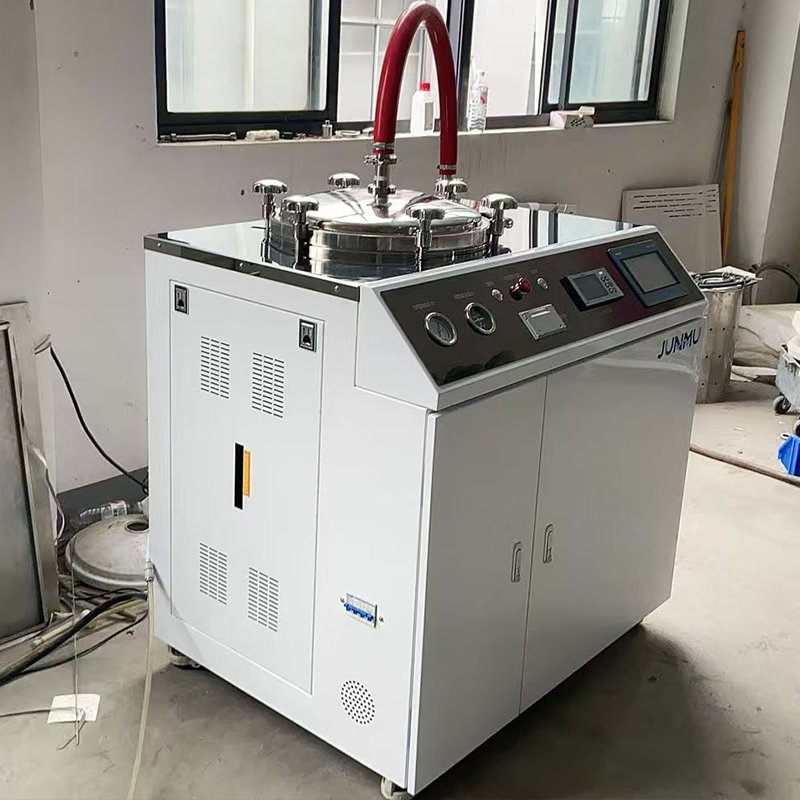

Vertical type water-bath sterilizer

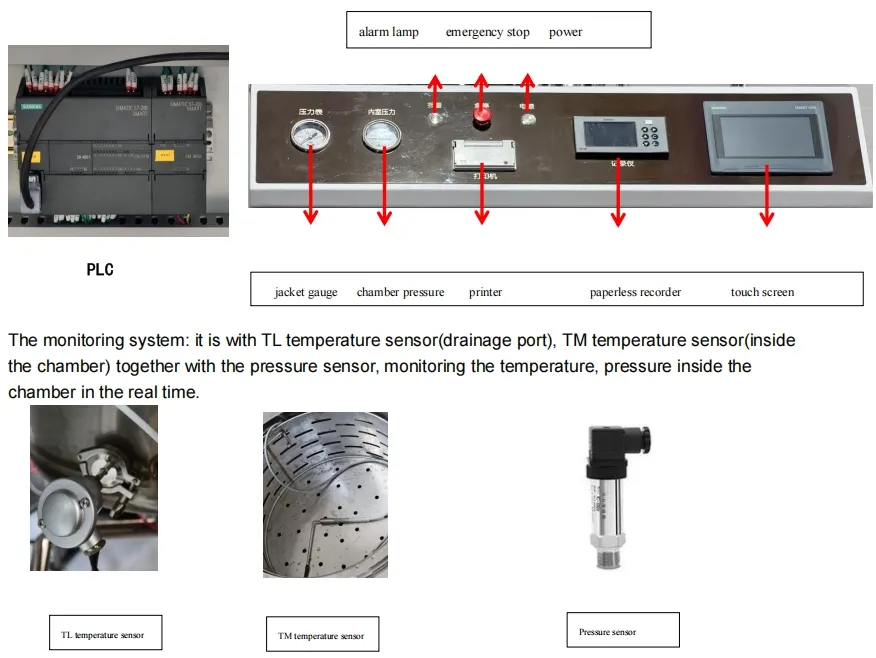

The water bath sterilizer is an advanced equipment for sterilizing bottled liquids by using the high-temperature water spraying on the objects for heating and sterilization, featuring uniform temperature, being stable and reliable performance. It is equipped with the computer control system that can automatically calculate the F0 value and monitor the sterilization process.
After the sterilization is completed, cooling water is introduced to cool the spraying water, and then the liquid bottles are indirectly force-cooled to avoid the deterioration of the liquid due to long time under high temperature, it prevents the bottles from exploding caused by direct cooling.
The heating tube begins to uniformly heat the pure water in the chamber. At the same time, the circulation pump conveys the hot water to the top spray plate to conduct comprehensive circulating spraying on the items, ensuring uniform heating. The pure water in the chamber can be reused on the same day, which saves energy and improves efficiency. This equipment is suitable for research, development and small-batch production of vials, ampoules, plastic bottles and plastic flexible bags.
| Parameter | Description |
|---|---|
| Model | JM-100S |
| Chamber capacity | 100L |
| Chamber size | ∅434×650mm |
| Outer dimension (L×W×H) | 787×1050×1165mm |
| Power | 380V, 50HZ / 14.5KW |
| Design pressure | 0.30Mpa |
| Maximum working pressure | 0.25Mpa |
| Design temperature | 150°C |
| Working temperature range | 60~134°C |
| Heat uniformity | ±1°C |
| Cycle time | ≤90min |
Pharmaceuticals (Vials/ampoules, oral liquid bottles, infusion bags, aluminum foil bags), Medical Consumables (Sterile device packaging), and Food Products (Aseptically sealed liquid foods, sauce packets).
Pharmaceutical GMP Cleanrooms for terminal sterilization, Packaging Material Factories, Laboratories/Research Institutions for small-batch testing, and Food Aseptic Production Lines.
Professional Sales Support: Quick competitive offers, assistance with direct purchasing, project and bid tenders, and full technical documentation.
On-time Delivery: Strict production scheduling, inspection reports before packing, and immediate shipping notices.
After-Sales Commitment: 12 months warranty upon arrival, lifetime availability of spare parts, and 24-hour complaint response.
Warranty: 1 year international standard warranty covering repairs or replacement for quality-related malfunctions.

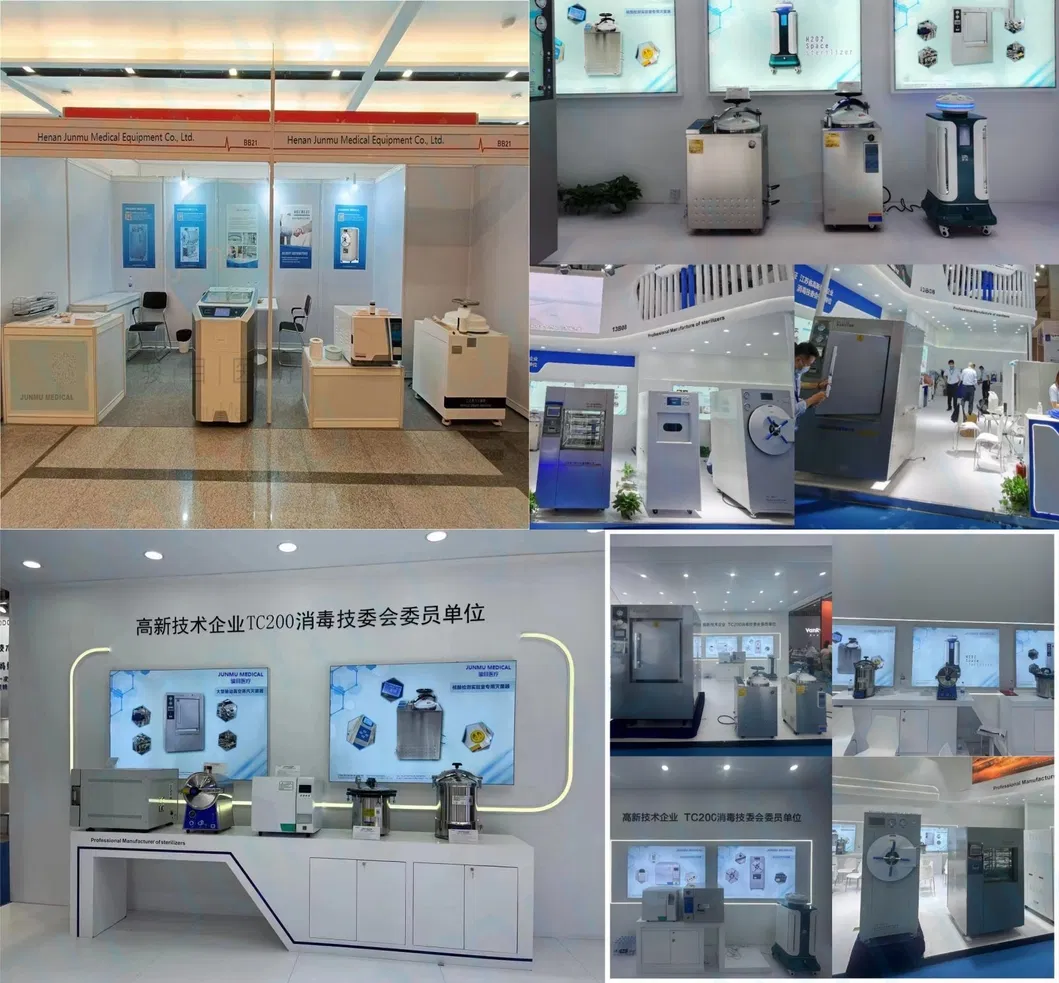

Thailand Exhibition Showcase
Live demonstrations of efficient and reliable sterilization technologies. Our exhibits cover surgical instruments, fabrics, dressings, glassware, and media for medical, pharmaceutical, and research sectors.
